WM 1001Z2 Assembling The Engine (Except Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

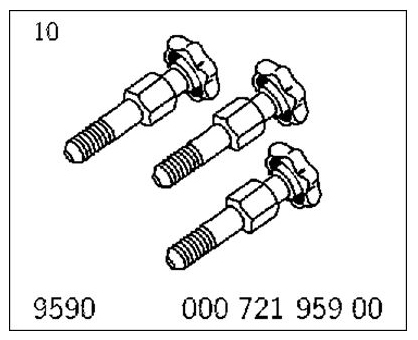

| mounting parts | Special tool | 9590 | ||

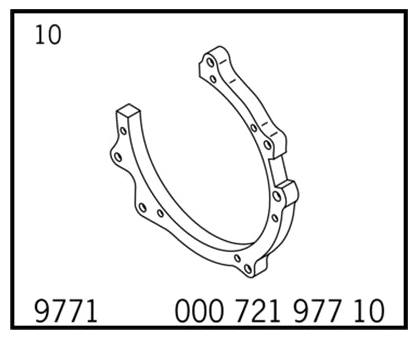

| engine adapter | Special tool | 9771 | ||

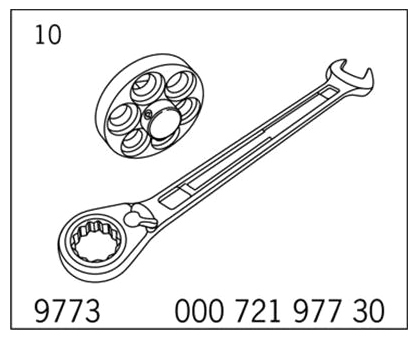

| turning device | Special tool | 9773 | ||

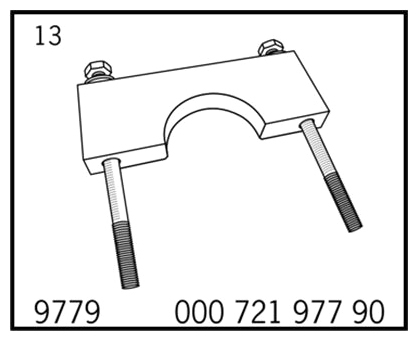

| holding bridge | Special tool | 9779 | ||

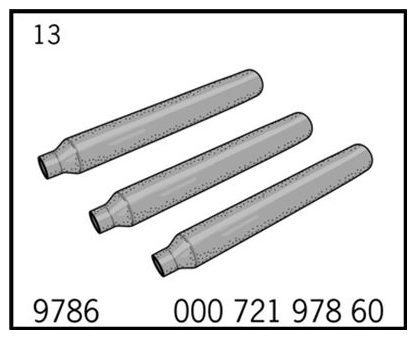

| protective sleeve | Special tool | 9786 | ||

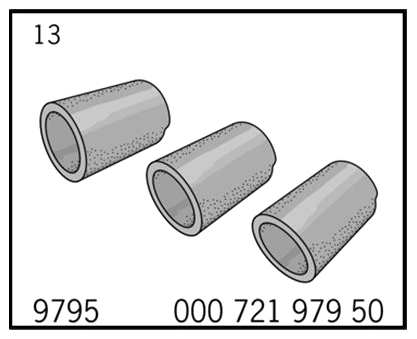

| assembly aid | Special tool | 9795 | ||

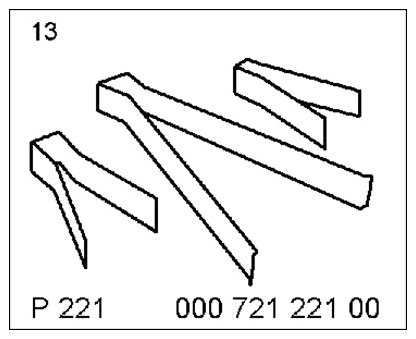

| restraining straps | Special tool | P221 |
TECHNICAL VALUES DESCRIPTION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Bearing pin securing tensioning rail for oil-pump drive chain | M6, replace O-ring | Tightening torque | 10 Nm (7.5 ft. lb.) | ||
| Bearing pins securing guide and tensioning rails | M6, replace O-rings | Tightening torque | 10 Nm (7.5 ft. lb.) | ||
| Through-bolt screws, Step 1 | Replace sealing washers | Initial tightening | 5 Nm (3.5 ftlb) | ||
| Through-bolt screws, Step 2 | Initial tightening | 12 Nm (9 ft. lb.) | |||
| Through-bolt screws, Step 3 | Tightening torque | 15 Nm (11 ft. lb.) | |||
| Through-bolt screws, Step 4 | Torque angle | 75° | |||
| Through-bolt screws, Step 5 | Final tightening - torque angle | 75° | |||
| Supporting mount screws | External M8 x 35 Torx | Initial tightening | 5 Nm | ||
| Supporting mount screws | Torque angle | 70° | |||
| Cross bolt connection | External Torx screw, M8 x 120 | Tightening torque | 33 Nm (24 ft. lb.) | ||
| Cross bolt connection | External Torx screw, M6 | Tightening torque | 13 Nm (9.5 ftlb) | ||
| Oil guide to crankcase | M6 x 20 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Coolant pipe mounting | External Torx screw, M6 x 12 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Solenoid hydraulic valve | M5 x 12 | Tightening torque | 8 Nm (6 ft. lb.) | ||
| Coolant pipe to cylinder head (intake side) | External Torx screw, M6 x 12 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Threaded bolt for engine carrier | Bond with Loctite 243 | Tightening torque | 5 Nm (3.5 ft. lb.) | ||
| Connecting tube on coolant regulator housing | External Torx screw, M6 x 25, tighten first | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Coolant regulator housing to cylinder head | External Torx screw, M6 x 50 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Coolant pump bracket and unit carrier | External Torx screw, M8 x 35, M8 x 50, M8 x 70 | Tightening torque | 33 Nm (24 ft. lb.) | ||
| Coolant pump bracket | M8 x 25 | Tightening torque | 23 Nm (17 ft. lb.) | ||
| Coolant pump bracket | M6 x 20 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Vibration damper to crankshaft flange | External Torx screw, M8 x 1 x 25 | Tightening torque | 60 Nm (44 ft. lb.) | ||
| Heat shield | External Torx screw, M6 x 12 | Tightening torque | 10 Nm (7.5 ft. lb.) | ||
| Coolant pipe to coolant regulator housing | External Torx screw, M6 x 12 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Holder for rear silencer to cylinder head | External Torx screw, M8 x 20 | Tightening torque | 23 Nm (17 ft. lb.) | ||
| Exhaust manifold to cylinder head | External Torx, M8 x 21 | Tightening torque | 23 Nm (17 ft. lb.) | ||
| Coolant distributor to crankcase | External Torx screw, M6 x 25 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Fuel collection pipe | External Torx screw, M6 x 30 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Bracket for oil/water heat exchanger | External Torx screw, M6 x 45 and M6 x 60 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil/water heat exchanger | Internal Torx, M6 x 20 | Contact force | 13 Nm (9.5 ft. lb.) | ||
| Oil separator to bracket | External Torx screw, M6 x 25 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Union nut on fuel lines | OKS 1700 lubricant | Tightening torque | 20 Nm (15 ft. lb.) | ||
| Holder for fuel lines | External Torx screw, M6 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Coolant regulator housing cover and intake tube | External Torx screw, M6 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Cable duct to cylinder head | External Torx, M8 x 16 | Tightening torque | 23 Nm (17 ft. lb.) | ||
| Union nut on fuel connection line | OKS 1700 lubricant | Tightening torque | 20 Nm (15 ft. lb.) | ||
| Holder for fuel connection line | External Torx screw, M6 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil filler neck in crankcase | External Torx screw, M6 x 20 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Intake-air distributor to cylinder head | External Torx screw, M6 x 35 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Cable duct to intake-air distributor | External Torx screw, M6 x 12 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Oil filler neck to holder | External Torx screw, M6 x 12 | Tightening torque | 13 Nm (9.5 ft. lb.) | ||
| Hydraulic pump pulley | External Torx screw, M8 x 12 | Tightening torque | 23 Nm (17 ft. lb.) |
