Subsequent Work
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.
Information
- Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
Information
Always replace gaskets and O-rings.
- Grease all gaskets (except for the cooling system) with Kluber Syntheso Glep (Part No. 000.043.204.68).
Information
Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
Fit all threaded connections according to instructions in the document → 1X00IN TIGHTENING TORQUES FOR ENGINE MA170 AND MA170 S .

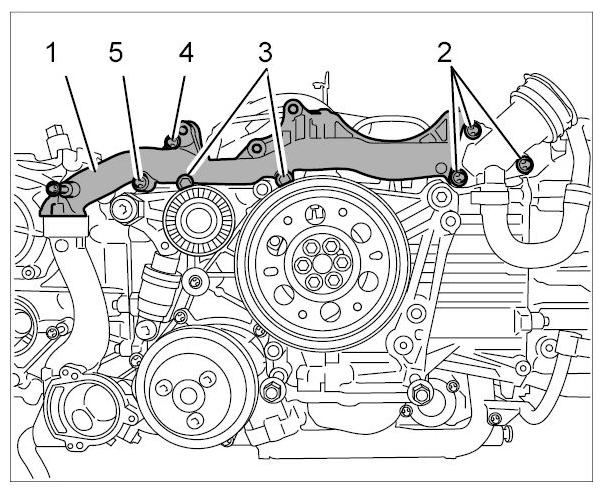

- Install upper coolant distributor housing (unit carrier) -1-
.
→ 195919 REMOVING AND INSTALLING UNIT CARRIER (COOLANT DISTRIBUTOR HOUSING) - TURBO .
- 1.1. Fit coolant connection piece using three external Torx screws (E12, M8 x 70) -2- .
- 1.2. Fit unit carrier using two external Torx screws (E12): one M8 x 50 screw -3 (right)- and one M6 x 35 screw -4- .

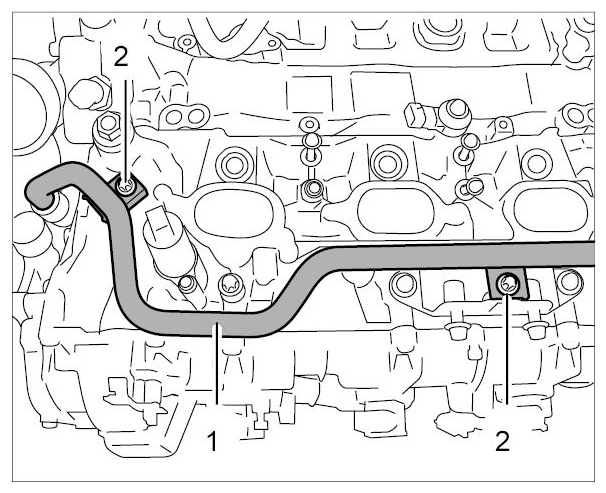

- 1.3. Secure coolant pipe for the unit carrier -1-
to the cylinder head using two external Torx screws (E10, M6 x 12) -2-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

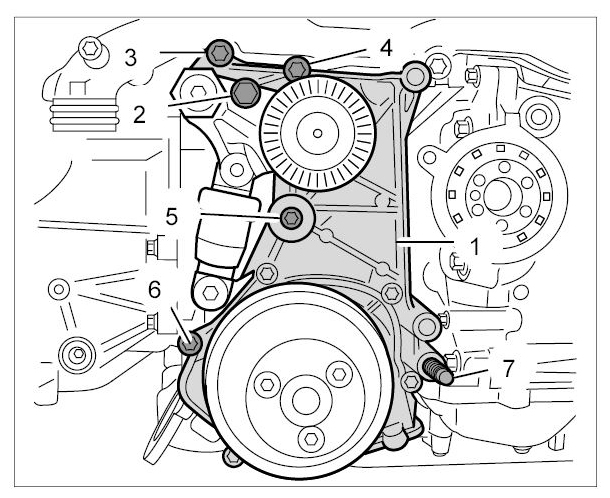

- Fit bracket for coolant pump -1-
with new O-rings -2 + 3-
.
- 2.1. Fit one M10 threaded bolt (engine carrier mounting) -7-
(using two M10 lock nuts).
→ Tightening torque: 5 Nm (3.5 ft. lb.)
- 2.2. Fit the bracket using four external Torx screws: one M8 x 70 (E12) -3- , one M8 x 50 (E12) -4- , one M6 x 20 (E10) -5- and one M8 x 25 (E12) -6- .
- 2.1. Fit one M10 threaded bolt (engine carrier mounting) -7-
(using two M10 lock nuts).
- Install housing for coolant regulator.
→ 195519 REMOVING AND INSTALLING HOUSING FOR COOLANT REGULATOR .
- 3.1. Fit housing on the unit carrier and secure to the connecting tube for the coolant pump using three external Torx screws (E10, M6 x 25).
- 3.2. Fit one external Torx screw (E10) M6 x 50.
- 3.3. Tighten screws one at a time.→ Tightening torque: 13 Nm (9.5 ft. lb.)
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Tighten fastening screws on coolant pump bracket and unit carrier.
- 4.1. → Tightening torque: 33 Nm (24 ft. lb.)
- 4.2. → Tightening torque: 23 Nm (17 ft. lb.)
Coolant pump bracket
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 4.3. Turn the belt tensioner clockwise as far as it will go at the hexagon (a/f 30). Remove screw from the crankcase bore and allow the belt tensioner to slide back to normal position.
- Fit coolant guide -1-
.
- 5.1. Check molded seals and replace if necessary.
- 5.2. Fit and tighten six external Torx screws (E10, M6 x 25) -2- .
- Fit vibration damper. Secure with a locating pin (8 mm) for countering purposes.
→ 137519 REMOVING AND INSTALLING VIBRATION DAMPER - TURBO .
- 6.1. Fit and tighten six external Torx screws (E12) M8 x 1 x 25 (fine thread).
→ Tightening torque: 60 Nm (44 ft. lb.)
- 6.1. Fit and tighten six external Torx screws (E12) M8 x 1 x 25 (fine thread).

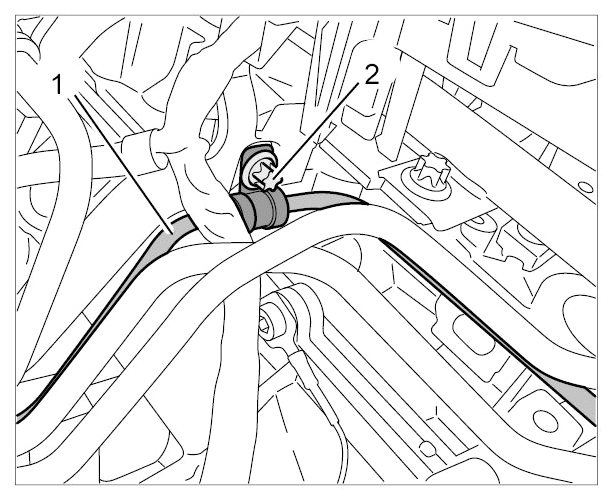

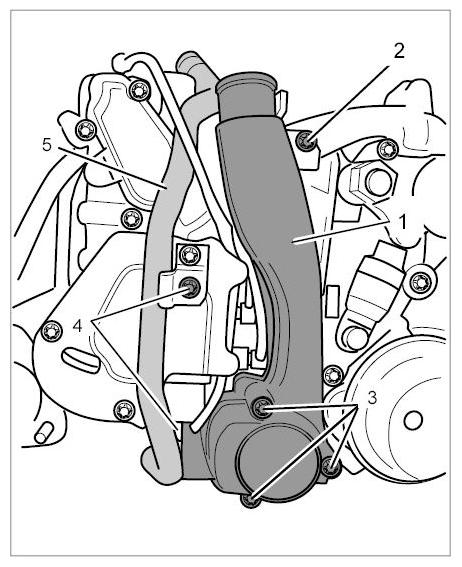

- Install coolant pipe -1-
for the coolant regulator housing and secure with one external Torx screw (E10, M6 x 12) -2-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Install vacuum pump -3-
with vacuum line -1-
.
→ 477619 REMOVING AND INSTALLING VACUUM PUMP .
→ 477755 REPLACING VACUUM LINE FOR BRAKE BOOSTER (SECTION AT ENGINE) .

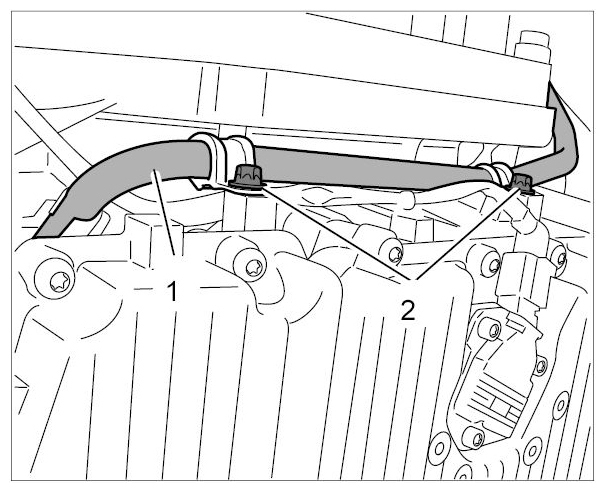

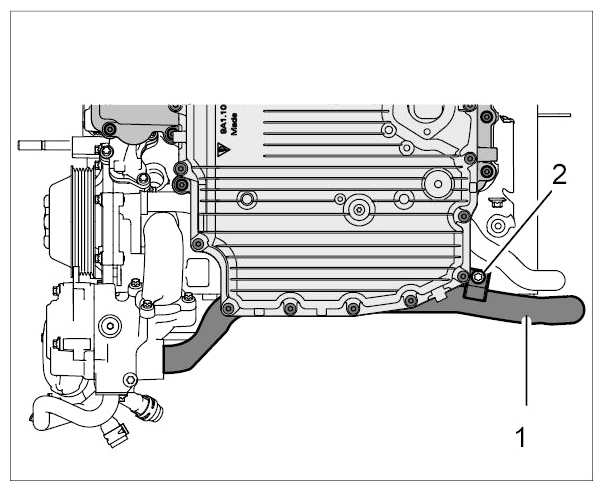

- Secure vacuum line -1-
for brake booster at the oil pan.
→ 477755 REPLACING VACUUM LINE FOR BRAKE BOOSTER (SECTION AT ENGINE) .
- 9.1. Fit and tighten external Torx screws (E10, M6 x 12) -2-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 9.1. Fit and tighten external Torx screws (E10, M6 x 12) -2-
.

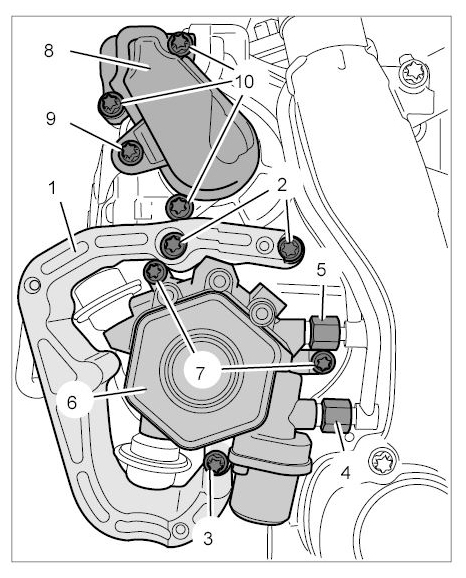

- Install high-pressure pump -6-
.
→ 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP - TURBO .
- Fit fuel lines to high-pressure pump -6-
.
- 11.1. Grease thread with OKS 1700 lubricant (Part No. 000.043.207.36) and tighten union nuts -4 and 5- .
- 11.2. Fit line bracket using M6 external Torx screws.
- 11.3. First tighten the union nuts, then the screws on the line bracket.
→ Tightening torque: 20 Nm (15 ft. lb.)
→ Tightening torque: 13 Nm (9.5 ft. lb.)

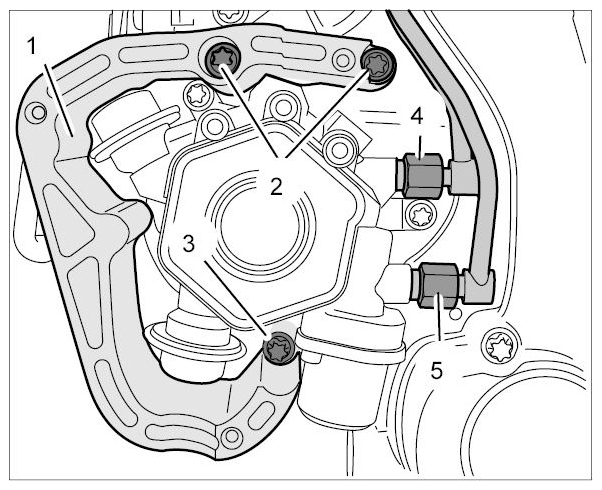

- Fit cover -1-
for high-pressure pump.
- 12.1. Screw in and tighten two external Torx screws (E10) M6 x 25 -2-
and one M6 x 40 -3-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 12.1. Screw in and tighten two external Torx screws (E10) M6 x 25 -2-
and one M6 x 40 -3-
.
- Fit heat shield for high-pressure pump using three external Torx screws (E10) M6 x 12.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Install coolant regulator with housing cover -1-
and intake tube -5-
.
- 14.1. External Torx screws (E10) on housing cover: Tighten three M6 x 50 screws -3- and one M6 x 40 screw -2- .
- 14.2. Grease new O-rings on the intake tube and fit tube into the coolant regulator housing. Tighten external Torx screws M6 x 12 -4- .
- 14.3. → Tightening torque: 13 Nm (9.5 ft. lb.)
- Fit exhaust manifold with new seals. Fit and tighten nine external Torx screws (E12, M8 x 27) from the inside out.
→ 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD - TURBO .
→ Initial tightening: 12 Nm (9 ft. lb.)
→ Final tightening: 30 Nm (22 ft. lb.)
- Fit turbocharger holder using two external Torx screws (E12, M8 x 35) -2-
.
→ Tightening torque: 23 Nm (17 ft. lb.)
- Install coolant distributor -1-
. Coat new O-rings with Kluber Gel.
- 17.1. Fit coolant distributor into coolant pipes.
- 17.2. Fit spring band clamps -3- on coolant hoses.
- 17.3. Fit coolant distributor using two external Torx screws (E10, M6 x 25) -4-
and tighten screws.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

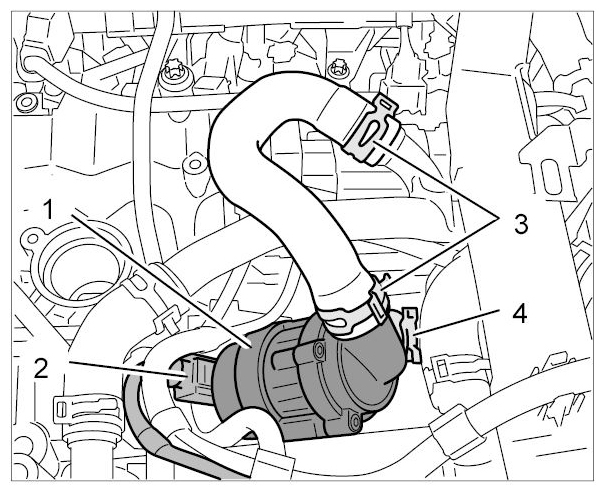

- Fit coolant run-on pump -1-
.
- 18.1. Insert coolant pump and connect coolant hoses.
- 18.2. Close spring band clamps -2 and 3- .
- 18.3. Fit cable plugs -2- when installing the wire harness.
- Fit transport eyebolt.
- 19.1. Fit and tighten two external Torx screws (E10, M6 x 25).
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 19.1. Fit and tighten two external Torx screws (E10, M6 x 25).

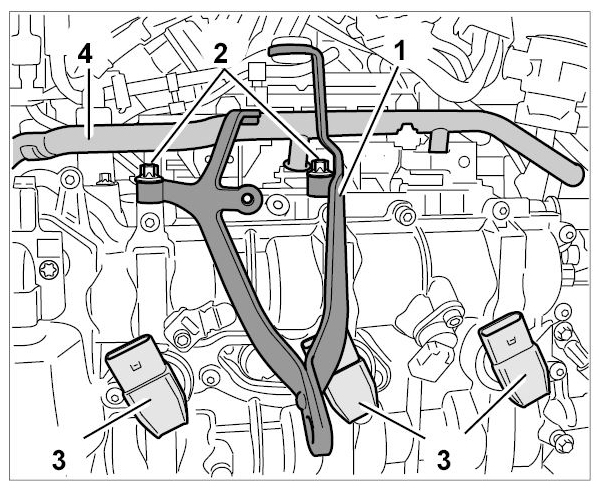

- Install knock sensors (observe installation position and position of connectors).
→ 287219 REMOVING AND INSTALLING KNOCK SENSOR - TURBO .
- 20.1. Fit and secure sensors using one external Torx screw (E12, M8 x 35) on each sensor.
→ Tightening torque: 23 Nm (17 ft. lb.)
- 20.1. Fit and secure sensors using one external Torx screw (E12, M8 x 35) on each sensor.

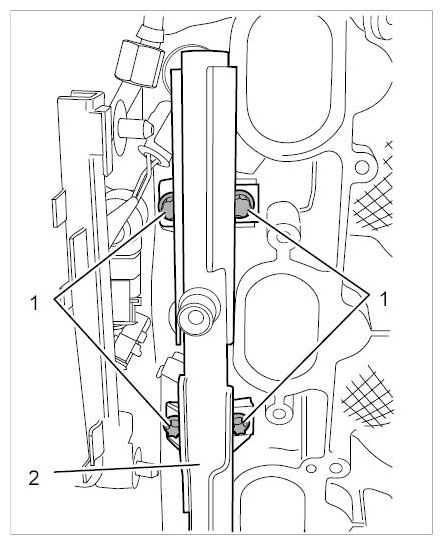

- Fit fuel collection pipes -2-
and injectors.
→ 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE WITH FUEL INJECTORS .
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Install the starter.

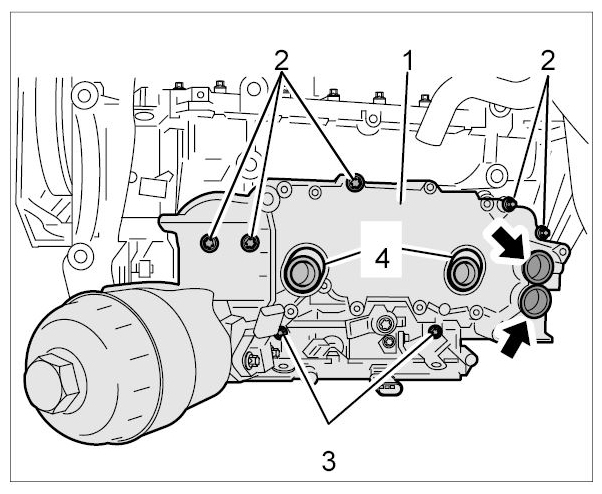

- Install bracket for oil/water heat exchanger -1-
with new O-rings.
Fit and tighten seven external Torx screws (E10): five M6 x 45 screws -2- and two M6 x 60 screws -3- .
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 23.1. Pull out stoppers and fit and grease new O-rings -4- .

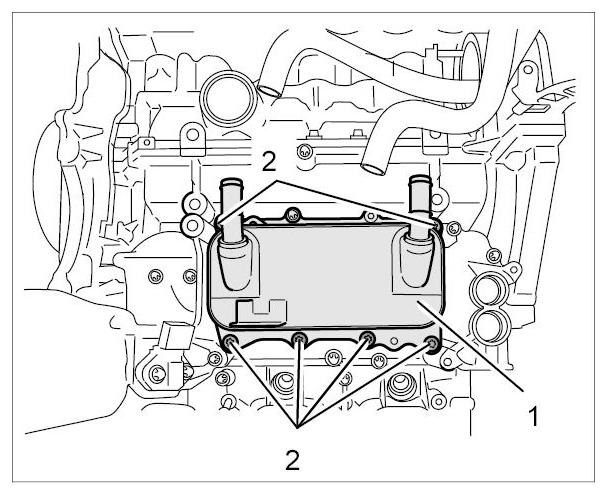

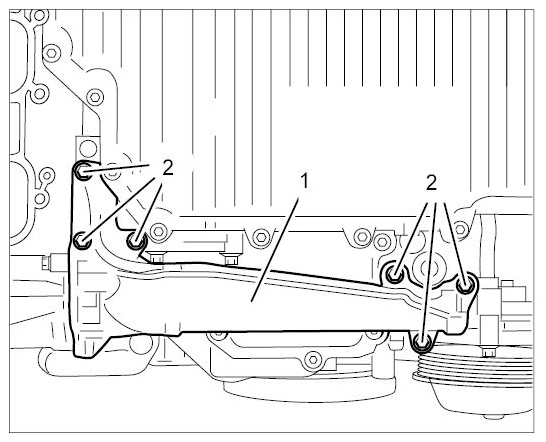

- Install oil/water heat exchanger -1-
.
→ 174019 REMOVING AND INSTALLING OIL/WATER HEAT EXCHANGER .
Fit and tighten six internal Torx screws (T30) M6 x 20 -2- .
→ Contact force: 13 Nm (9.5 ft. lb.)
- Install oil separator -3-
with new O-rings.
- 25.1. Grease O-rings, fit oil separator and secure with two external Torx screws (E10, M6 x 25) -4-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 25.2. Clip in B+ line -2- and connect vent line -1- .
- 25.1. Grease O-rings, fit oil separator and secure with two external Torx screws (E10, M6 x 25) -4-
.
- Install secondary-air lines with valves.
- 26.1. Route lines and fit and tighten external Torx screws.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 26.1. Route lines and fit and tighten external Torx screws.

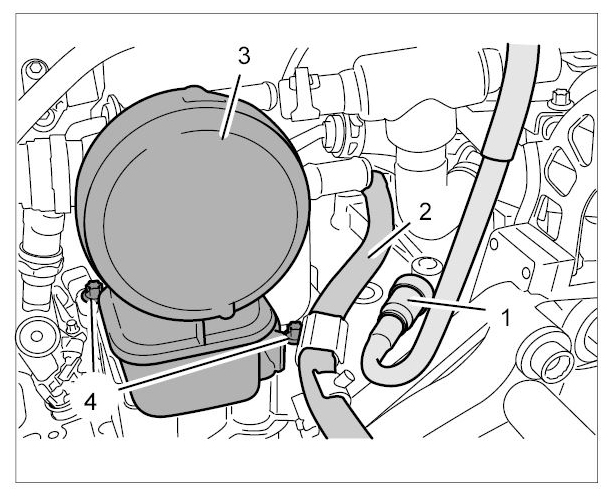

- Install hydraulic pump with reservoir.
→ 489819 REMOVING AND INSTALLING HYDRAULIC PUMP - PDK AND MANUAL TRANSMISSION .
- Install air-conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR .
- Install B+ wire harness (engine).
→ 974519 REMOVING AND INSTALLING WIRE HARNESS FOR BATTERY WIRING .
- Fit and connect engine wire harness.
→ 975219 REMOVING AND INSTALLING WIRE HARNESS FOR ENGINE .

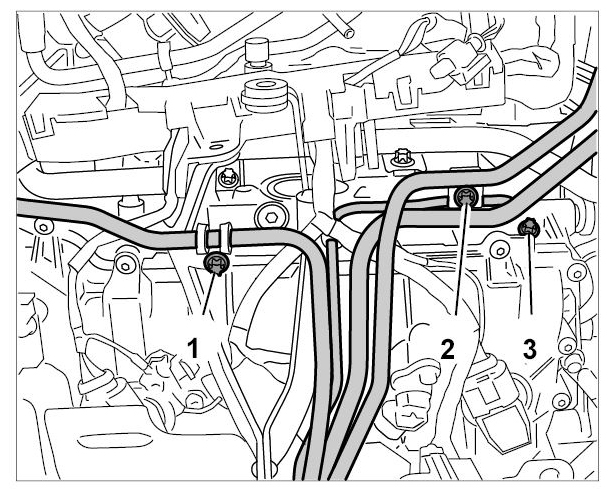

- 30.1. Secure cable duct to cylinder head 1-3 and 4-6 using one external Torx screw (E12, M8 x 16) on each.
→ Tightening torque: 23 Nm (17 ft. lb.)
- 30.1. Secure cable duct to cylinder head 1-3 and 4-6 using one external Torx screw (E12, M8 x 16) on each.

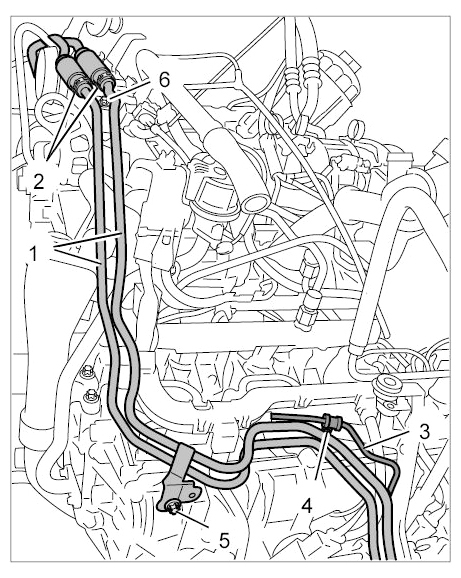

- Fit fuel connection line (high-pressure side) to fuel collection pipe.
→ 243019 REMOVING AND INSTALLING FUEL COLLECTION PIPE WITH FUEL INJECTORS .
- 31.1. Grease thread with OKS 1700 lubricant and tighten threaded connections -1 to 5-
according to tightening sequence.
→ Tightening torque: 20 Nm (15 ft. lb.)
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 31.1. Grease thread with OKS 1700 lubricant and tighten threaded connections -1 to 5-
according to tightening sequence.

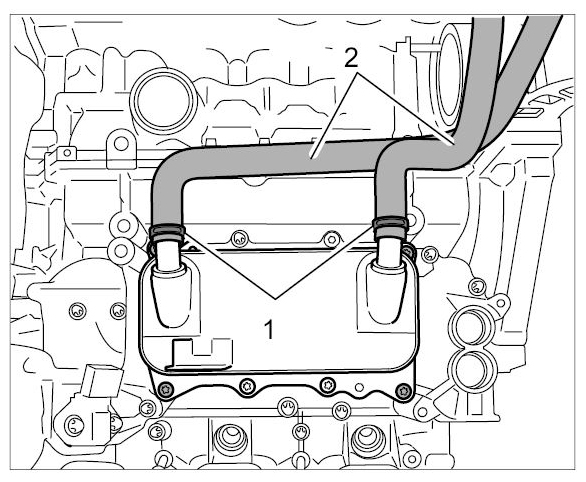

- Fit coolant hoses -2-
to oil/water heat exchangers.
- 32.1. Coat hoses with Kluber Gel and fit them. Close two spring band clamps -1- .

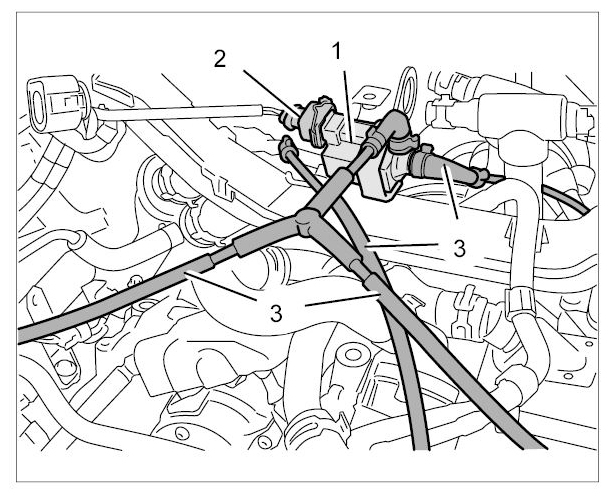

- Fit electric control valve -1- and vacuum lines -3- .

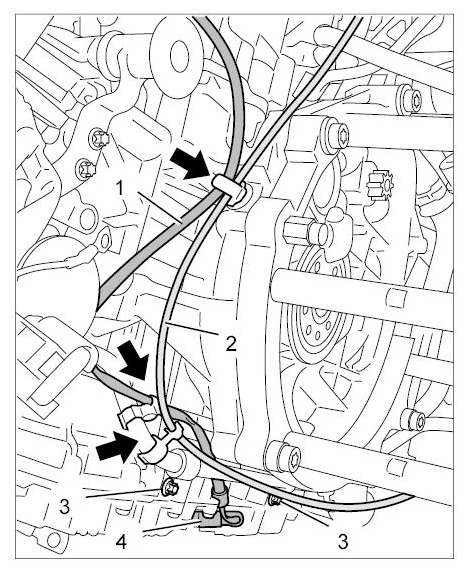

- Route vacuum line -1- and oil-level sender cable -2- , clip them in -arrows- and connect them -4- .
- Install the generator.

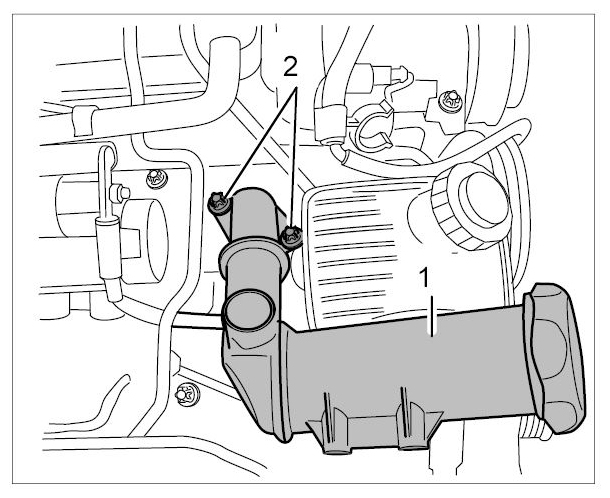

- Install oil filler neck -1-
.
- 36.1. Grease new O-ring and fit oil filler neck on crankcase.
- 36.2. Tighten two external Torx screws (E10, M6 x 20) -2-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- Install positive crankcase ventilation line -1-
.
- 37.1. Grease two new O-rings and fit line to bracket for oil/water heat exchanger. Tighten external Torx screw (E10, M6 x 20) -2- .
- 37.2. Clip in line at two places and fit rapid-action couplings on cylinders 1-3, cylinders 4-6 and on the oil filler neck -3- .

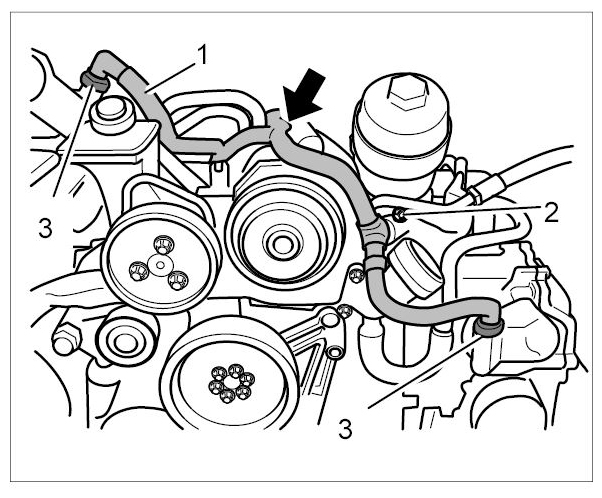

- Route coolant vent line from the coolant distributor to the belt side via the fuel connection line and crankcase vent line.

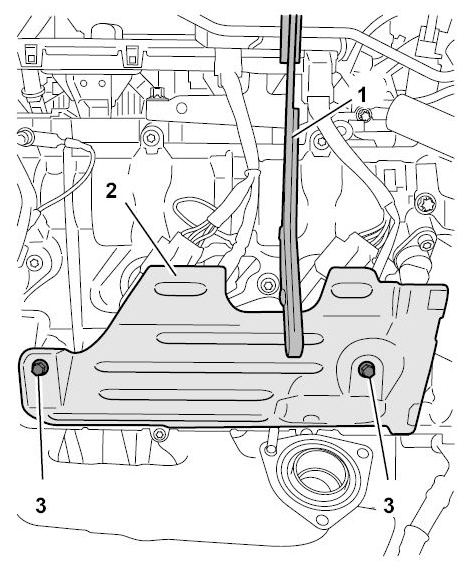

- Fit heat shields -2-
.
- 39.1. Fit and tighten two external Torx screws (E10, M6 x 12) -3-
on each.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 39.1. Fit and tighten two external Torx screws (E10, M6 x 12) -3-
on each.
- Install turbocharger with wire assembly.
- Fit coolant and oil lines (new O-rings) to the turbocharger.
- 41.1. Coolant lines and oil line on cylinder bank 4-6:
Fit and tighten three M6 external Torx screws (E10) -1 to 3-
.
- Holder for oil line
- Holder for coolant lines
- Oil pressure line connection on cylinder head
- 41.2. Secure the oil pressure line -1- to the holder by fitting and tightening the external Torx screw (E10, M6x 12) -2- .
- 41.3. Fit oil pressure line for cylinder bank 1-3 using a new O-ring on the cylinder head. Fit and tighten one external Torx screw (E10, M6 x 12).
- 41.4. Fit coolant lines -1- and oil line -3- on cylinder bank 1-3: Connect lines, close spring band clamps -2- and fit and tighten two M6 external Torx screws (E10) -4 and 5- .
- 41.5. → Tightening torque: 10 Nm (7.5 ft. lb.)
- 41.1. Coolant lines and oil line on cylinder bank 4-6:
Fit and tighten three M6 external Torx screws (E10) -1 to 3-
.

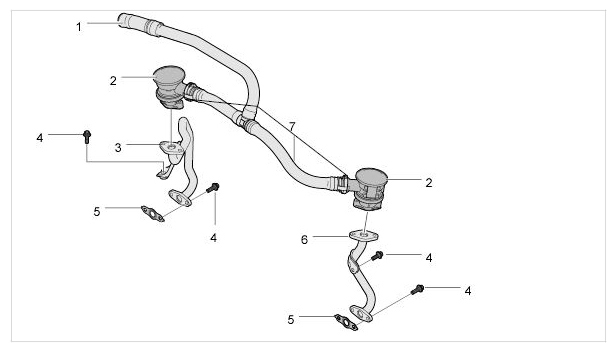

- Install oil return lines and exhaust temperature sensor.
→ 217819 REMOVING AND INSTALLING OIL RETURN LINE FOR TURBOCHARGER .
→ 216420 REMOVING AND INSTALLING EXHAUST TEMPERATURE SENSORS .
- Install intake-air distributor.
→ 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - turbo engine.
- 43.1. Fit complete intake-air distributor and position it on the cylinder heads.
- 43.2. Fit six external Torx screws (E10, M6 x 35) on each and tighten according to the specified tightening sequence.
→ Tightening torque: 13 Nm (9.5 ft. lb.)

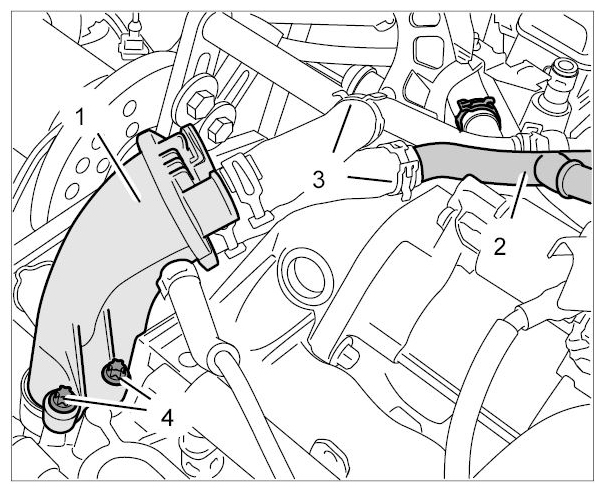

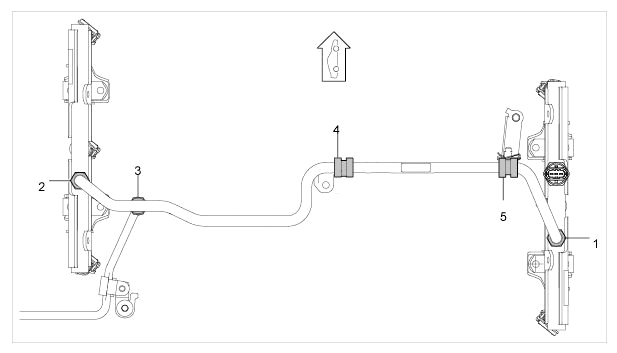

- Fit intake air lines -1-
and grease new O-rings with Kluber Syntheso Glep.
- 44.1. Cylinder bank 1-3:
- 44.1.1. Connect intake air line to the rubber mounting and turbocharger connection piece and fit cover on electronic adjuster.
- 44.1.2. Fit and tighten two external Torx screws (E10, M6 x 30) on the turbocharger and cover.
→ Tightening torque: 10 Nm (7.5 ft. lb.)

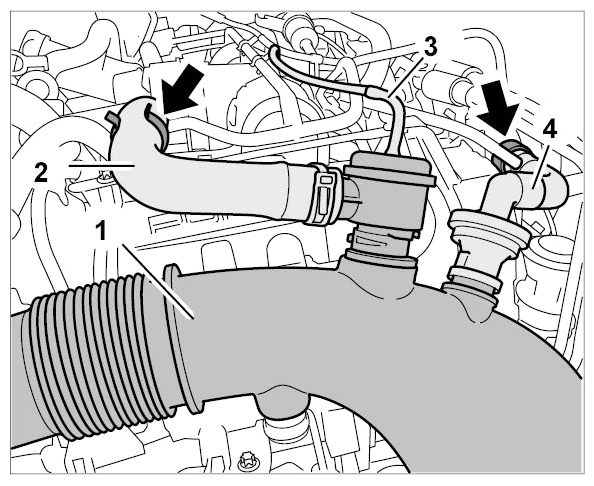

- 44.1.3. Fit hose connections on the ambient air valve -2 and 3- and clip in the hose -arrow- .
- 44.2. Cylinder bank 4-6:
- 44.2.1. Connect intake air line to the rubber mounting and turbocharger connection piece.
- 44.2.2. Fit and tighten two external Torx screws (E10, M6 x 20) on the turbocharger.
Tightening torque: 10 Nm (7.5 ft. lb.)

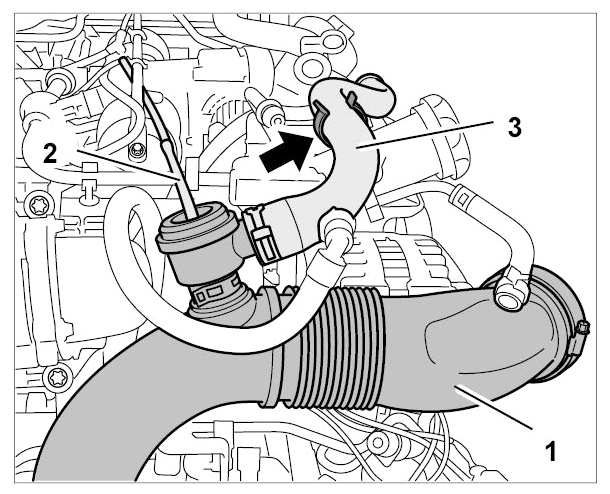

- 44.2.3. Connect positive crankcase ventilation line -4- , fit hose connections on the ambient air valve -2 and 3- and clip in the hose -left arrow- .
- 44.1. Cylinder bank 1-3:

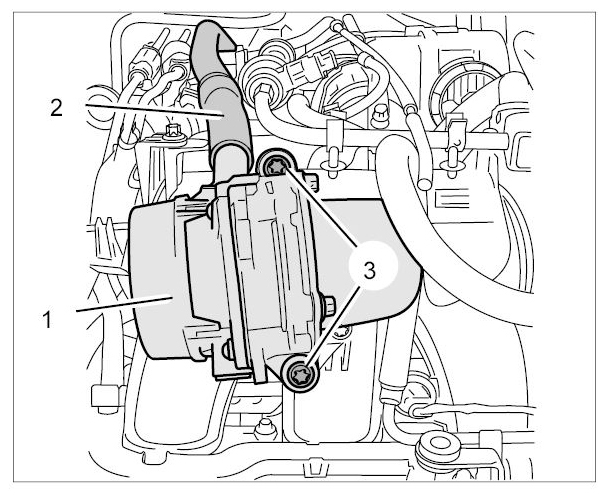

- Install secondary-air pump -1-
.
→ 266519 REMOVING AND INSTALLING SECONDARY-AIR PUMP - TURBO .
→ Tightening torque: 13 Nm (9.5 ft. lb.)

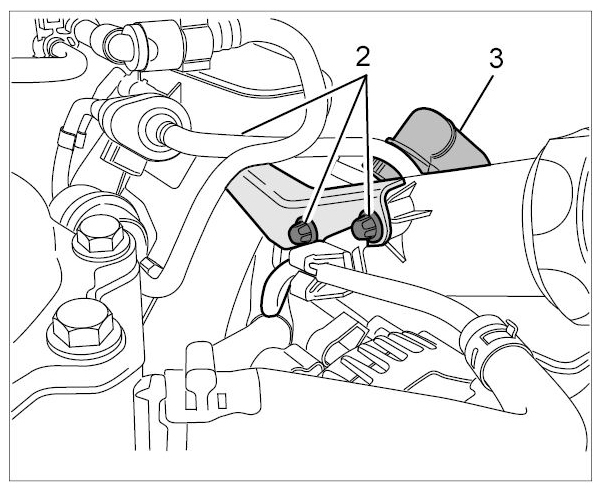

- Fit tank vent valve on holder for intake-air distributor 1-3 and attach rapid-action coupling.
- 46.1. Plug in cable plugs on intake-air distributor for cylinder bank 1-3. Tighten one external Torx screw (E10, M6 x 12) used to secure the cable duct.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 46.1. Plug in cable plugs on intake-air distributor for cylinder bank 1-3. Tighten one external Torx screw (E10, M6 x 12) used to secure the cable duct.
- Fit oil filler neck to holder.
- 47.1. Tighten three external Torx screws (E10, M6 x 12) -2-
.
→ Tightening torque: 13 Nm (9.5 ft. lb.)
- 47.1. Tighten three external Torx screws (E10, M6 x 12) -2-
.

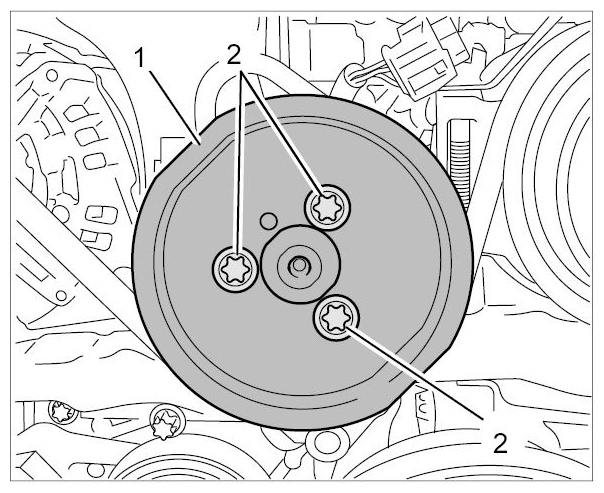

- Fit hydraulic pump pulley -1- using three external Torx screws (E12, M8 x 12) -2- .
- Install the drive belt.
- Tighten external Torx screws on hydraulic pump pulley.
→ Tightening torque: 23 Nm (17 ft. lb.)
- Fit engine carrier -1- and holder for front silencer -5- .
- Fit rear silencer.
- Fit front silencer.
- Remove the engine from the engine assembly support.
→ 1001IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ENGINE ASSEMBLY SUPPORT .
- Fit flywheel with new screws.
→ 136019 REMOVING AND INSTALLING FLYWHEEL - PDK TRANSMISSION .
- Mount the transmission.
→ WM 343527 REMOVING AND MOUNTING TRANSMISSION .
→ 373427 REMOVING AND MOUNTING PORSCHE DOPPELKUPPLUNG (PDK) .
- Install the engine.
