WM 1001Z1 Disassembling The Engine (Except Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Tools
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

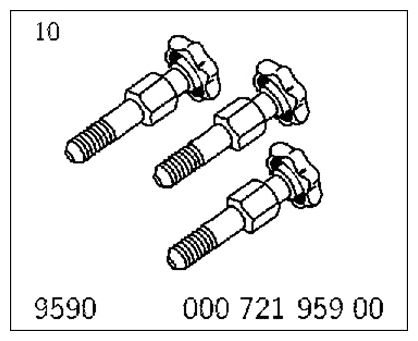

| mounting parts | Special tool | 9590 | ||

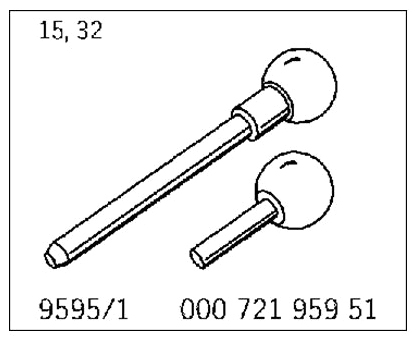

| locating pins | Special tool | 9595/1 | ||

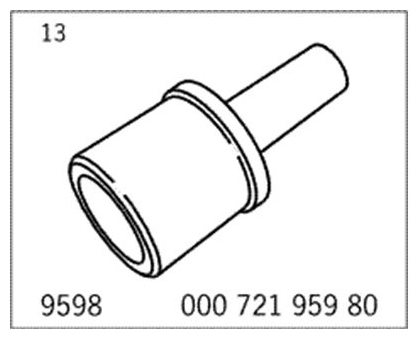

| assembly aid | Special tool | 9598 | ||

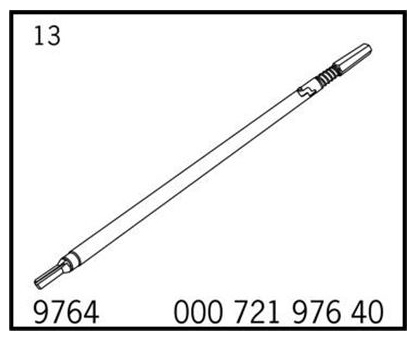

| Disassembly tool | Special tool | 9764 | ||

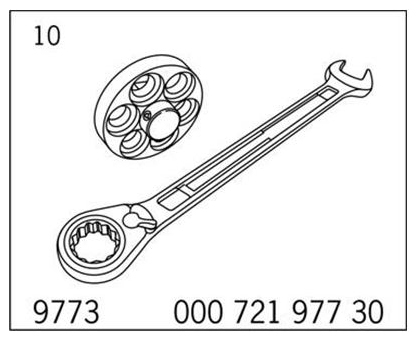

| turning device | Special tool | 9773 | ||

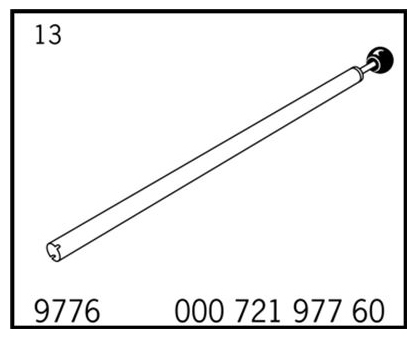

| Assembly tool | Special tool | 9776 | ||

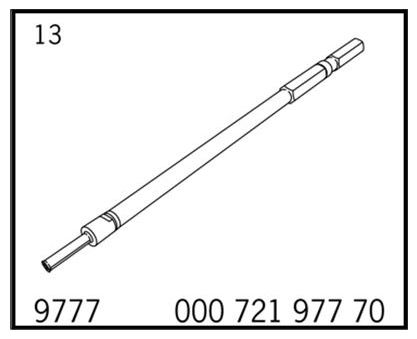

| Disassembly tool | Special tool | 9777 | ||

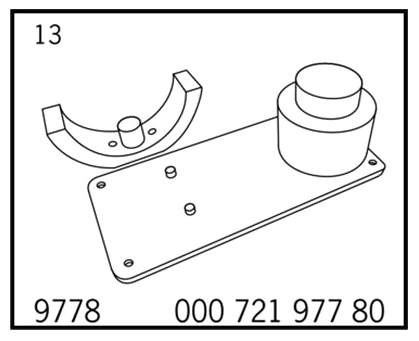

| Retaining device | Special tool | 9778 | ||

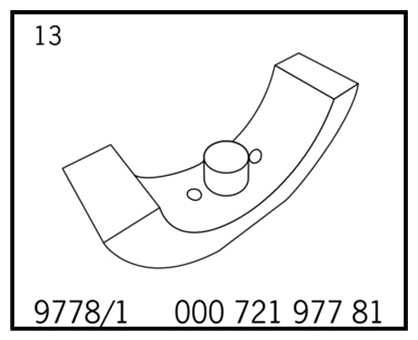

| Piston receiving element | Special tool | 9778/1 | ||

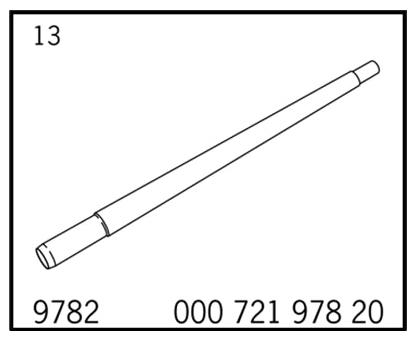

| Centering mandrel | Special tool | 9782 | ||

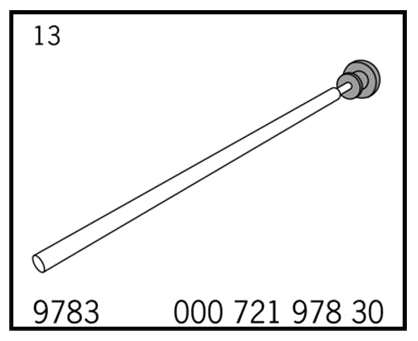

| Assembly aid | Special tool | 9783 | ||

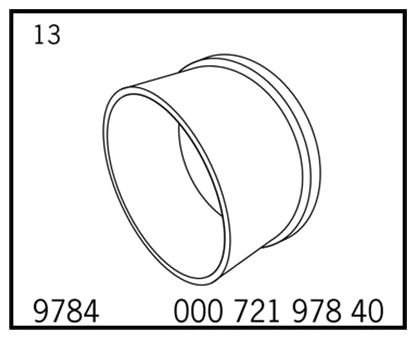

| Funnel | Special tool | 9784 | ||

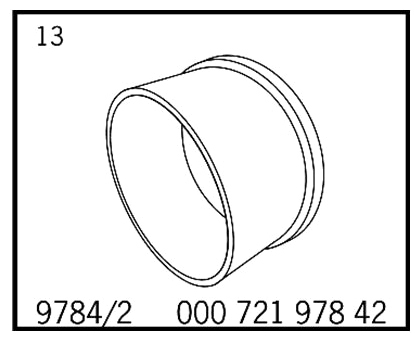

| funnel | Special tool | 9784/2 | ||

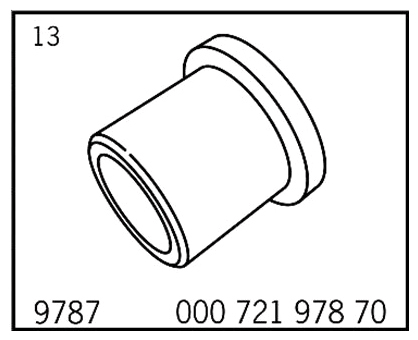

| Piston assembly aid | Special tool | 9787 | ||

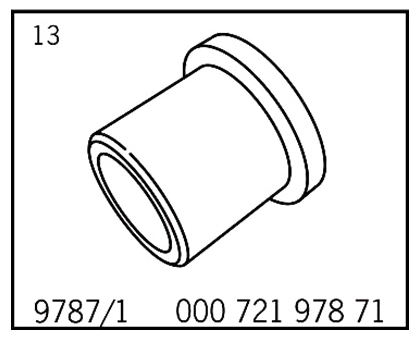

| piston assembly aid | Special tool | 9787/1 | ||

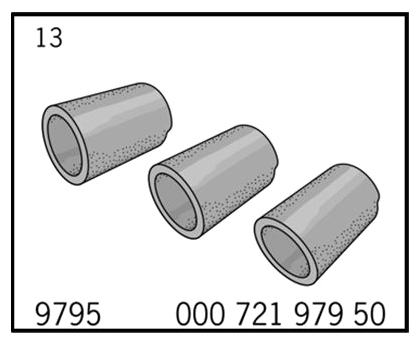

| assembly aid | Special tool | 9795 |
