Tools And Materials

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Loosen or tighten all threaded connections according to instructions in the document → 1X00IN TIGHTENING TORQUES FOR ENGINE MA101 AND MA102 .

Overview of special tools

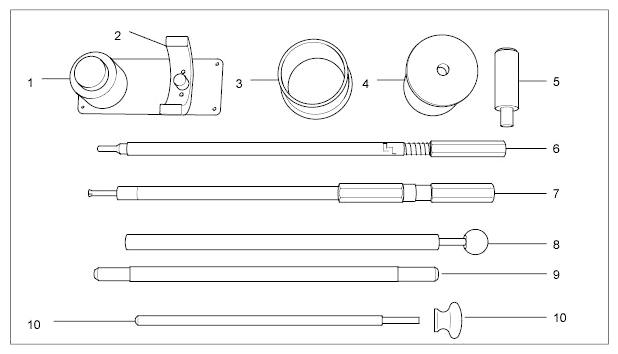

Fig 1: Identifying Special Tools (Engine Disassembly)
G09815696Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Retaining device 9778  with piston receiving element with a diameter of 97 mm.
  2. Piston receiving element 9778/1  , diameter: 102 mm.
  3. Funnel 9784  or funnel 9784/2  for piston assembly, diameter: 97 mm or 102 mm.
  4. Piston assembly aid 9787  , diameter: 97 mm or piston assembly aid 9787/1  , diameter: 102 mm.
  5. Handle for assembly aid 9598  .
  6. Disassembly tool 9764  for piston-pin circlips.
  7. Disassembly tool 9777  and assembly tool for piston pins.
  8. Assembly tool 9776  for piston-pin circlips.
  9. Centering mandrel 9782  for connecting rods and pistons.
  10. Assembly aid 9783  for pressing out pistons (cylinders 1-3) and connecting rods with pistons (cylinders 4-6).

ohne Bild  - Rubber sleeves, assembly aid 9795  for protecting cylinder linings (assembly on connecting rods for cylinders 1-3).
