Engine number marking

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not use steel stamping numbers to mark the engine number on direct fuel injection engines.
Due to the material composition, the engine number must be engraved using the specified tool.

Connect compressed-air marking pen Nr.197 -1- to compressed air supply.
1. 1.1. Turn the adjusting ring to -arrows- open or close the compressed air supply.

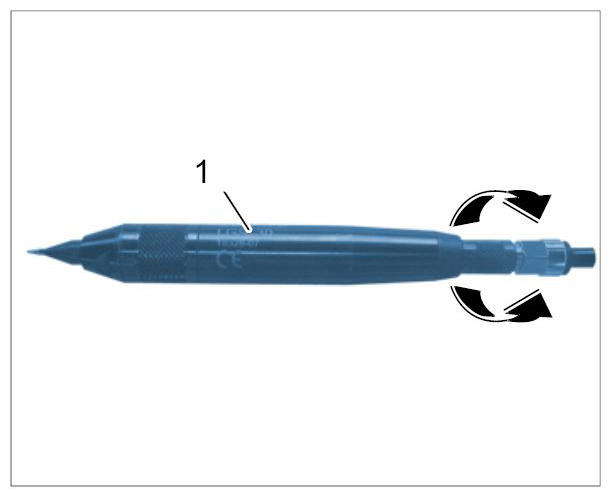

  Fig 1: Turning Adjusting Ring (Pen No. 197)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use the marking pen to engrave the engine number into the crankcase.

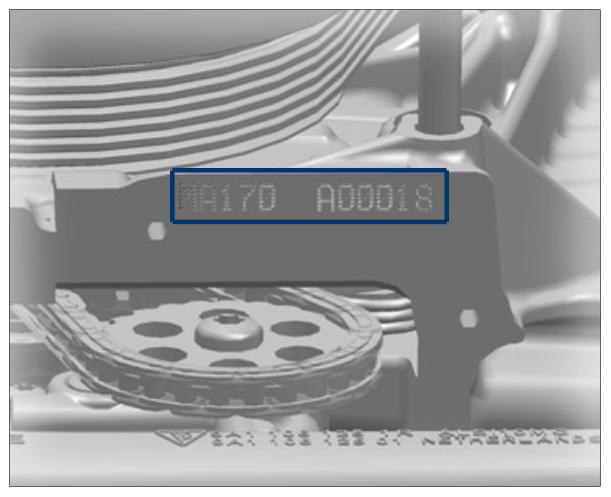

Fig 2: Example Of Engine Number
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. To provide a clear marking, use a 0.5 (5 mm) template!

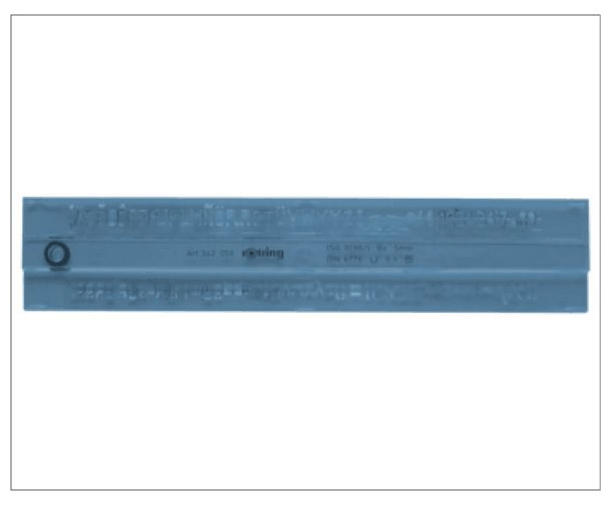

  Fig 3: Example Of Template
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
