Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine.
→ 100119 REMOVING AND INSTALLING ENGINE .
Remove the transmission.
→ 343527 REMOVING AND MOUNTING TRANSMISSION .
Engine support 9667 and holder P201 must be secured to the engine/transmission flange using screw sleeves.

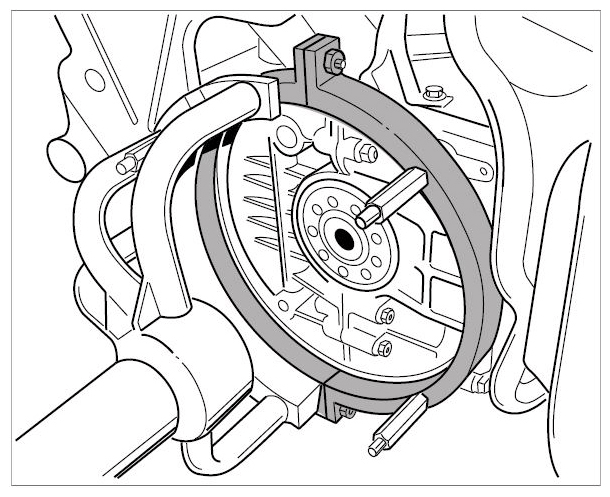

Fig 1: Supporting Engine Adapter (9667)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the engine off the Master Gear unit lifting platform WE 1206 using an engine lift and secure it to the assembly support. Get another person to help you do this.
Additional steps required for complete disassembly before fitting the engine support:
Remove the clutch.
→ 305019 REMOVING AND INSTALLING CLUTCH .
Remove the flywheel.
→ 136019 REMOVING AND INSTALLING FLYWHEEL .

→ 136019 REMOVING AND INSTALLING SINGLE-MASS FLYWHEEL .

If complete disassembly is not required, the flywheel and clutch can remain fitted.
