Component Overview - Engine

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The overview graphics are shown schematically and may be different to how the components actually look.

Intake system, belt drive

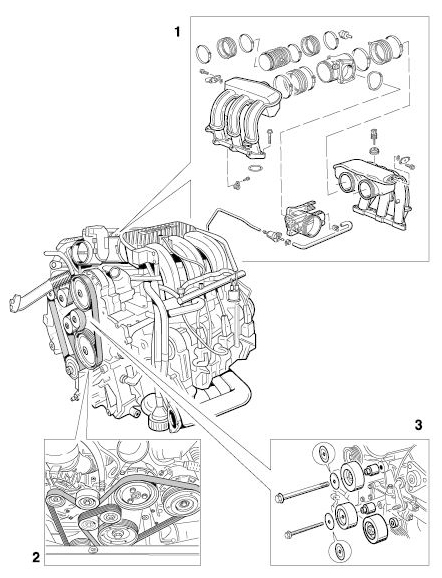

Fig 1: Identifying Peripheral Engine Component 1

G09816016

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Intake distributor
2 - Belt drive
3 - Belt guide and belt tensioner

Engine - lubrication

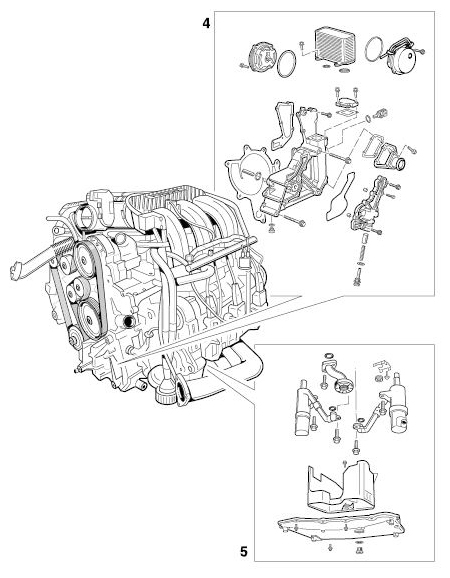

Fig 2: Identifying Engine Lubrication System Components

G09816017

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Oil pumps, heat exchanger, coolant guide housing
5 - Oil pan, oil separator

Cylinder head, crankcase

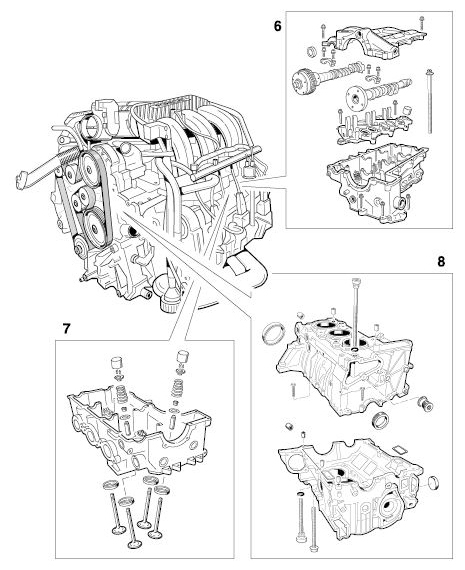

Fig 3: Identifying Cylinder Head Component

G09816018

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6 - Cylinder-head cover, camshafts, flat-base tappet housing, cylinder head
7 - Cylinder head, bucket tappets
8 - Crankcase halves

Crank drive, pistons

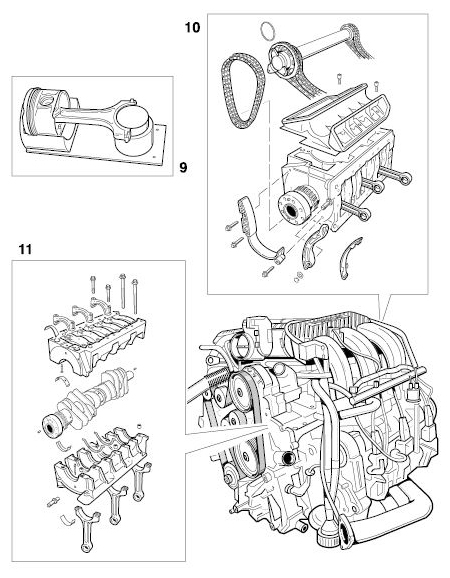

Fig 4: Identifying Crank And Pistons Component

G09816019

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

9 - Pistons, connecting rods
10 - Bearing housing with intermediate shaft
11 - Bearing housing halves with crankshaft
