Installing Transmission Oil Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace O-rings.
Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

Fit transmission oil cooler -1- .
1. 1.1. Fit new O-rings on the oil cooler bracket and grease with the prescribed lubricant.
2. 1.2. Fit the transmission oil cooler to the oil cooler bracket using four fastening screws -2 and 3- and tighten the screws uniformly.
3. 1.3. Tighten fastening screws to the specified torque.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
  1. Transmission oil cooler
  2. Hexagon socket head bolt, M6 x 55
  3. Internal Torx screw, M6 x 16

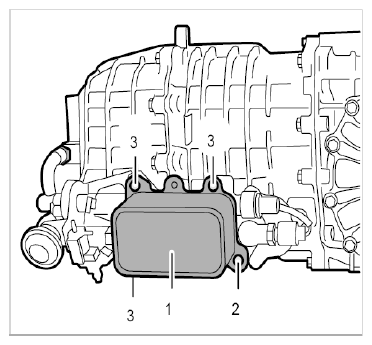

    Fig 1: Identifying Oil Cooler Screws
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove clamps from the coolant hoses.
1. 2.1. Remove Hose Clamp 3093 -2- from the left coolant hose -1- .

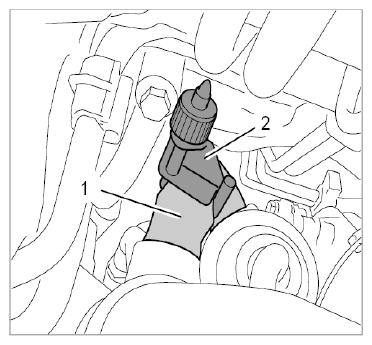

  Fig 2: Removing Clamp From Left Coolant Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Remove Hose Clamping Pliers Nr. 192 -2- from the right coolant hose -1- .

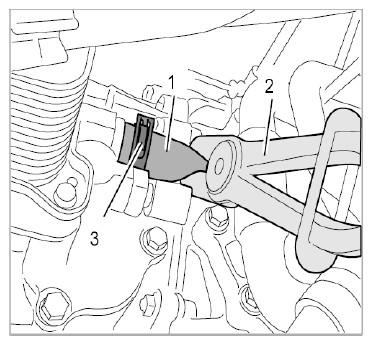

  Fig 3: Removing Clamp From Right Coolant Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release secured coolant lines, move them into installation position and fit the transverse strut.
1. 3.1. Position plastic holder -3- and close the locking clip.
2. 3.2. Secure the transverse strut -1- with two hexagon-head bolts (M10 x 40) -2- .
  → Tightening torque: 65 Nm (48 ft. lb.)

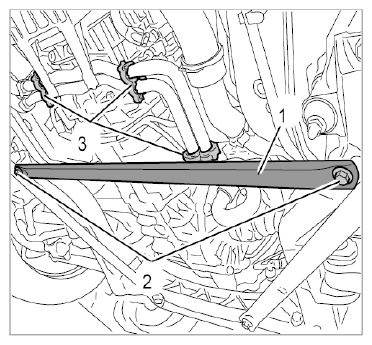

  Fig 4: Identifying Transverse Strut And Plastic Holder For Coolant Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in control valve -3- and fit cable plug -1- .

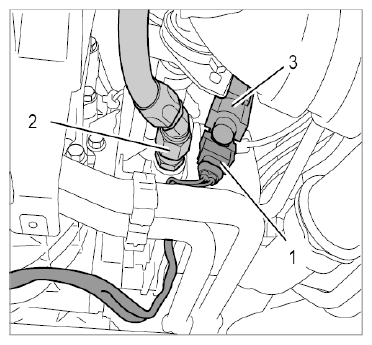

Fig 5: Identifying Cable Plug, Control Valve And Oil Line For Oil Cooler Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
