Removing Front Transmission Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove transmission oil cooler.

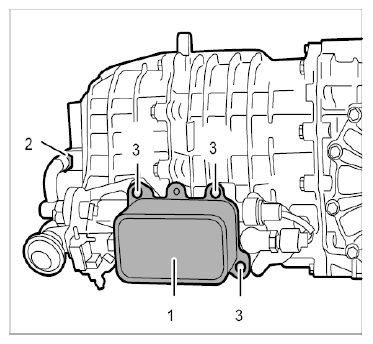

Fig 1: Identifying Transmission Oil Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Disconnect electrical connections.
  Unhook wiring harness from transmission and remove.
2. 1.2. Release transmission oil cooler -1- .
  Undo bolts -3- .
3. 1.3. Remove transmission oil cooler -1- with console and accessories.
  Detach transmission oil hose -2- on transmission and remove transmission oil cooler -1- with console and accessories.
Remove oil pump.
Remove bolts to do so. Turn special tool threaded piece vw 771/15 into thread. Drive oil pump -A- using special tool striking tool vw 771 upwards and out.

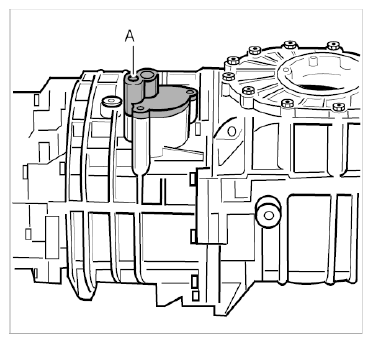

Fig 2: Identifying Transmission Oil Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front transmission cover.
Bolts -1- and force off front transmission cover using a suitable rubber mallet.

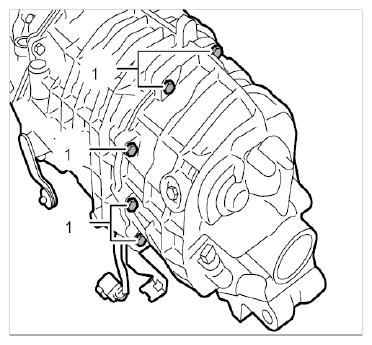

Fig 3: Removing Front Transmission Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
