Assembling Front Transmission Case Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

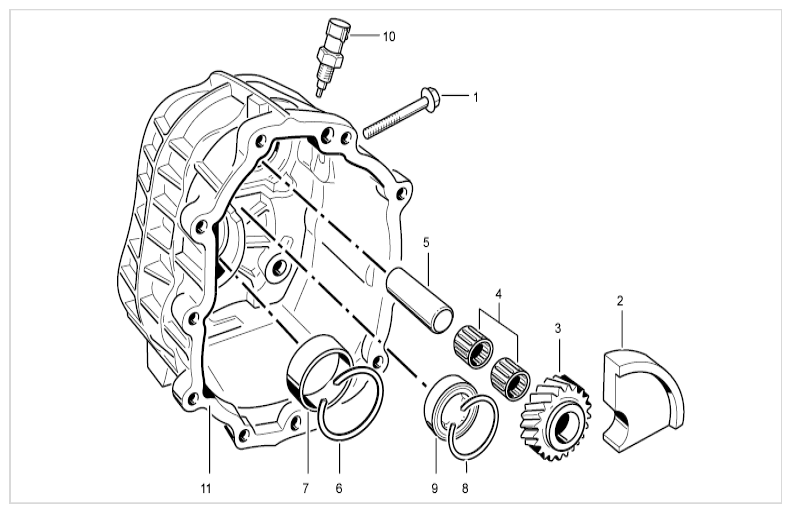

Fig 1: Overview Of Transmission Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Bearing segment
Reverse idler gear
Needle-roller bearing
Bolt
Snap ring, large
Outer bearing ring
Snap ring, small
Cylindrical-roller bearing
Reversing-light switch
Transmission cover

Install back-up light switch.

Turn in back-up light switch -10- .

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Back-up light switch		Tightening torque	20 Nm (15 ft. lb.)

Install cylinder-roller bearing output shaft.
1. 2.1. Drive-in cylinder-roller bearing -9- using special tool Pressure pieces 9690 .
2. 2.2. Insert snap ring -8- .
Install outer bearing ring output shaft.
1. 3.1. Drive-in outer bearing ring -7- using special tool Pressure pieces 9690 .
2. 3.2. Insert snap ring -6- .
Install reverse idler gear.
1. 4.1. Insert gear segment, reverse idler gear and needle-roller bearing -2, 3, 4, 5- .
2. 4.2. Turn in hexagon-head bolt -1- .
