Removing Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disengage starter cable on the right air flange.
Disconnect pressure line from clutch slave cylinder.

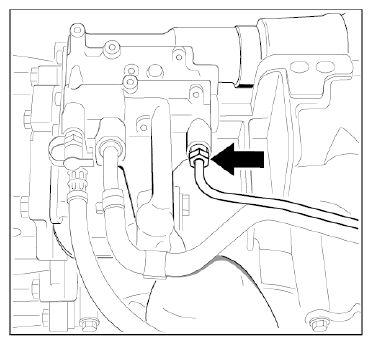

Fig 1: Locating Pressure Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws for slave cylinder.

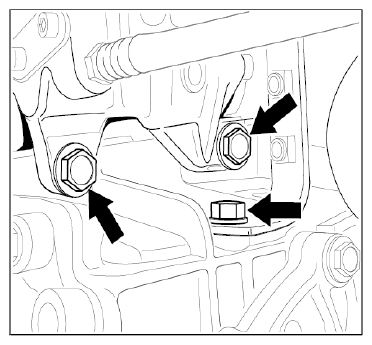

Fig 2: Locating Slave Cylinder Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hang slave cylinder on the engine without tension.
Pull vacuum line off the coolant valve -A- .

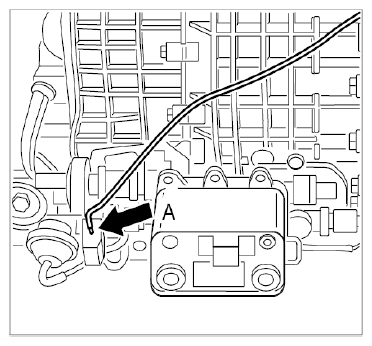

Fig 3: Pulling Off Vacuum Line On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the left air flange.

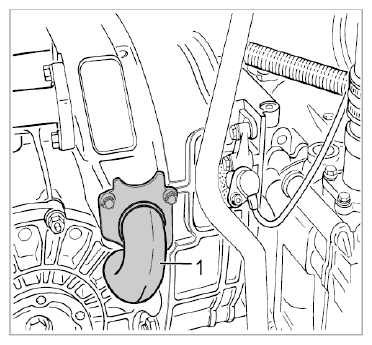

Fig 4: Identifying Left Air Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew hexagon-head bolt for support -A- and pull out bearing cover -B- using a pliers.

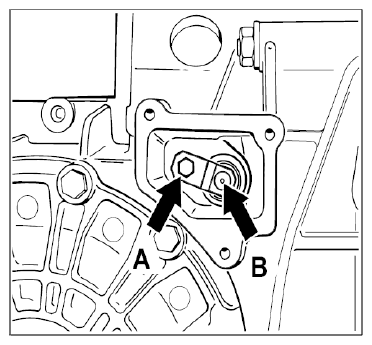

Fig 5: Locating Clutch Control Shaft Mount Hexagon-Head Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw a screw (M6) into the clutch control shaft and pull out the shaft at the screw.

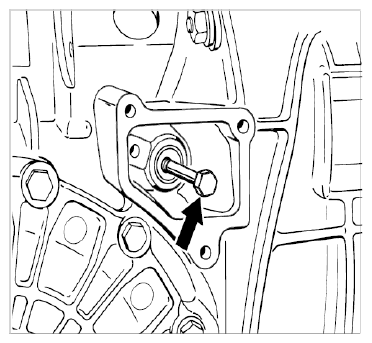

Fig 6: Locating Screw (M6) Into Clutch Control Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach transmission to workshop crane.
Unscrew connecting bolts between the engine and transmission and pull out the transmission to the rear.
