Removing Transmission: Dismantling

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove cross member.

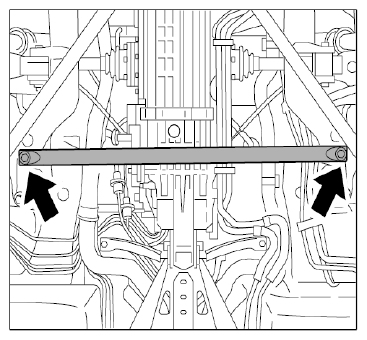

Fig 1: Locating Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove coolant lines and holders.

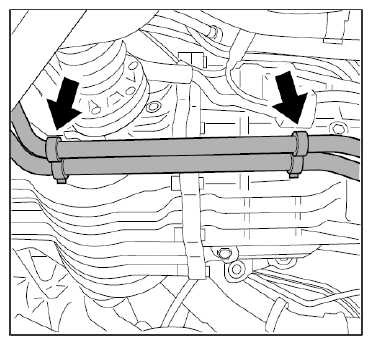

Fig 2: Locating Coolant Line To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric connection for the reversing light switch.

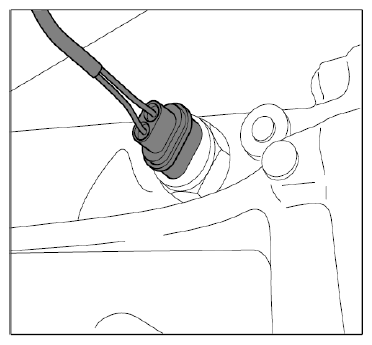

Fig 3: Identifying Electric Connector For Reversing Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove electric cable (positive lead). Do this by removing the holder from the transmission -arrows- and disconnecting the lead in the B-Plus box -1- .

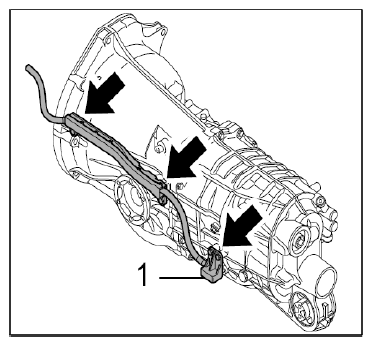

Fig 4: Routing Of B+ Line On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the shift cable -1- and selector cable -2- from the transmission.

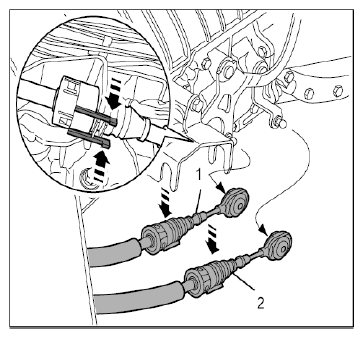

Fig 5: Removing Shift And Selector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Protect the drive shafts from mechanical damage.
Remove drive shafts on transmission side. To do this, unscrew the six Allen screws joining each drive shaft and transmission flange. Counter at the wheel to prevent it from turning as well.

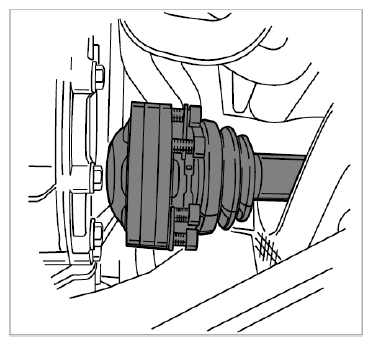

Fig 6: Identifying Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect hydraulic line for clutch control. Collect emerging brake fluid in a suitable container. Seal open lines with a suitable stopper.

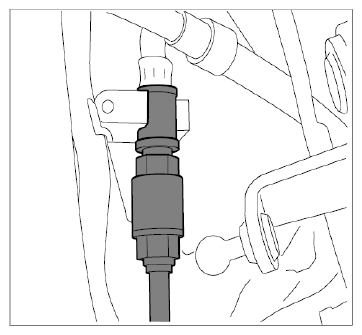

Fig 7: Identifying Clutch Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
