Detaching Shift And Selector Cables Inside Vehicle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift-lever knob. → 340419 REMOVING AND INSTALLING SHIFT-LEVER KNOB - section on "Removing"
Remove center console. → 681719 REMOVING AND INSTALLING CENTRE CONSOLE - section on "Removing"
Loosen parking-brake lever. → 466119 REMOVING AND INSTALLING HANDBRAKE LEVER - section on "Removing"

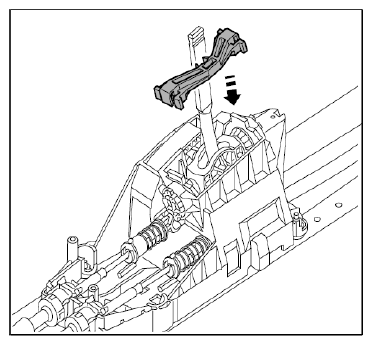

Locking bridge 9619/1 must be fitted on the gearshift bracket.

Fig 1: Fitting Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

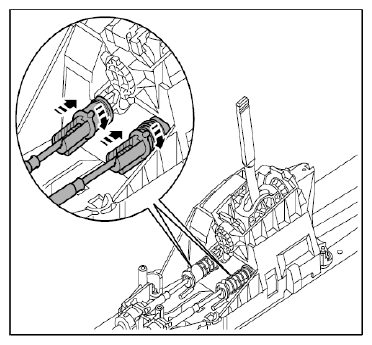

Open bayonet locks at preselector and shift connections.

Fig 2: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

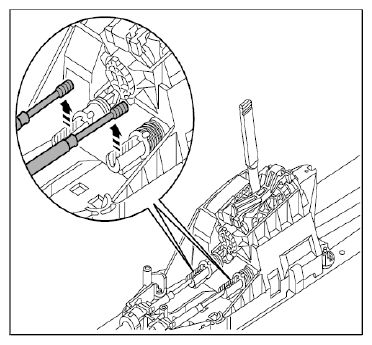

Detach adjustment pins at preselector and shift connections.

Fig 3: Detaching Shift Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

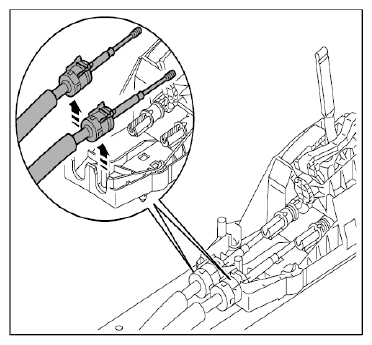

Unclip supports on the gearshift bracket.

Fig 4: Unclipping Supports
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push rubber sleeve out through the opening in the body.
