Rear Seat Airbag

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screw securing rear side airbag to catch bar	-1-	Tightening torque	10 Nm (7.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)

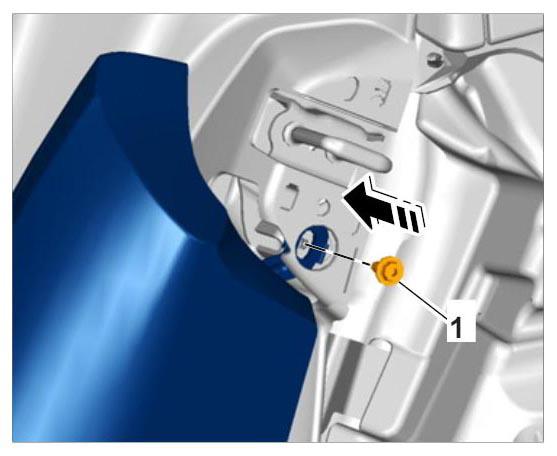

Fig 1: Securing Airbag Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
