Overview Of Tools And Materials

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. A  - Double cartridge gun VAS 5237
  2. B  - Suction cups VAG 1344
  3. C  - Special electric cutter (fine) VAG 1561 A
  4. D  - Flashing knife, U-type 639.031.130.22
  5. H  - 2-component window adhesive, contains set components H1-H8
  6. H1  - Cleaning solution
  7. H2  - Primer
  8. H3  - Activator
  9. H4  - Swab
  10. H5  - Cartridge, component A
  11. H6  - Cartridge, component B
  12. H7  - Mixing nozzle
  13. H8  - Processing nozzle

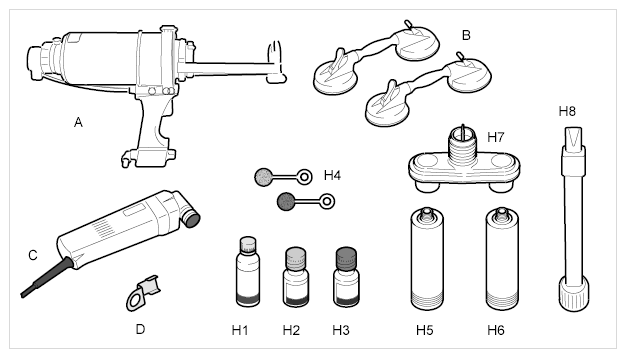

    14. Fig 1: Identifying Tools
    G09810627Courtesy of PORSCHE CARS NORTH AMERICA, INC.
