Gap Dimensions Of Sliding Roof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

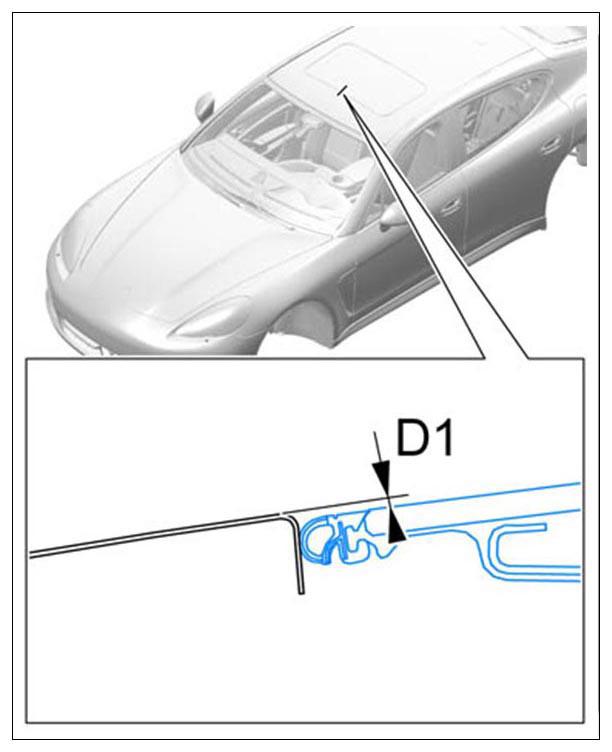

Sliding-roof panel to roof (D1) Lowered only Gap dimension 0 mm -1 mm
G09810570

Gap dimension

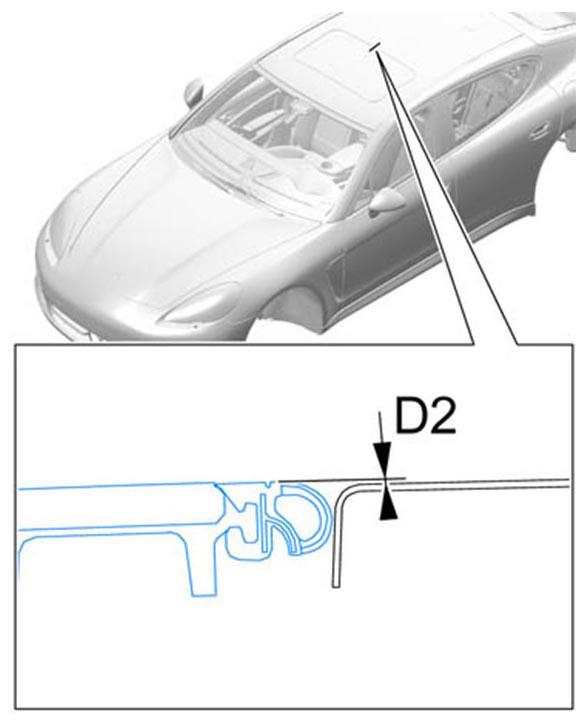

Sliding-roof panel to roof (D2) Raised only Gap dimension 0 mm +1 mm
G09810571

Gap dimension
