Fitting Parts On The New Transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

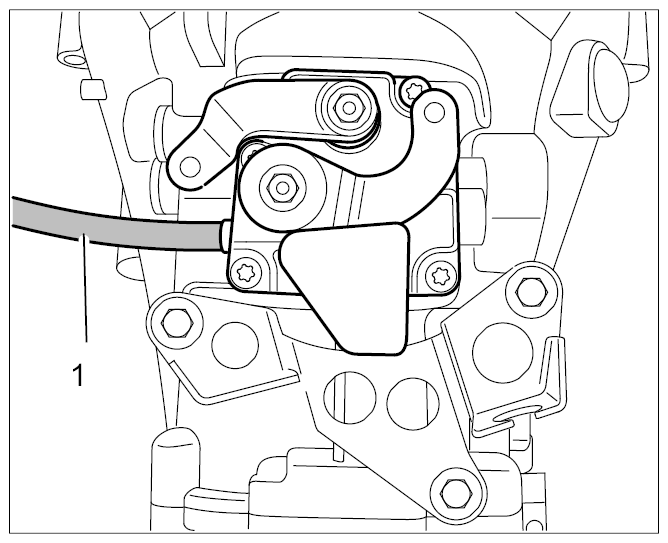

Fit speed sender -1- at the clutch bell-housing. → Tightening torque: 10 Nm (7.5 ftlb.)

Fig 1: Identifying Speed Sender At Clutch Bell-Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

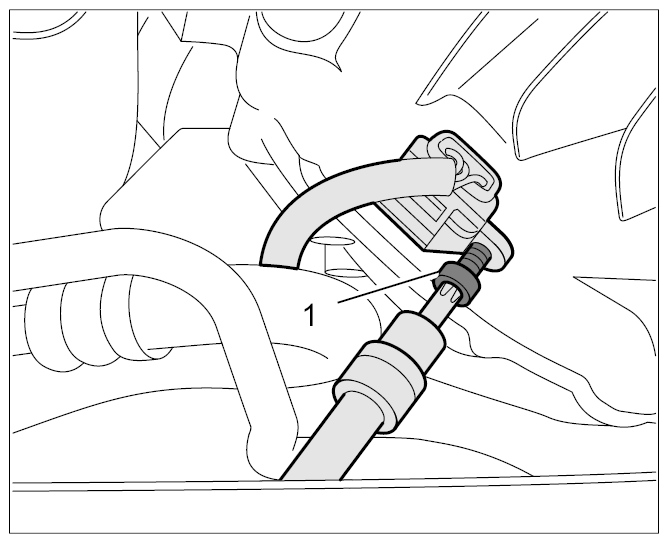

Slide breather hose onto the bleeder.

Fig 2: Identifying Breather Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

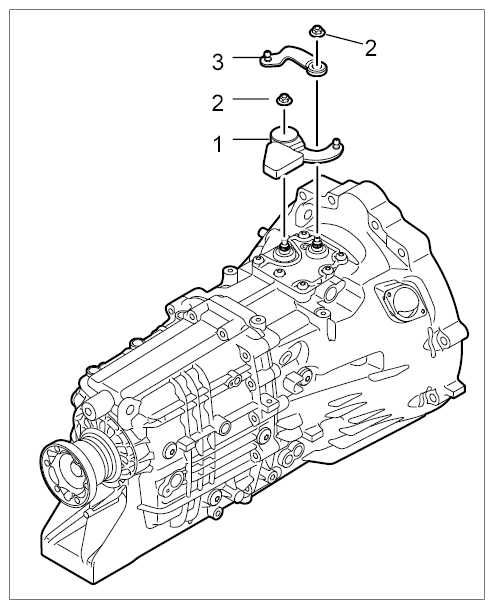

Fit gearshift lever -1 and 3- on the transmission. To do this, screw in fastening nuts -2- . → Tightening torque: 23 Nm (17 ftlb.)

Fig 3: Fitting Gearshift Lever On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

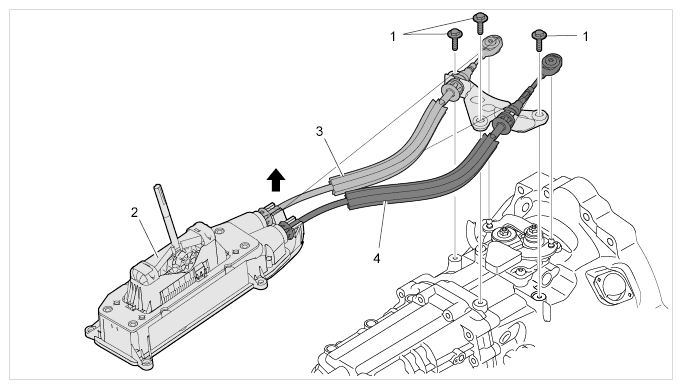

Fit support for operating cables. To do this, screw in fastening screws -1- . → Tightening torque: 23 Nm (17 ftlb.)

Fig 4: Fitting Support For Operating Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

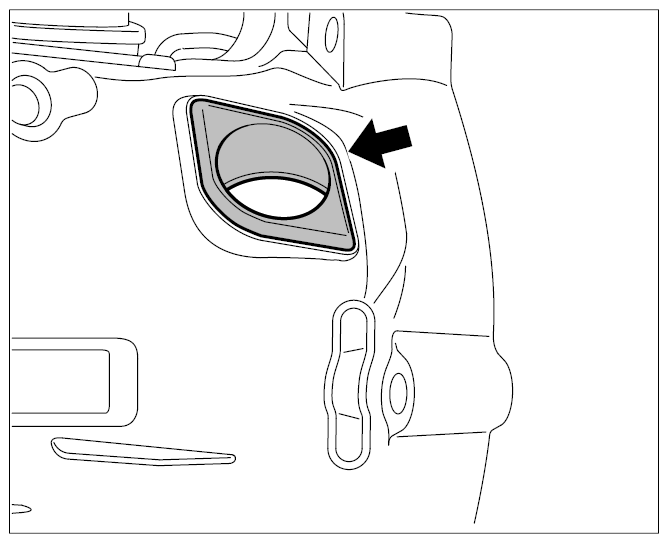

Fit plastic cap on the transmission bell housing.

Fig 5: Locating Plastic Cap On Transmission Bell Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
