Installing Wheel Hub

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

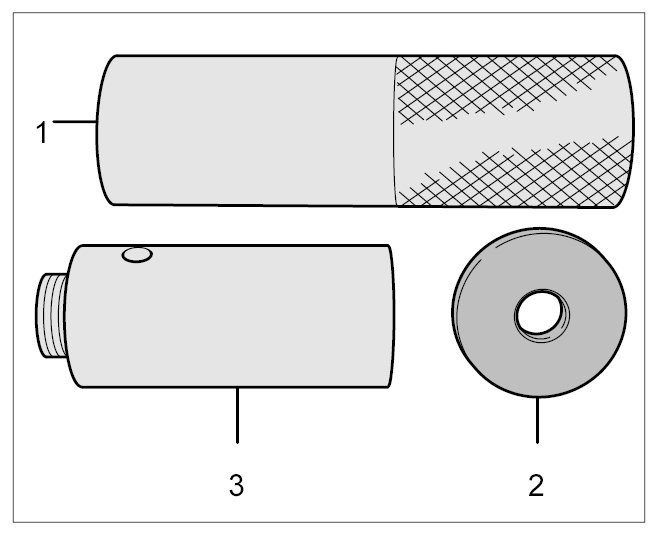

Fig 1: Identifying Tools For Pressing In Wheel Hub

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position press-on sleeve 9694/3 under the workshop press. Fit wheel bearing housing with wheel bearing flat onto press-on sleeve 9694/3. Centre inner wheel bearing race -1- on tool.

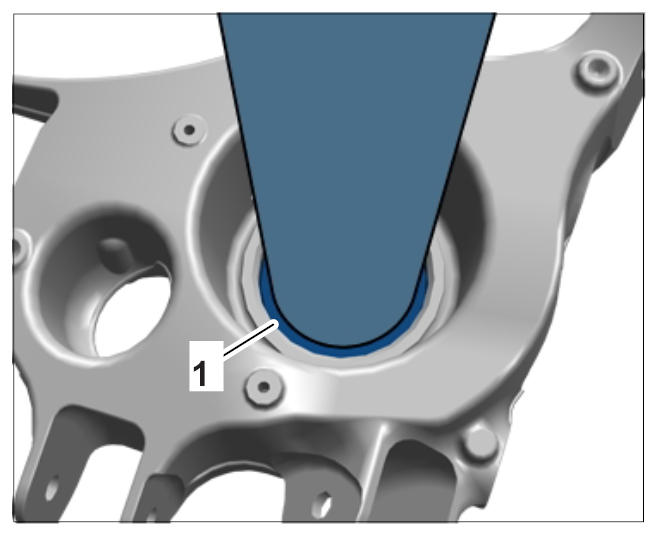

Fig 2: Centering Press-On Sleeve On Rear Inner Wheel Bearing Race (Rear-Axle Wheel Carrier Shown)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place pressure piece T10205/10 -2- flat onto the wheel hub. Make sure that the wheel bearing inner race is flat and centered on the press-on sleeve 9694/3 -3- . Carefully press in the wheel hub until the pressure increases (check pressure gauge!).

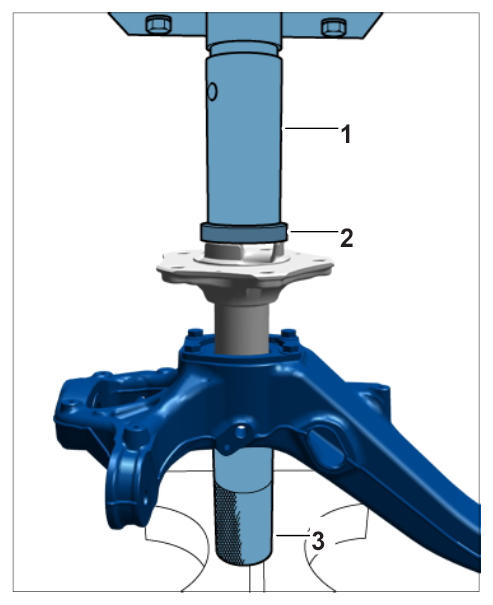

Fig 3: Pressing In Wheel Hub

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
