Installing Torque Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installing upper torque support =>
    1. 1.1. Move torque support into installation position. When doing so, make sure that the part identification is legible on the back, in the opposite direction to the direction of travel.
    2. 1.2. Use new aluminum screws and nuts. Fit the two bolts and nuts on the body and valve cover. Once the component is installed correctly, tighten according to specifications. → Installation position of upper torque support
      1. Aluminum screw, M10 (always use new aluminum screws)
      2. Nut, M10; counter when using tools; → Initial tightening: 20 Nm (15 ftlb.)  and → Final tightening: 180°
      3. Bracket on valve cover
      4. Bracket on body
      5. Torque support

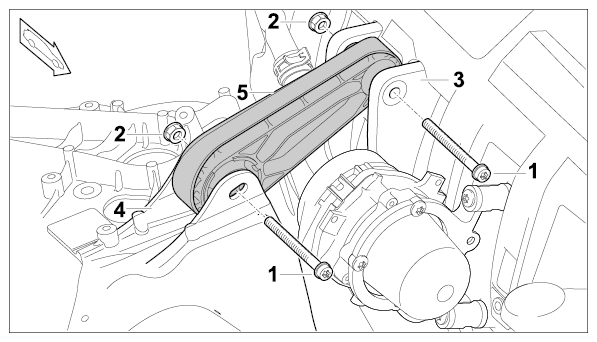

      Fig 1: Identifying Installation Position Of Upper Torque Support
      G09804269Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Direction of travel
  2. Installing lower torque support =>
    1. 2.1. Move torque support into installation position.
    2. 2.2. Fit the two screws on the engine bracket and on the supporting frame. Once the component is installed correctly, tighten according to specifications. → Installation position of lower torque support
      1. Steel screw, M10 x 95; torque support to engine bracket and supporting frame → Initial tightening: 50 Nm (37 ftlb.)  and → Final tightening: 90°
      2. Steel screw, M10 x 65; torque support to engine bracket and supporting frame → Initial tightening: 50 Nm (37 ftlb.)  and → Final tightening: 90°
      3. Torque support

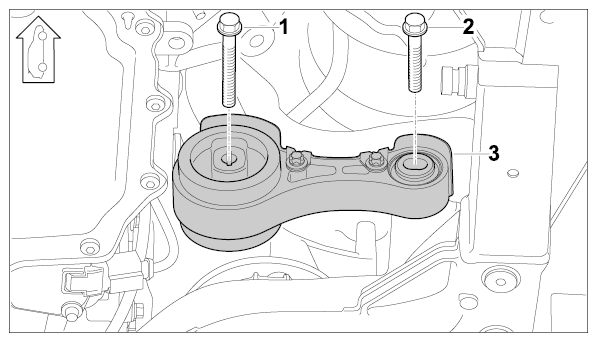

      Fig 2: Identifying Installation Position Of Lower Torque Support
      G09804270Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Direction of travel
