Group 26, Exhaust, Secondary Air

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

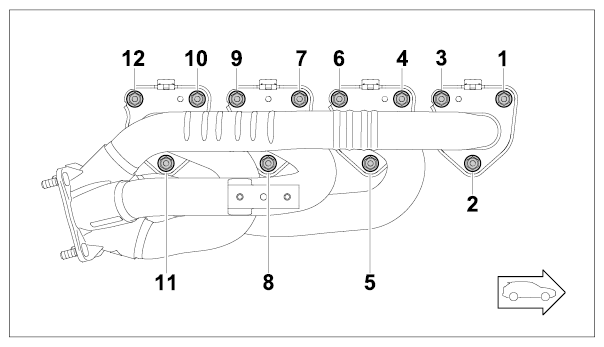

Fig 1: Tightening Sequence For Exhaust Manifold On Naturally Aspirated Engine, Cylinders 1 To 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 to 12 - applies to both sides, always start at the timing-case cover

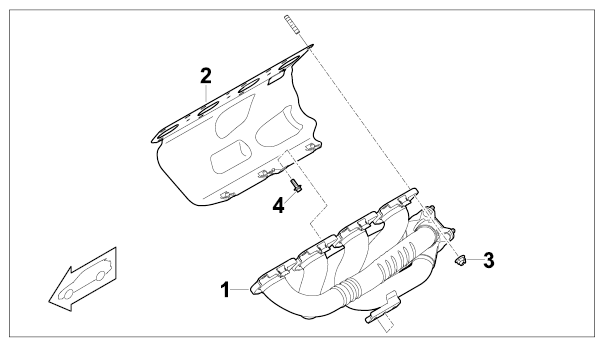

Fig 2: Identifying Exhaust Manifold Seal And Mount On Naturally Aspirated Engine, Cylinders 1 To 4

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1 - Exhaust manifold
2 - Exhaust manifold seal
3 - Studs M8;
5 - Hexagon nut, M8; replace; (check nuts by clicking once); observe correct tightening sequence → Tightening torque: 27 Nm (20 ftlb.) (check nuts by clicking once)

M6 screw; heat shield to exhaust manifold; → Tightening torque: 10 Nm (7.5 ftlb.)

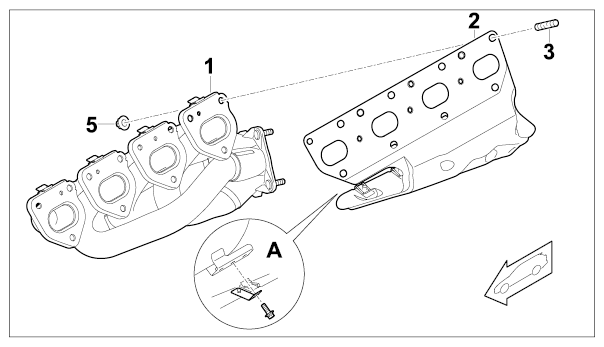

Fig 3: Identifying Exhaust Manifold Seal And Mount On Naturally Aspirated Engine, Cylinders 5 To 8

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold
Seal
Hexagon nut, M8; replace; (check nuts by clicking once); observe correct tightening sequence → Tightening torque: 27 Nm (20 ftlb.) (check nuts by clicking once)
M6 screw; heat shield to exhaust manifold; → Tightening torque: 10 Nm (7.5 ftlb.)

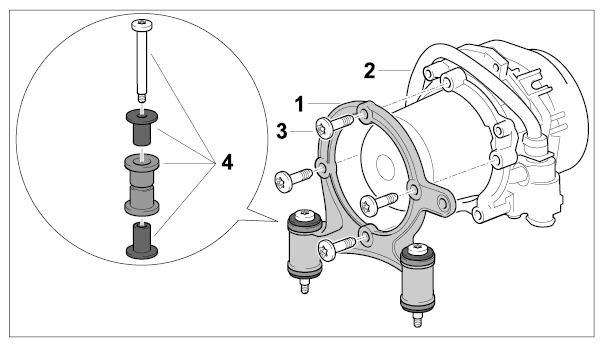

Fig 4: Identifying Secondary Air Pump With Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Console
Secondary-air pump
Screw, M6; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.) and → Final tightening: 90°
Screw element, M6; always use new aluminum screws → Initial tightening: 4 Nm (3 ftlb.) and → Final tightening: 90°
