Installing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace sealing rings -2 and 3-  on the vacuum pump -1-  .

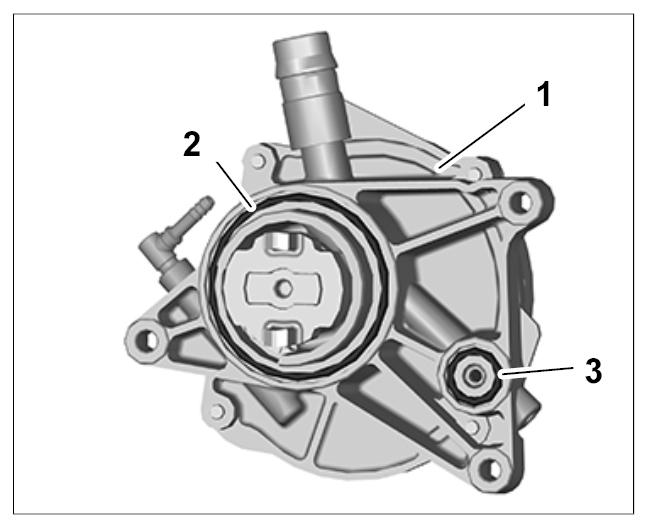

    Fig 1: Identifying Sealing Rings On Vacuum Pump
    G09808161Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Carefully loosen and lever off sealing rings -2 and 3-  using a small screwdriver.
    2. 1.2. Clean contact surfaces of sealing rings.
    3. 1.3. Fit new sealing rings.
  2. Install vacuum pump.

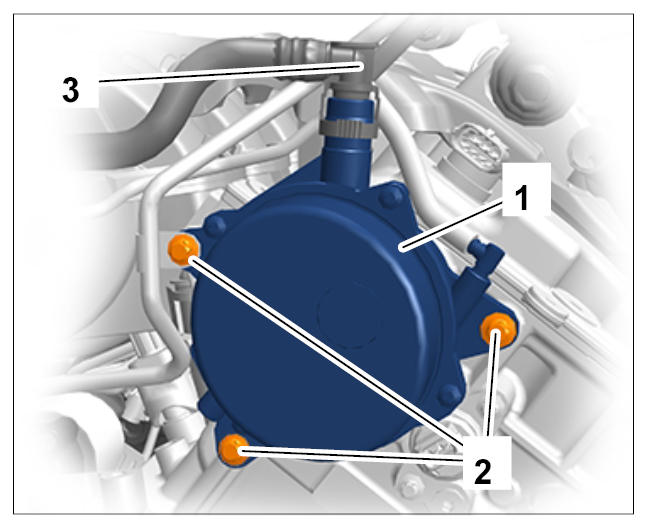

    Fig 2: Identifying Vacuum Pump Fastening Screws
    G09808162Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Clean mounting point before installation.
    2. 2.2. Align driver for vacuum pump and fit the vacuum pump -1-  .
    3. 2.3. Tighten screws -2-  . Tightening torque 10 Nm (7.5 ftlb.)
  3. Fit vacuum line -3-  .
