Installing Brake Booster
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information

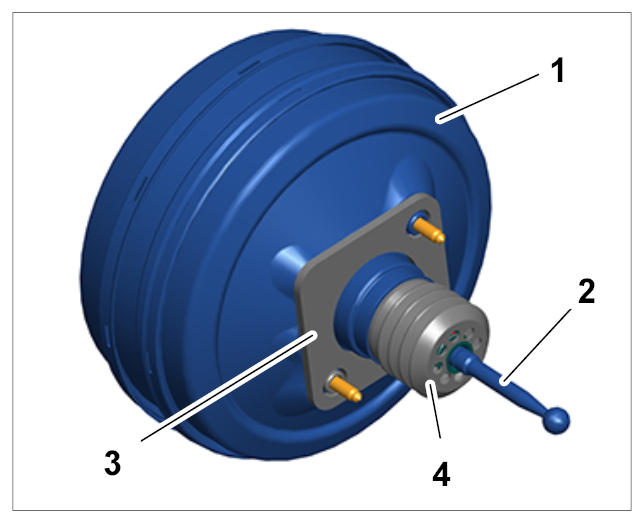

Guide the brake booster -1- from the engine compartment and through the opening in the bulkhead.
The push rod -2- on the brake booster must be guided carefully into the opening on the bulkhead.
In the footwell, a second mechanic must make sure that the push rod -2- together with the boot -4- is guided through the crash support correctly.
When doing so, make sure in particular that the boot -4- is not damaged.
The seal -3- must always be replaced.
- The brake booster is installed in reverse order to removal.
Brake booster to pedals (retaining pin): Tightening torque 23 Nm (17 ftlb.)
- Ensure absolute cleanliness at all times during installation.
