Removing Front Brake Calliper
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
Information
- Do not open the brake system.
- Do not loosen the brake hose from the brake calliper when loosening the brake calliper.
- The core of the warning contact wire must not be left exposed! It does not matter if the insulation is worn.
- If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.
Information
- To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

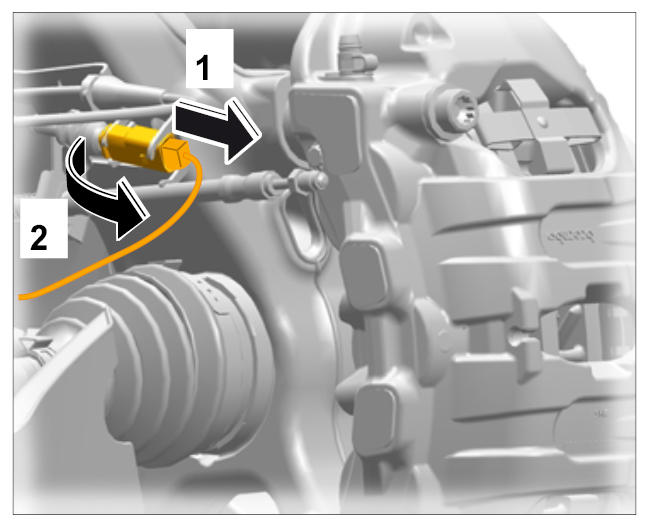

- Disconnect plug-in coupling for brake pad wear indicator -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE: Removal of brake calliper- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.
→ Protect brake calliper from paint defects using a suitable cloth.
- Set the disc brake pads back slightly and uniformly using water pump pliers.

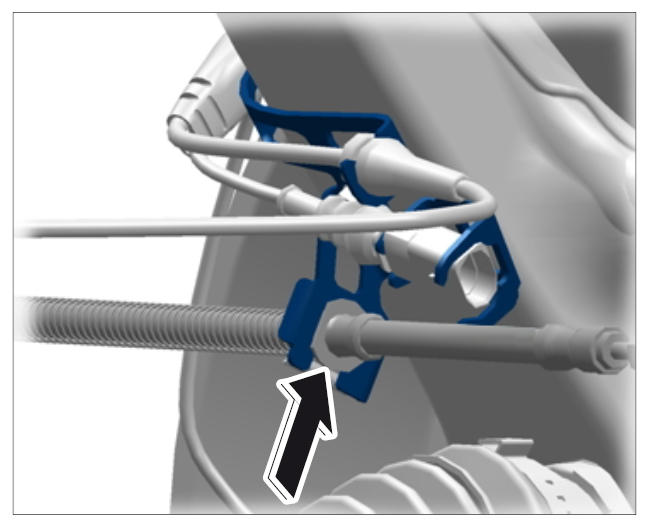

- Loosen retaining clip on holder -arrow- for the brake line.

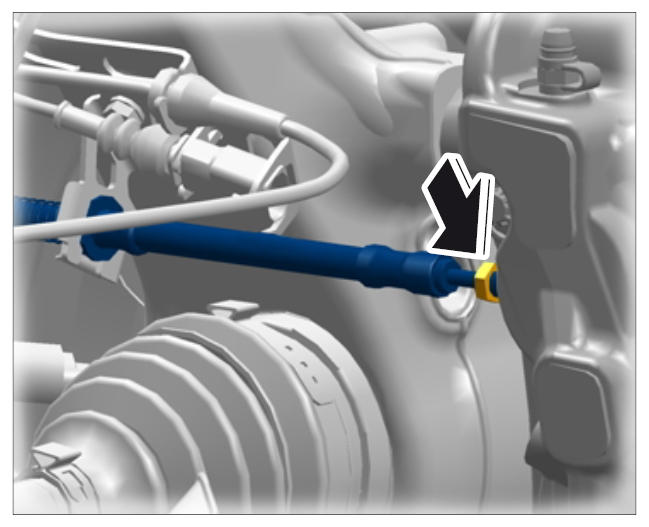

- Disconnect brake line -arrow- at the brake calliper and collect brake fluid in a suitable container.
- Close off brake line using a suitable stopper.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier.

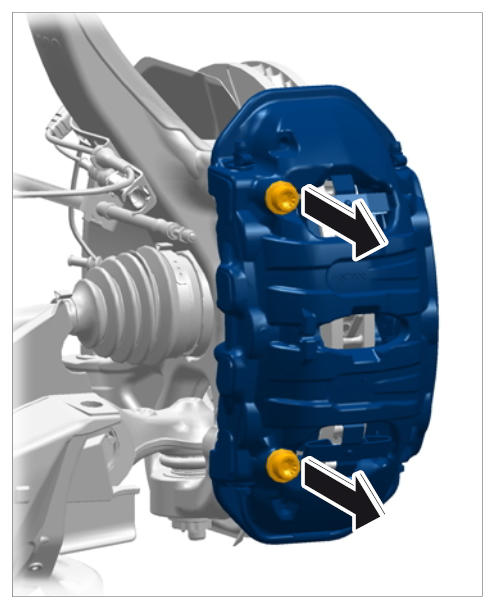

- Loosen fastening screws -arrows- and remove brake calliper from the wheel carrier.
