Replacing Brake Master Cylinder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the brake master cylinder is to be replaced, first remove the brake fluid reservoir and then unscrew the fastening nuts for the brake master cylinder.

Information

When replacing the brake master cylinder or the brake fluid reservoir, the latter is not repositioned until the brake master cylinder has been installed.

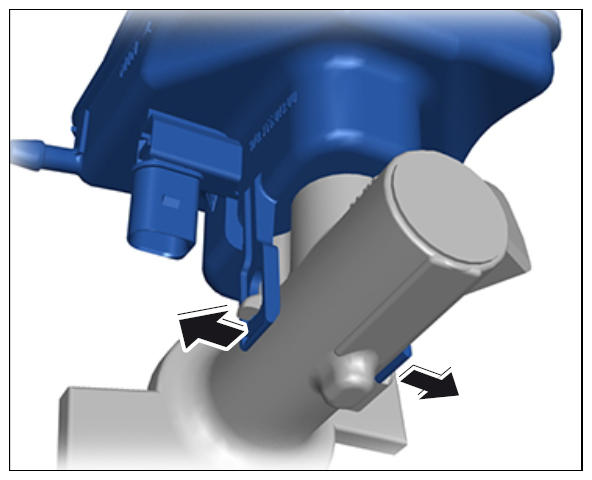

Fig 1: Identifying Brake Fluid Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove brake fluid reservoir.
1. 1.1. Place suitable cloths underneath.
2. 1.2. Carefully bend out both lugs → Removing brake fluid reservoir (example) on the brake fluid reservoir.
3. 1.3. Pull reservoir up and off.
4. 1.4. Wipe up any escaping brake fluid immediately and rinse away residues using plenty of water.

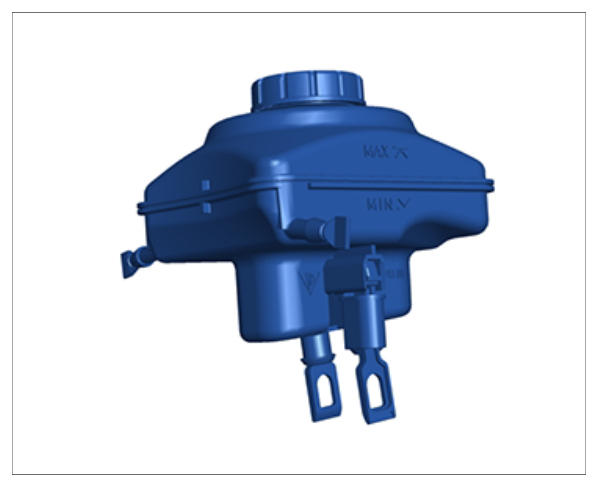

  Fig 2: Identifying Brake Fluid Reservoir
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove brake master cylinder.
