Removing (Inner) Rear Wheel Housing

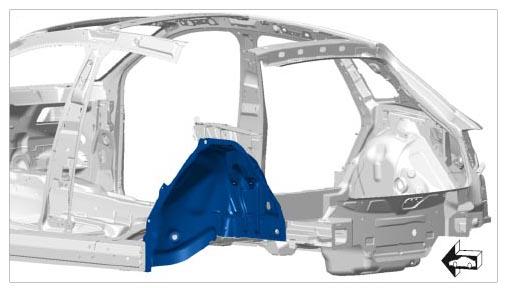

Fig 1: (Inner) Rear Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

1. Drill out spotwelds using spotweld drill;  .

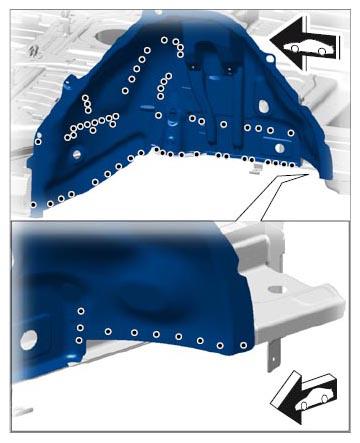

   Fig 2: Removing Rear Wheel Housing (Inner)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat bonding areas.

   Information

   Bonding areas are difficult to reach. The bonding surfaces are heated from inside and outside.

   1. 2.1. Heat area -A-  from inside and outside.
   2. 2.2. Remove (inner) rear wheel housing.

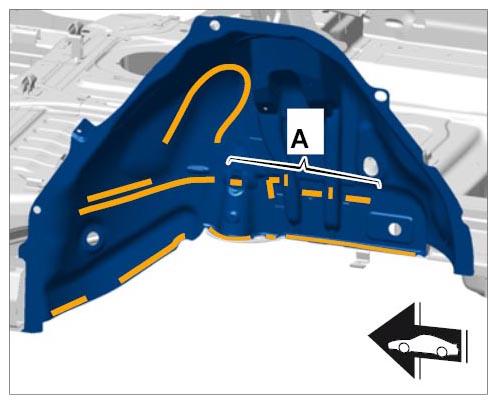

      Fig 3: Removing Rear Wheel Housing (Inner)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
