Installing Longitudinal Member For Wheel Housing

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install longitudinal member for wheel housing and check that it fits perfectly. Check gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

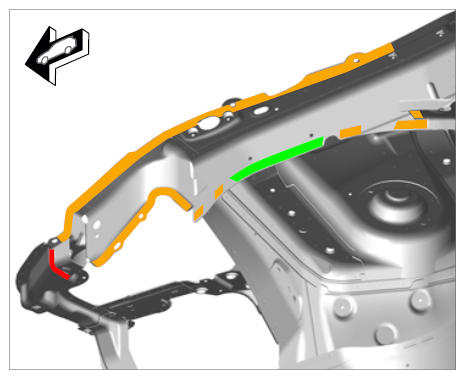

   1. 1.1. Apply adhesive to the marked areas. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE → Application depth: 3.0 mm
      Fig 1: Applying Adhesive Of Body

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Orange	Resistance spot-welding
      Green	Resistance spot-welding + bonding
      Red	Plug-welding/apply a full weld using inert gas without bonding

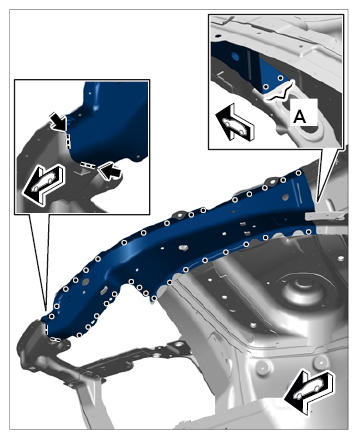

2. Resistance spot-weld the longitudinal member for the wheel housing.
   1. 2.1. Apply a full weld to the area -arrows-  using inert gas.
      Fig 2: Installing Longitudinal Member For Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

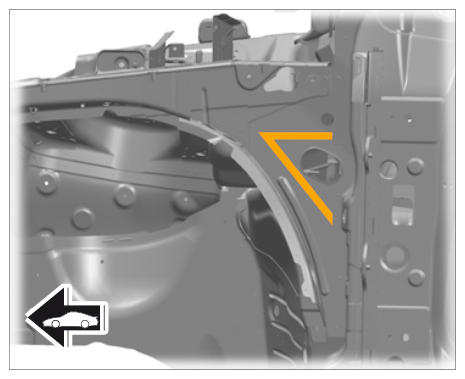

3. Install reinforcements.
   1. 3.1. Apply adhesive to the marked areas.
      Fig 3: Applying Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

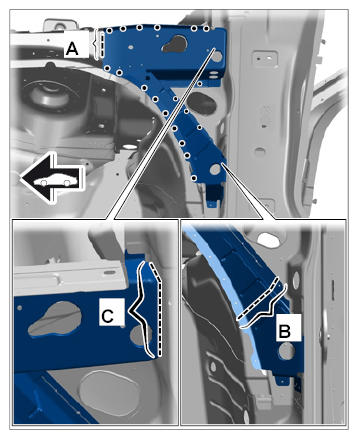

4. Resistance spot-weld the reinforcement.
   1. 4.1. Apply a full weld to the area -A & B-  using inert gas.
   2. 4.2. Spot-weld area -C-  using inert gas.
      Fig 4: Installing Reinforcements

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

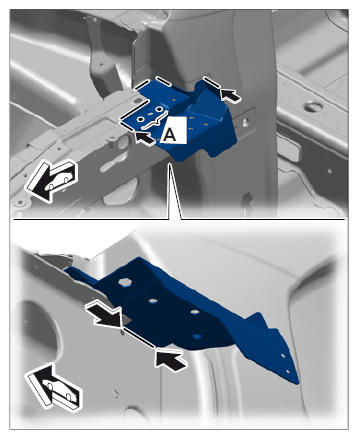

5. Install wing bracket.
   1. 5.1. Resistance spot-weld the wing bracket in area -A-  .
   2. 5.2. Apply a full weld to areas -arrows-  using inert gas.
      Fig 5: Installing Wing Bracket

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install longitudinal member for wheel housing and check that it fits perfectly. Check gap dimensions → 5X00IN DIAGRAM - BODY GAP DIMENSIONS .
   1. 1.1. Apply adhesive to the marked areas. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE→ Application depth: 3.0 mm
      Fig 1: Applying Adhesive Connection Areas Of Body

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Orange	Resistance spot-welding
      Green	Resistance spot-welding + bonding
      Red	Plug-welding/apply a full weld using inert gas without bonding

2. Resistance spot-weld the longitudinal member for the wheel housing.
   1. 2.1. Apply a full weld to the area -arrows-  using inert gas.
      Fig 2: Installing Longitudinal Member For Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install reinforcements.
   1. 3.1. Apply adhesive to the marked areas.
      Fig 3: Applying Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Resistance spot-weld the reinforcement.
   1. 4.1. Apply a full weld to the area -A & B-  using inert gas.
   2. 4.2. Spot-weld area -C-  using inert gas.
      Fig 4: Installing Reinforcements

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Install wing bracket.
   1. 5.1. Resistance spot-weld the wing bracket in area -A-  .
   2. 5.2. Apply a full weld to areas -arrows-  using inert gas.
      Fig 5: Installing Wing Bracket

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
