Removing Lock Carrier Side Section At The Right
- Remove the two air guides for the charge-air cooler, remove charge-air cooler at the lock carrier side section and secure it in the wheel housing.

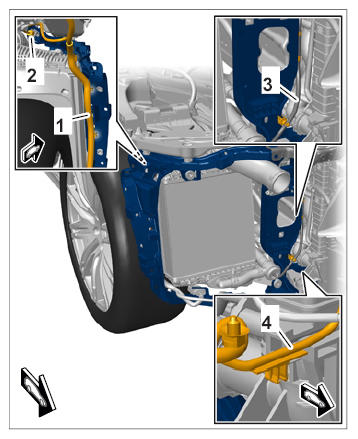

- Unclip wire harness -1-
at the lock carrier side section and remove it from the work area.
- Disconnect electric plug connection on the airbag sensor -2-
.
- Disconnect vacuum line -3-
from the ambient air valve and unclip it on the lock carrier side section.
- Unclip wire harness -4-
on the lock carrier side section.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

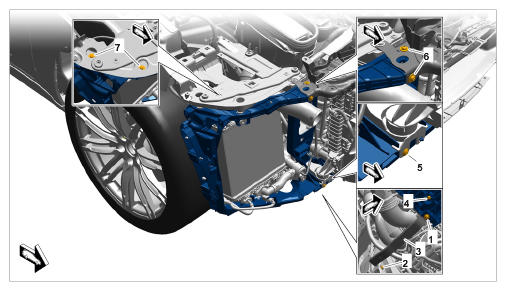

- Unscrew fastening screw -1-
, screw off fastening nut -2-
and remove the right support -3-
.
- Unscrew fastening screw -4-
.
- Unscrew fastening screw -5-
.
- Support the radiator from below using a jack.
- Unscrew fastening screws -6-
.
- Unscrew fastening screws -7-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

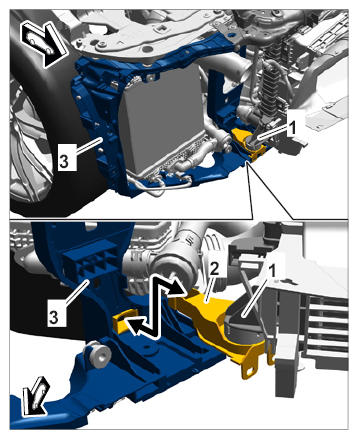

- Carefully pull the radiator -1-
forward, unclip holder -2-
on the lock carrier side section -3-
and carefully remove lock carrier side section -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
