Preparing Connection Areas Of The Longitudinal Member For Installation

  1. Prepare marked areas for bonding and resistance spot-welding → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 .

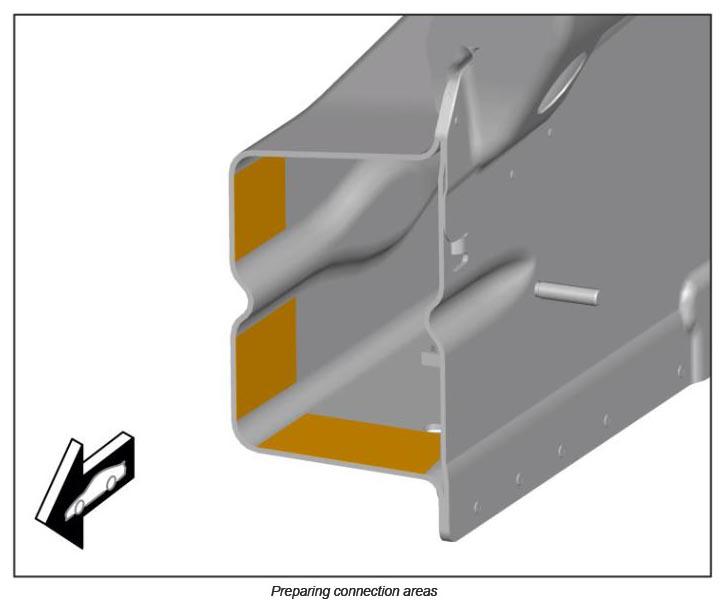

    G12888952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

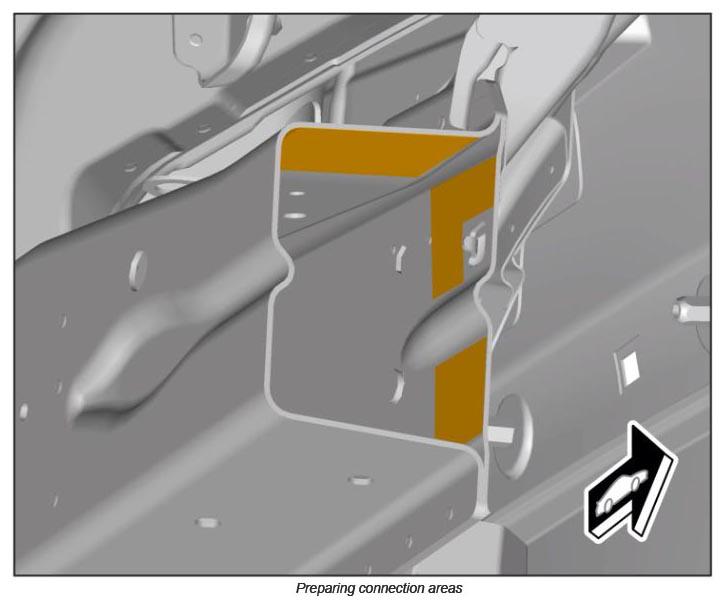

    G12888953Courtesy of PORSCHE CARS NORTH AMERICA, INC.
