WM, 158219 Removing And Installing Cylinder Head Cover: Tools
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Tool denomination |
Type |
Tool number |
Image |
| Flexible-head socket wrench, a/f 8 |
Special tool |
> 9824 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

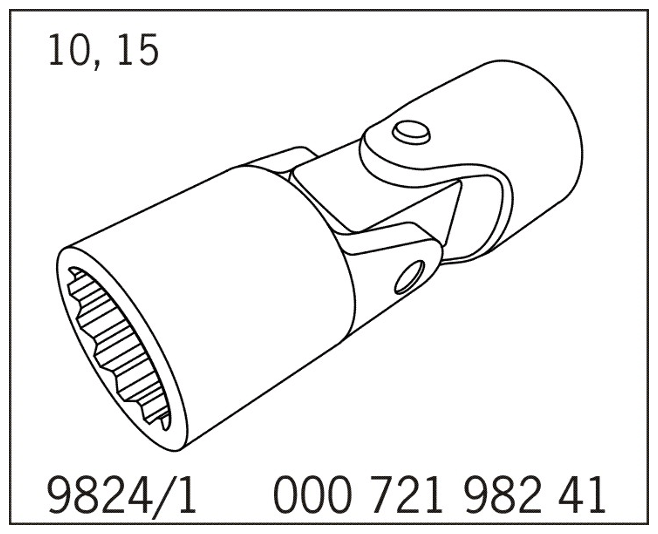

| Flexible-head socket wrench, a/f 10 |
Special tool |
> 9824/1 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

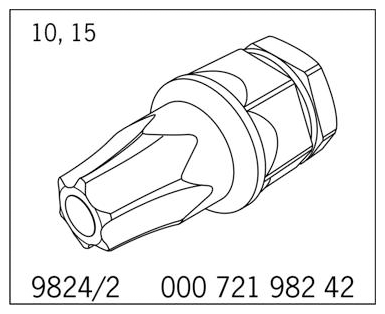

| Torx Micro Bit T30 |
Special tool |
> 9824/2 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

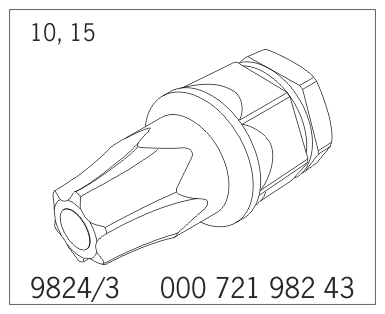

| Torx Micro Bit T45 |
Special tool |
> 9824/3 |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
