Installing Cylinder Head

Information

If cold or excessively low-tempered components are sealed to each other by applying sealant, leaks can occur because of condensed water forming or components distorting. Components must have a uniform temperature of at least 17°C.

Information

• All sealing surfaces must be clean and free of grease!
• It is essential to work carefully!
• Tightening sequences and tightening torques must be observed!

Information

The tightening specifications for the basic engine are stored centrally.

> Refer to 1X00IN Technical values in the appropriate service information.

> Refer to 2X001N Technical values in the appropriate service information.

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. Replace cylinder-head gasket.
2. Place cylinder-head gasket correctly, i.e. according to specifications, onto the straight pins on the engine crank housing. This must be done in such a way that the "Top" marking can be read -illustration-  . Cylinder bank 1 - 4 > Cylinder bank 5 - 8

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

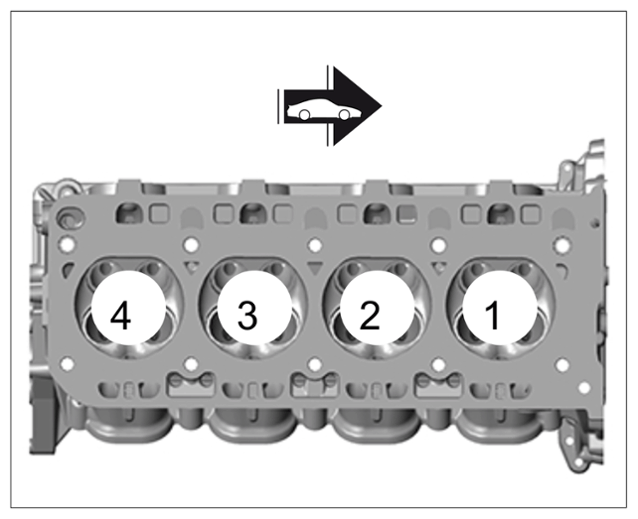

   Cylinder bank 1 - 4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

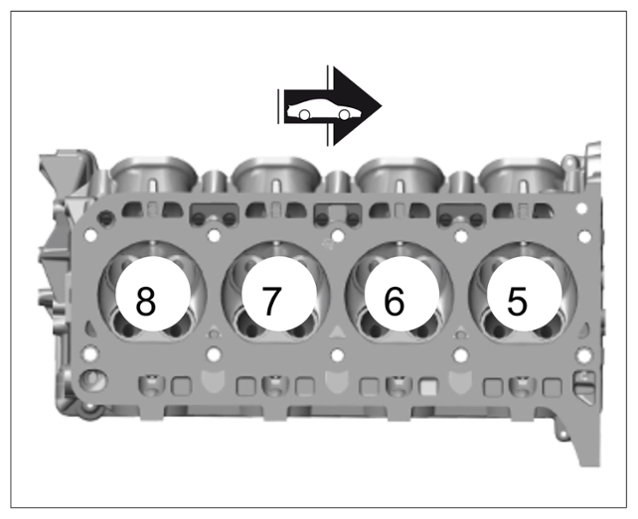

   Cylinder bank 5 - 8

3. Fit cylinder head. Insert cylinder head screws (screws can be re-used). For tightening specifications, see

   > 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

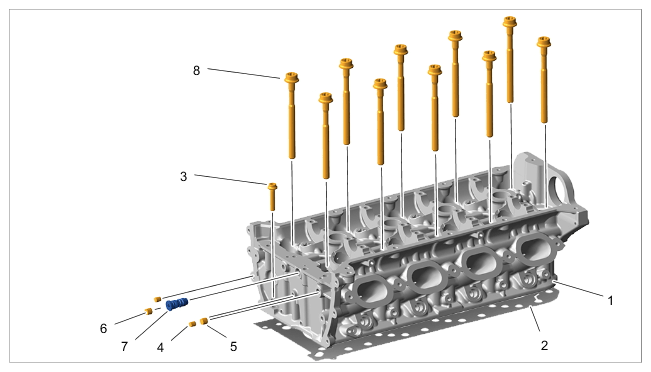

   Fig 1: Cylinder Head 1 To 4 Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head 1 to 4

   1	Cylinder head 1 to 4
   2	Cylinder-head gasket 1 to 4
   3	M8 screw
   4	Cover
   5	Plug
   6	Plug
   7	Restrictor for valve lift adjustment
   8	Cylinder head screws
   9	Spark plug

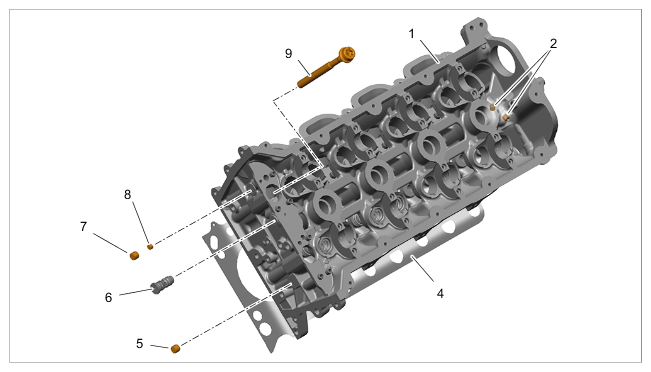

   Fig 2: Cylinder Head 5 To 8 Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head 5 to 8

   1	Cylinder head 5 to 8
   2	Screw plug
   3	Spark plug
   4	Cylinder-head gasket 5 to 8
   5	Plug
   6	Restrictor for valve lift adjustment
   7	Plug
   8	Cover
   9	Cylinder head screws => For tightening specifications, see Tightening sequence for cylinder head

4. Fit front M8 screw to secure the cylinder head of cylinders 1 to 4 to the crankcase. -3-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head 1 to 4

5. Fit the mounting saddle at the front -3-  (cylinder bank 1 to 4 shown).

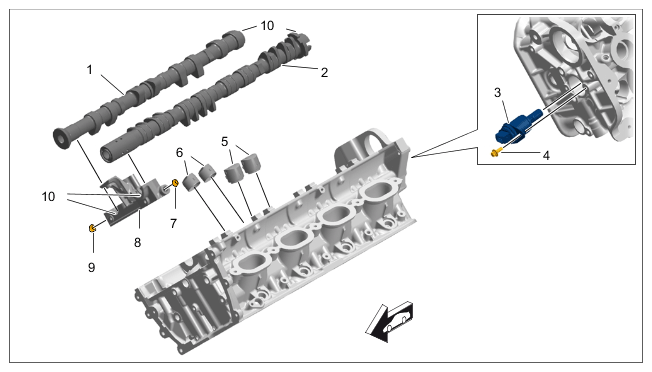

   Fig 3: Camshafts, Cylinder Bank 1 To 4 Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshafts, cylinder bank 1 to 4

   1	Camshaft (outlet)
   2	Camshaft (Intake)
   3	Hydraulic valve for variable valve lift control
   4	Screw, M5 x 12
   5	Switching tappet (oil with engine oil)
   6	Bucket tappet (oil with engine oil)
   7	Plug
   8	Mounting saddle 1 to 4
   9	Plug
   10	Bearing locations (oil with engine oil)
   A	Direction of travel

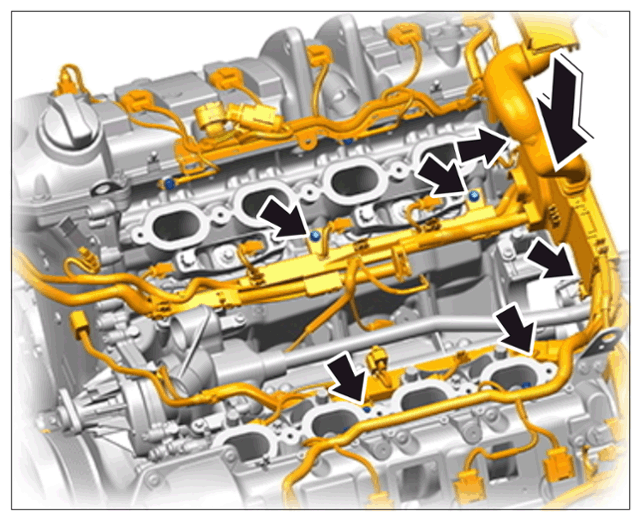

6. Secure wire harness to the engine.

   Position and lay engine wire harness at the engine housing -arrow-  .

   Tighten fastening screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing engine wire harness on engine housing

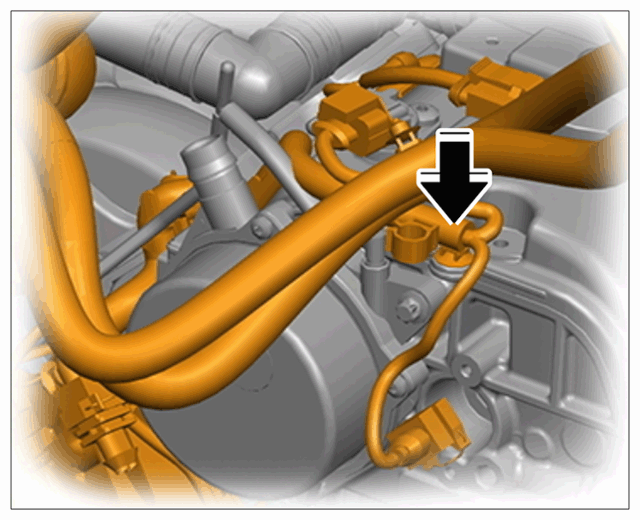

7. Clip in engine wire harness at the rear right using the retaining clip -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in engine wire harness at the rear right

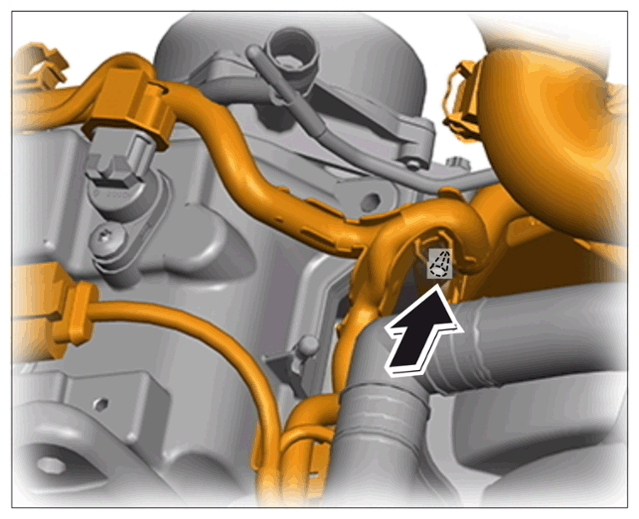

8. Clip in engine wire harness close to the vacuum pump.

   Clip in engine wire harness using the retaining clip -arrow-  .

   Slide engine wire harness onto the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in engine wire harness close to the vacuum pump

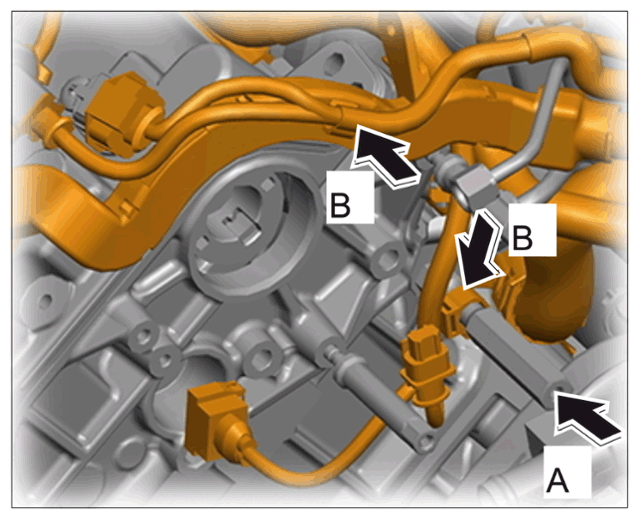

9. Clip in engine wire harness close to the high-pressure pump.

   Screw in and tighten the screw socket -arrow A-  .

   Clip in engine wire harness using the retaining clips -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in engine wire harness close to the high-pressure pump

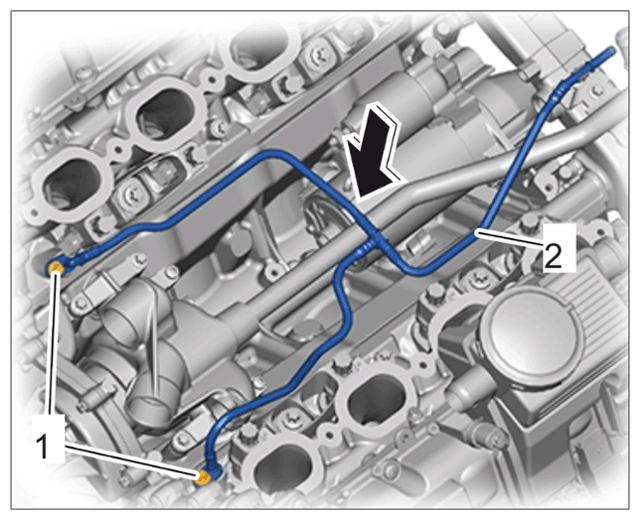

10. Install vent line.

    Position vent line -3-  and clip it into the cable duct -arrow-  .

    Fit fastening screws -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vent line
