Subsequent Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Cylinder bank 1 to 4:
Install vacuum pump

> WM 477619 REMOVING AND INSTALLING VACUUM PUMP (ALL MODELS)
Cylinder bank 5 to 8:
Secure water tube.
Fit holder for cooling water tube To do this, fit a hexagon-head bolt
> Tightening torque 10 (7.5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

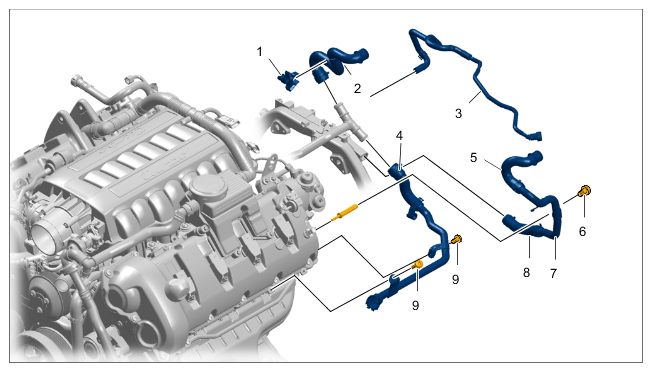

Peripheral engine cooling water tubes
Install cross panel
> WM 508119 REMOVING AND INSTALLING CROSS PANEL (DISASSEMBLING PLENUM PANEL) (EXCEPT PANAMERA EXECUTIVE, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)
