Preliminary Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Remove right air guide on turbo engine. For details, see
> 242719 REMOVING AND INSTALLING AIR-CLEANER COWL

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

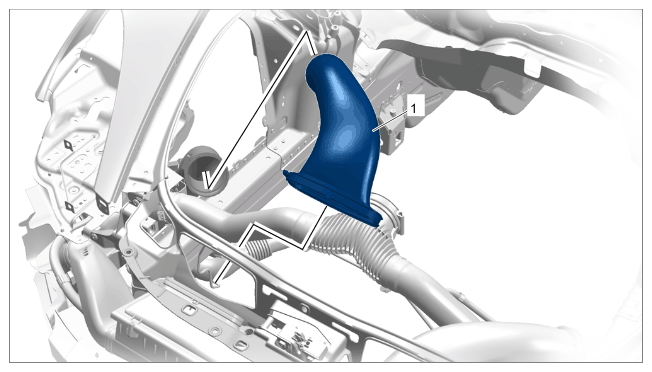

Air cleaner outlet on turbo engine, right

1 Right intake manifold

Remove front wheel housing liner at the right.
> WM 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA
Loosen intake manifold.
