Subsequent Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install oil pressure indicator sensor with adapter.

    > 170419 REMOVING AND INSTALLING OIL PRESSURE INDICATOR

  2. Install the chain tensioner.

    > 153619 REMOVING AND INSTALLING CHAIN TENSIONER

  3. Install alternator.

    > 272219 REMOVE AND INSTALL THE GENERATOR

  4. Install turbocharger suction and pressure hose on cylinder bank 1.
  5. Install joint flange on crankshaft sealing ring for belt pulley.

    > 137419 REMOVE AND INSTALL CRANKSHAFT SEALING RING FOR BELT PULLEY/VIBRATION DAMPER

  6. Dismantle the staking tool on the camshafts of both cylinder banks.
  7. Install belt pulley.

    > 137619 REMOVING AND INSTALLING BELT PULLEY (VIBRATION DAMPER)

  8. Check the timing V6 Biturbo.

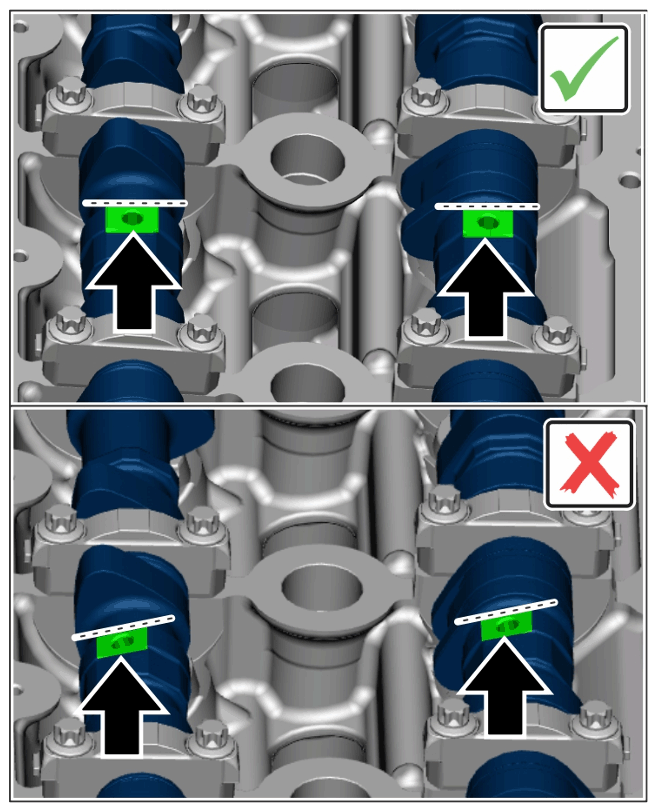

    G15198117Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    TDC position of camshafts - shown on the V6 biturbo as an example

    Turn the engine two turns clockwise to TDC of cylinder 1  and lock the belt pulley using 9595/1 - locating pins  .

    Check the position of the camshafts -Arrows-  . The surfaces for the camshaft adjustment must be horizontal.

    1. 8.2.1  If the control chain is still in the same position as it was during removal, remove 9595/1 - locating pins  and continue with Step  7.
    2. 8.2.2  Only set the timing if the control chain has skipped.

      > 150516 SET THE TIMING FOR CAMSHAFTS

  9. Check the timing on V6 3.6 and V8.

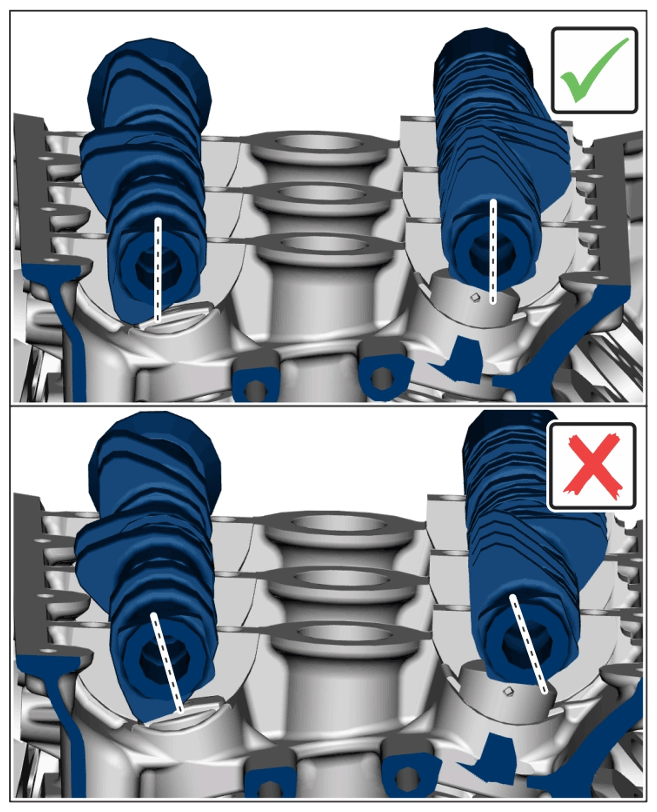

    G15198118Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    TDC position of camshafts

    Turn the engine two turns clockwise to TDC of cylinder 1  and lock the belt pulley using 9595/1 - locating pins  .

    Check camshaft adjustment.

    1. 9.2.1  If the control chain is still in the same position as it was during removal, remove 9595/1 - locating pins  and continue with Step  7.
    2. 9.2.2  Only set the timing if the control chain has skipped.

      > 150516 SET THE TIMING FOR CAMSHAFTS

  10. Install both cylinder head covers.

    > 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

  11. Install coolant pump belt pulley.
    G15198119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws for coolant pump belt pulley

  12. Install the drive belt.

    > 137819 REMOVING AND INSTALLING DRIVE BELT

  13. Completely dismantle the lock support panel and bumper with all radiators.
    G15198120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Radiator assembly with lock support panel and bumper - Example V6 Biturbo

    > WM 503809 LOOSENING AND SECURING LOCK CARRIER (SERVICE POSITION) (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)

    Fit complete radiator assembly with the help of another person.

    In addition, carry out the following steps:

    Fit ATF supply and return hose -Arrows-  .

    G15198121Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply and return hose for transmission oil cooler

    Fit hydraulic lines to the power-steering radiator

    G15198122Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hydraulic oil lines

    Secure wire harness to cooling fan housing -1 to 4-  .

    G15198123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping wire harness

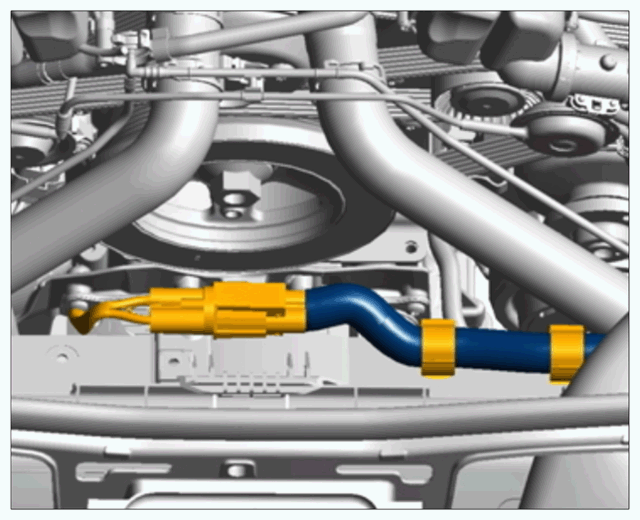

    Plug in electric push-on connector for electric fan.

    G15198124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric fan electric plug connection

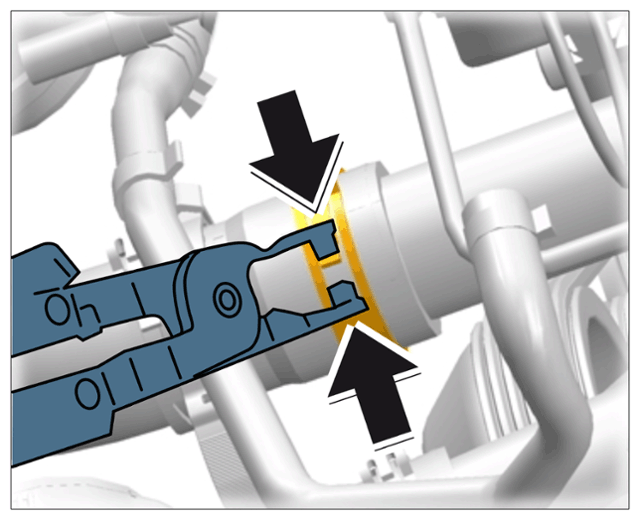

    Attach the clamp for the coolant hoses -Arrows-  on the aluminium pipes for the thermostat housing at both sides

    G15198125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses

    Fit refrigerant lines with new O-rings and fit screws for -1, 2-  the refrigerant lines on the condenser.

    G15198126Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Refrigerant lines on condenser

    Connect electric plug connections.

  14. Fit the cover for the throttle body completely with both molded hoses.

    > WM, 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING (Y-SHAPED PIPE AHEAD OF THROTTLE VALVE)

  15. Install the front bumper.

    > WM 631519 REMOVING AND INSTALLING FRONT APRON (EXCEPT PANAMERA EXECUTIVE, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.)

  16. Add refrigerant.

    > WM 870317 DRAINING AND FILLING REFRIGERANT (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)

  17. Refill coolant.

    > 193817 DRAINING AND FILLING IN COOLANT (INCLUDES BLEEDING)

  18. Filling engine oil.

    > 170117 DRAIN AND FILL ENGINE OIL (CHANGING ENGINE OIL)

  19. Connect the battery.

    > 270619 REMOVE AND INSTALL THE BATTERY



  1. Install oil pressure indicator sensor with adapter.

    > 170419 REMOVING AND INSTALLING OIL PRESSURE INDICATOR

  2. Install the chain tensioner.

    > 153619 REMOVING AND INSTALLING CHAIN TENSIONER

  3. Install alternator.

    > 272219 REMOVE AND INSTALL THE GENERATOR

  4. Install turbocharger suction and pressure hose on cylinder bank 1.
  5. Install joint flange on crankshaft sealing ring for belt pulley.

    > 137419 REMOVE AND INSTALL CRANKSHAFT SEALING RING FOR BELT PULLEY/VIBRATION DAMPER

  6. Check the timing.
    G15198164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    TDC position of camshafts

    Turn the engine two turns clockwise to TDC of cylinder 1  and lock the belt pulley using 9595/1 - locating pins  .

    Check camshaft adjustment.

    1. 6.2.1  If the control chain is still in the same position as it was during removal, remove 9595/1 - locating pins  and continue with Step 7.
    2. 6.2.2  Only set the timing if the control chain has skipped.

      > 150516 SET THE TIMING FOR CAMSHAFTS

  7. Install belt pulley.

    > 137619 REMOVING AND INSTALLING BELT PULLEY (VIBRATION DAMPER)

  8. Install both cylinder head covers.

    > 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER

  9. Install coolant pump belt pulley.

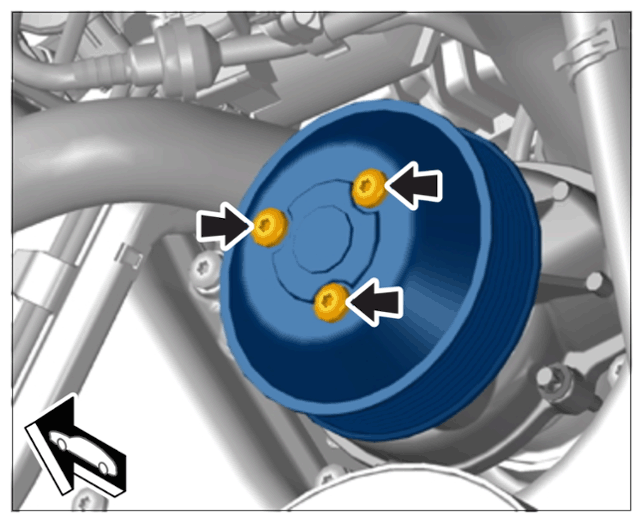

    G15198165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws for coolant pump belt pulley

  10. Install the drive belt.

    > 137819 REMOVING AND INSTALLING DRIVE BELT

  11. Completely dismantle the lock support panel and bumper with all radiators.

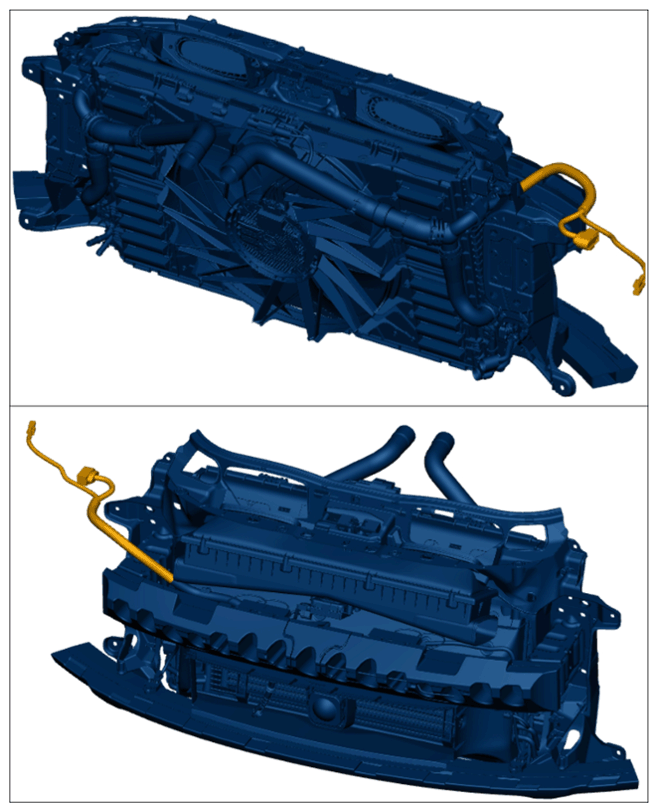

    G15198166Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Radiator assembly with lock support panel and bumper - Example V6 Biturbo

    > WM 503809 LOOSENING AND SECURING LOCK CARRIER (SERVICE POSITION) (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA TURBO S, PANAMERA TURBO S EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)

    Fit complete radiator assembly with the help of another person.

    In addition, carry out the following steps:

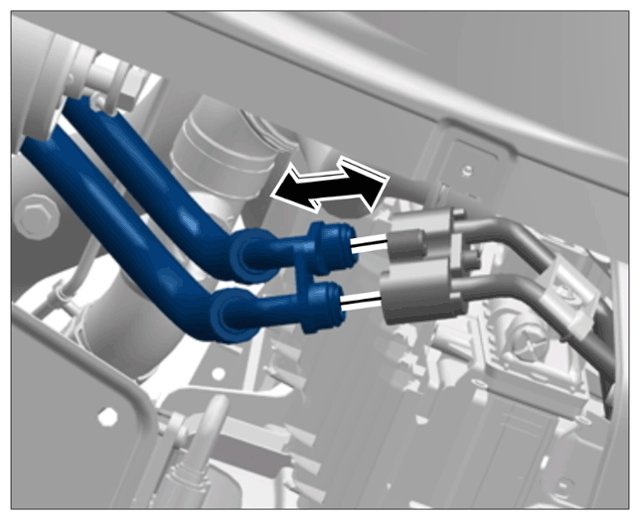

    Fit ATF supply and return hose -Arrows-  .

    G15198167Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply and return hose for transmission oil cooler

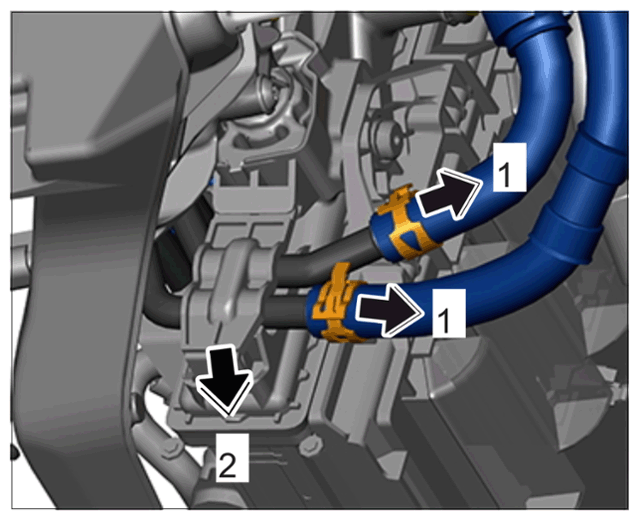

    Fit hydraulic lines to the power-steering radiator

    G15198168Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hydraulic oil lines

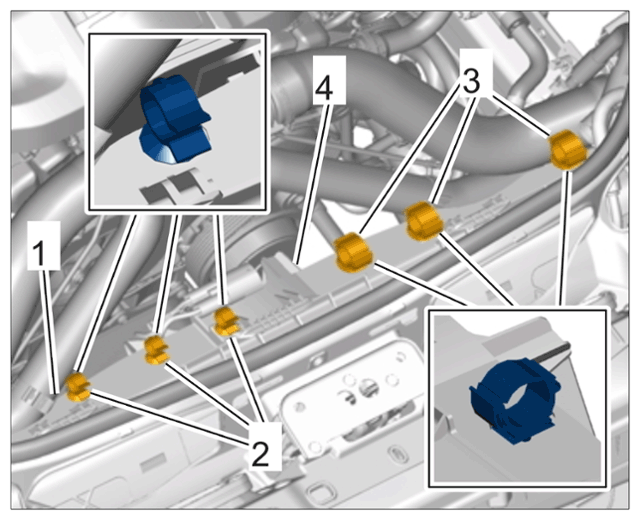

    Secure wire harness to cooling fan housing -1 to 4-  .

    G15198169Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping wire harness

    Plug in electric push-on connector for electric fan.

    G15198170Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric fan electric plug connection

    Attach the clamp for the coolant hoses -Arrows-  on the aluminium pipes for the thermostat housing at both sides

    G15198171Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hoses

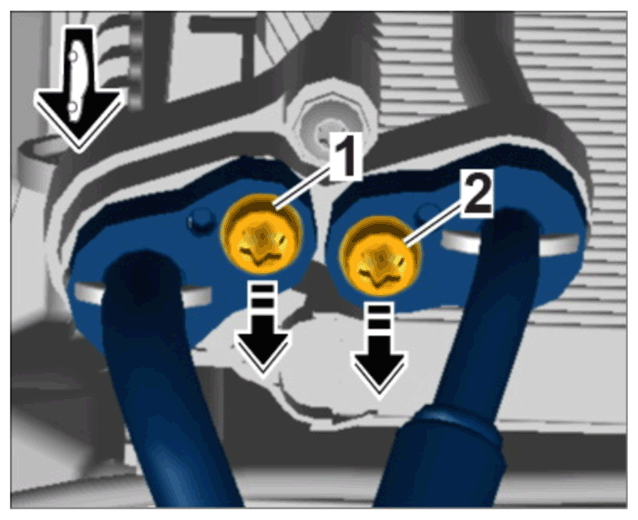

    Fit refrigerant lines with new O-rings and fit screws for the refrigerant lines on the condenser.

    G15198172Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Refrigerant lines on condenser

    Connect electric plug connections.

  12. Fit the cover for the throttle body completely with both molded hoses.

    > WM, 243519 REMOVING AND INSTALLING AIR BOX FOR THROTTLE HOUSING (Y-SHAPED PIPE AHEAD OF THROTTLE VALVE)

  13. Install the front bumper.

    > WM 631519 REMOVING AND INSTALLING FRONT APRON (EXCEPT PANAMERA EXECUTIVE, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.)

  14. Add refrigerant.

    > WM 870317 DRAINING AND FILLING REFRIGERANT (EXCEPT PANAMERA S EXECUTIVE, PANAMERA EXECUTIVE, PANAMERA 4 S EXECUTIVE, PANAMERA TURBO EXECUTIVE, PANAMERA GTS, PANAMERA 4S SPORT EDITION, PANAMERA 4 EXECUTIVE)

  15. Refill coolant.

    > 193817 DRAINING AND FILLING IN COOLANT (INCLUDES BLEEDING)

  16. Filling engine oil.

    > 170117 DRAIN AND FILL ENGINE OIL (CHANGING ENGINE OIL)

  17. Connect the battery.

    > 270619 REMOVE AND INSTALL THE BATTERY
