Preliminary Work

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following repair instructions are only relevant for disassembling the engine.

In the event of a leaking chain housing cover, refer to the document
> 153351 SEALING CHAIN HOUSING COVER (ENGINE INSTALLED)

Removing engine.
> 100119 REMOVE AND INSTALL ENGINE
Remove transmission from engine
> Refer to 343527 Removing and mounting transmission in the appropriate service information.

or

> WM 373427 REMOVING AND MOUNTING PORSCHE DOPPELKUPPLUNG (PDK) (EXCEPT PANAMERA S E-HYBRID, PANAMERA S HYBRID, PANAMERA EXECUTIVE, PANAMERA GTS, PANAMERA TURBO S,)

> 1001IN SECURE ENGINE ON ASSEMBLY SUPPORT (MOUNTING BRACKET)
Drain engine oil. For details, see
> 170117 DRAINING AND FILLING IN ENGINE OIL (CHANGING ENGINE OIL)
Remove drive belt. For details, see
> 137819 REMOVING AND INSTALLING DRIVE BELT

Remove coolant hoses in front of the chain housing cover. Don't forget the holder. Coolant return line on turbo, for example

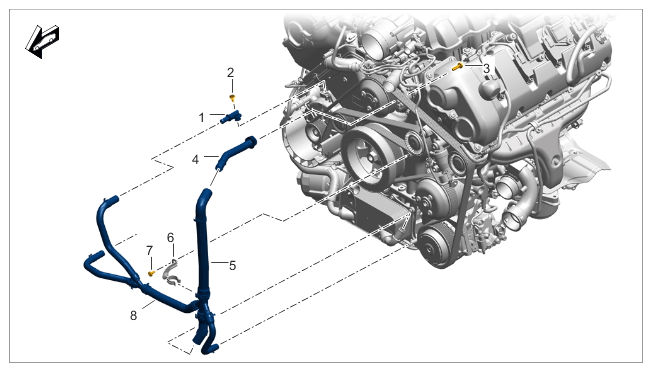

Fig 1: Coolant Return Line Components Location (Turbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant return line on turbo, for example

1	Connection piece on alternator
2	Connection piece screw
3	Screw, M6 x 20
4	Coolant return line
5	Coolant return hose assembly
6	Bracket
7	M6 screw Aluminium screw; always use new aluminium screws
8	Coolant hoses

Removing both valve covers.
> 158219 REMOVE AND INSTALL CYLINDER HEAD COVER
Remove vibration damper.
> 137619 REMOVE AND INSTALL BELT PULLEY (VIBRATION DAMPER)
Removing joint flange behind the vibration damper and do not re-installed old flange.
> 137419 REMOVE AND INSTALL CRANKSHAFT SEALING RING FOR BELT PULLEY/VIBRATION DAMPER
Removing oil pan and oil guide housing.
> 175019 REMOVE AND INSTALL OIL PAN
