Aligning Chain Housing Cover Using A Dial Gauge

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The chain housing cover must not project over the crankcase

Maximum offset: 0.1 mm

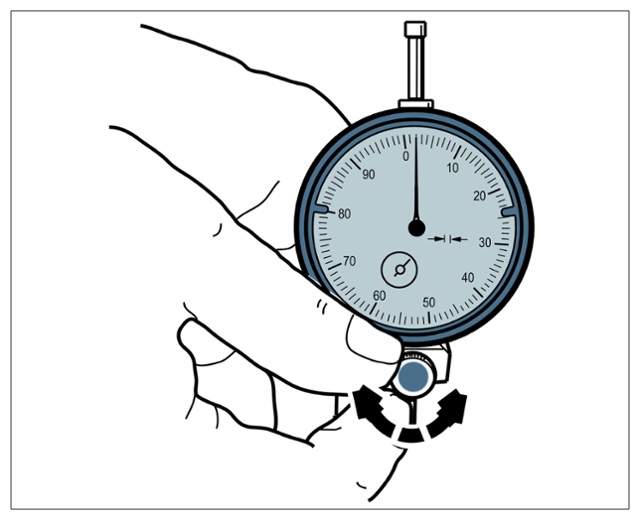

Insert the dial gauge Into the universal dial gauge bracket and position it so that the dial gauge has a preload of about 1 mm. Adjusting preload

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting preload

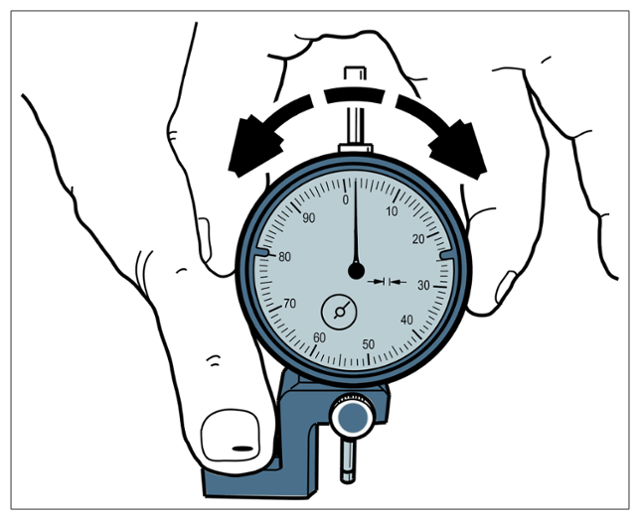

Set dial gauge scale to 0. To do this, place the dial gauge holder on a completely flat surface (e.g. crankcase flange) and turn the dial gauge scale until the pointer is on 0. Setting dial gauge scale to zero

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Setting dial gauge scale to zero

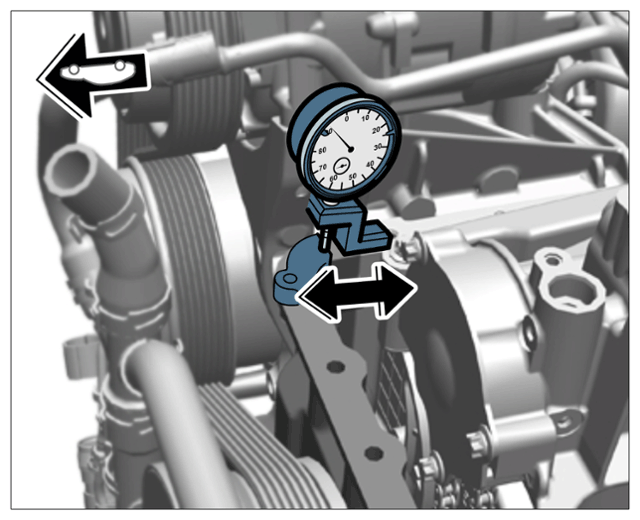

Measure offset. To do this, push with the bracket starting from the lower part of the crankcase towards the chain housing cover (the base of the dial gauge bracket is not located on the same component as the dial gauge probe) and measure the offset Measuring offset. The chain housing cover must not be set back by more than 0.1 mm. A projection is not permissible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring offset

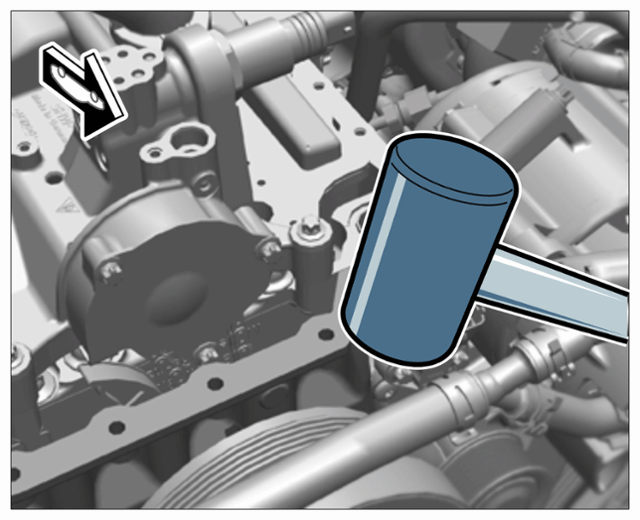

Align the chain housing cover by tapping lightly with a rubber hammer. Aligning chain housing cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Aligning chain housing cover
Once you have aligned the chain housing cover, tighten two fastening screws on the left and right of the chain housing cover base hand-tight. Then check the position of the chain housing cover again using the dial gauge. Measuring offset

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring offset
