Modification To Chain Housing Cover Seal From Mid-2010
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
- A modified metal seal has been used for the chain housing cover since mid-2010.
- The modified metal seal has an open cut-out on the side for applying sealant instead of the closed top opening.
- Existing metal seals can be used up.
- The sealant must be applied along the new contour as shown in the illustration.
- The small, closed top openings are filled with sealant in the familiar way.

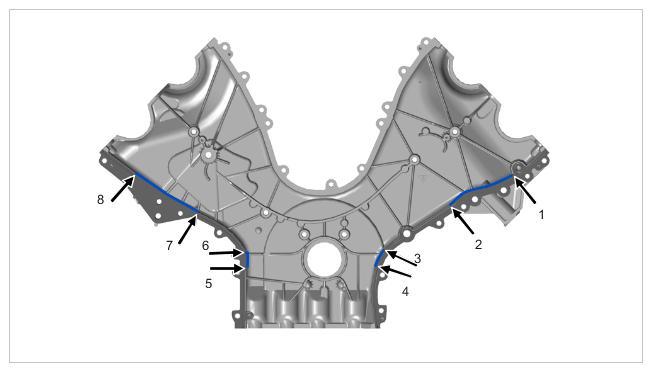

Sealant application - new
| 1, 2 | Sealant application next to the metal seal on the chain housing cover |
| 3, 4 | Sealant application in the opening in the metal seal on the chain housing cover |
| 5, 6 | Sealant application in the opening in the metal seal on the chain housing cover |
| 7, 8 | Sealant application next to the metal seal on the chain housing cover |

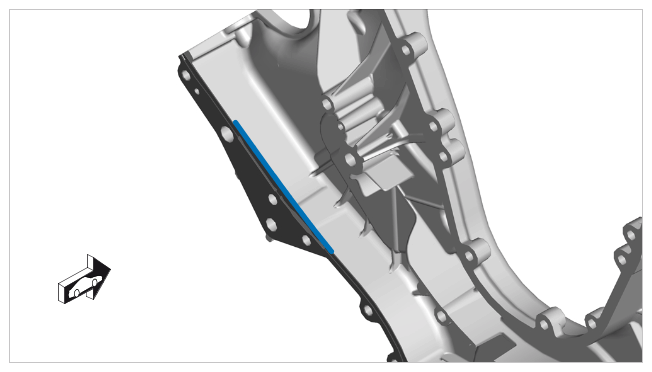

Sealant application to right cylinder bank near the chain tensioner

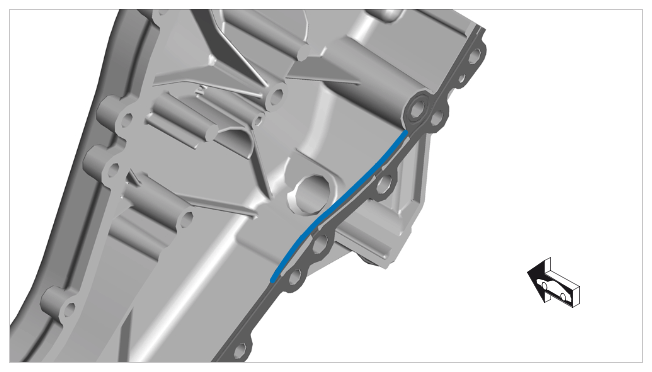

Sealant application to left cylinder bank
