Component Overview

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

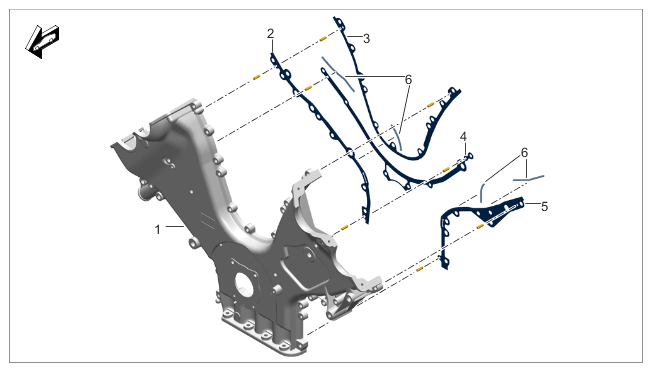

Fig 1: Chain Housing Cover Seals Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain housing cover seals

1	Chain housing cover
2	Chain housing cover seal, outer right (fill openings with sealant, see 6)
3	Inner chain housing cover seal
4	Chain housing cover rib seal
5	Chain housing cover seal, outer left (fill openings with sealant, see 6)
6	Sealant application on tinning chain housing; Loctite 5900 (000.043.204.35 status 10/08)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

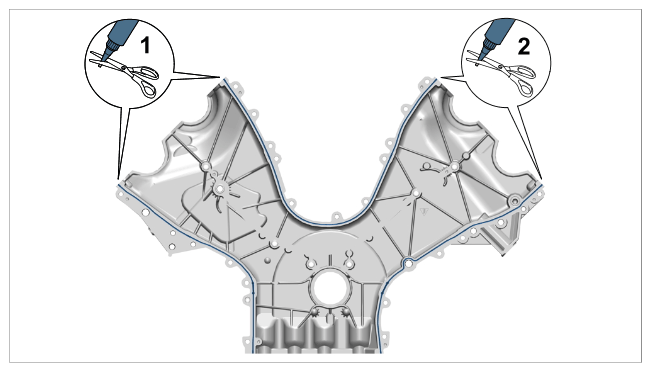

Applying sealant (filling openings in metal seal)

1	When chain housing cover is fitted, apply sealant to joint before fitting valve covers
2	When chain housing cover is fitted, apply sealant to joint before fitting valve covers

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

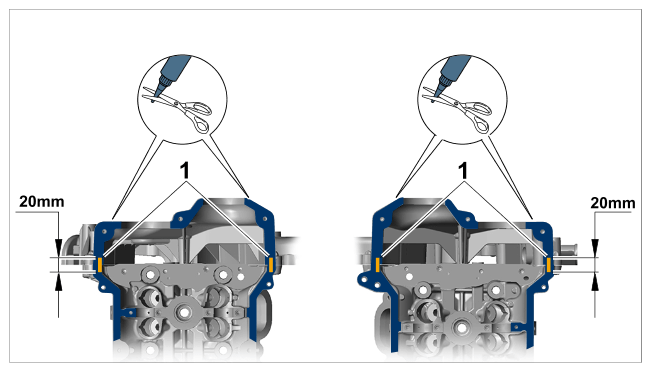

Applying sealant before fitting valve covers

1	When chain housing cover is fitted, apply sealant to joint before fitting valve covers

20 mm Length of sealant applied to joint

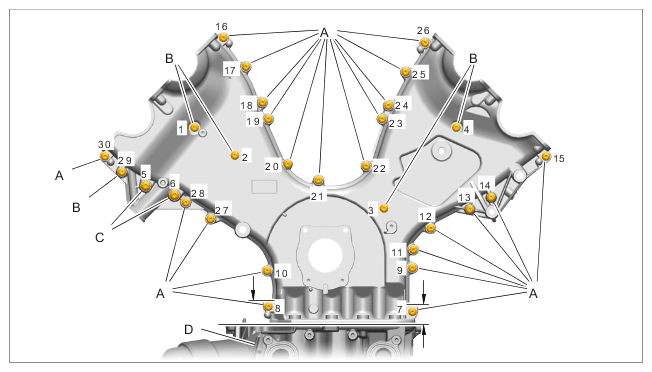

Fig 2: Chain Housing Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for chain housing cover

A	Aluminium screw, M6 x 30; timing-case cover to crankcase and cylinder head; always use new aluminium screws
B	Aluminium screw, M6 x 55; inner part of timing-case cover to upper part of crankcase and cylinder head; always use new aluminium screws; outer part of timing-case cover to cylinder head
C	Aluminium screw, M8 x 55; timing-case cover (chain tensioner position) to upper part of crankcase and cylinder head; always use new aluminium screws
D	The chain housing cover must be level with the lower part of the crankcase (use a steel rule or dial gauge)

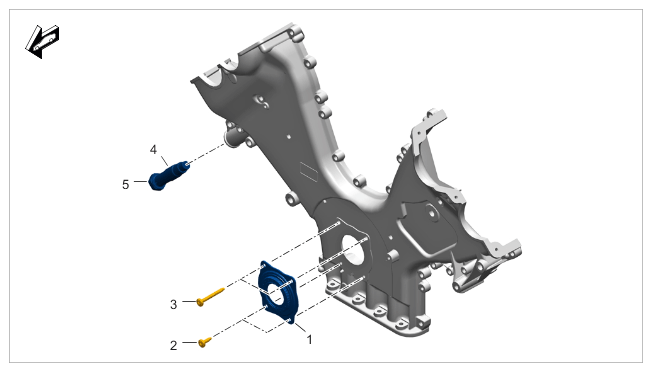

Fig 3: Chain Tensioner, Joint Flange Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner, joint flange

1	Joint flange (oil sealing lip with engine oil); align with sleeve or vibration balancer/replace
2	Aluminium screw, M6 x 20; always use new aluminium screws
3	Aluminium screw, M6 x 55 c'ways use new aluminium screws
4	Sealing ring; always replace
5	Chain tensioner
