Overview Of Tools And Materials

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

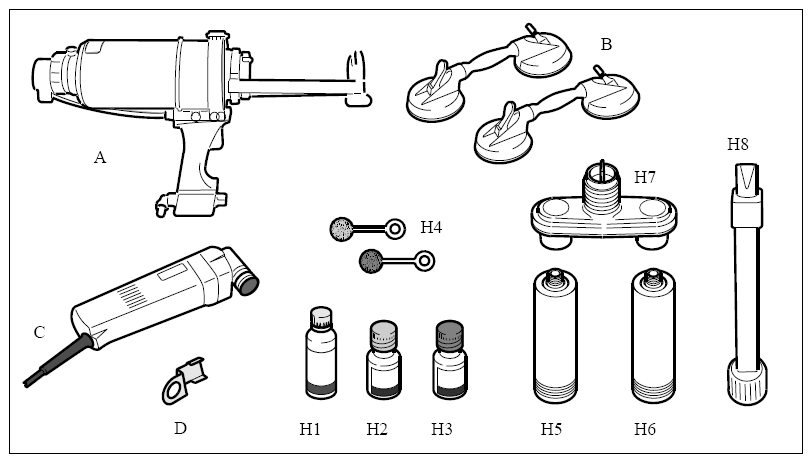

G11984393

A  - Double cartridge gun VAS 5237; see Workshop Equipment Manual, Chapter 3.5

B  - Suction cups VAG 1344; see Workshop Equipment Manual, Chapter 3.5

C  - Special electric cutter (fine) VAG 1561 A; see Workshop Equipment Manual, Chapter 3.5

D  - Flashing knife, U-shape 639.031.130.22; see Parts Catalogue, Main Group 8

H  - 2-component window adhesive, contains set components H1-H8; see Parts Catalogue, Main Group 8

H1  - Cleaning solution

H2  - Primer

H3  - Activator

H4  - Swab

H5  - Cartridge, component A

H6  - Cartridge, component B

H7  - Mixing nozzle

H8  - Processing nozzle
