Technical Values -66- Rear-View Mirror

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Screw → Tightening torque: 1.4 Nm (1 ftlb.)

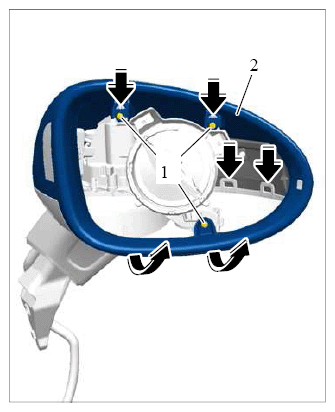

Removing rear-view mirror housing (upper part)

Releasing rear-view mirror housing (lower part)

1 - Screw → Tightening torque: 20 Nm (15 ftlb.)

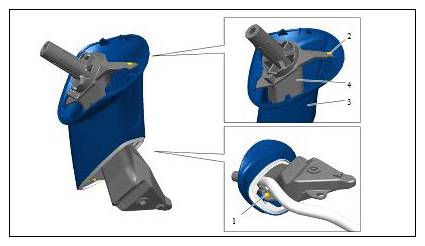

Mirror base cover

1, 2 - Screw → Tightening torque: 0.9 Nm (0.5 ftlb.)

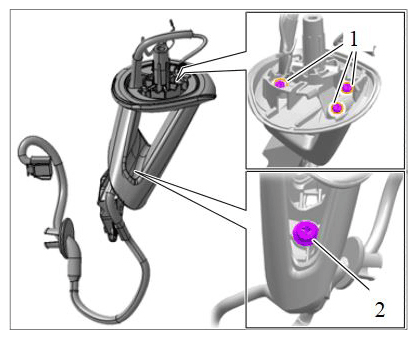

1 - Screws → Tightening torque: 5 Nm (3.5 ftlb.)+/-0.1 Nm (+/-0.1 ftlb.)

2 - Screw → Tightening torque: 20 Nm (15 ftlb.)

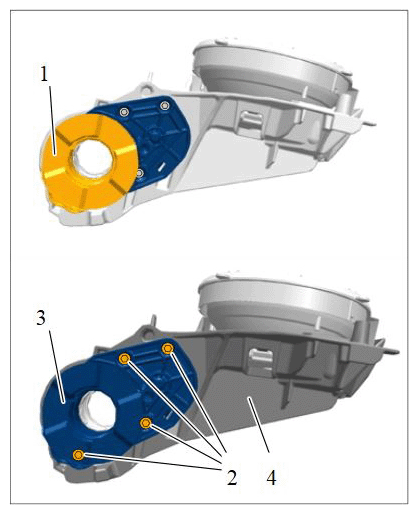

V-shaped mirror base cover

2 - Screw → Tightening torque: 1.7 Nm (1.5 ftlb.)

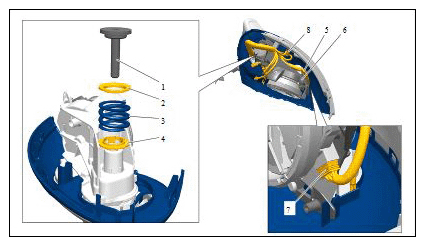

Removing mirror adjusting motor (folding function)

1 - Screw → Tightening torque: 1.4 Nm (1 ftlb.)

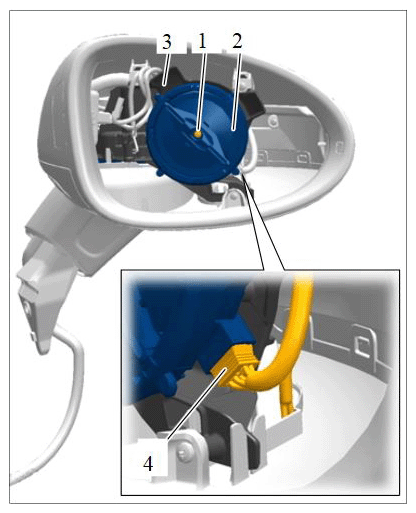

Removing mirror adjusting motor (mirror glass)

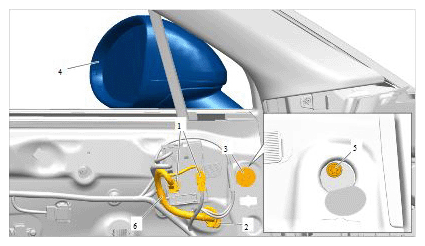

Removing rear-view mirror

5 - Screw → Tightening torque: 23 Nm (17 ftlb.)
