Removing Halogen Bulb
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Incorrect handling of bulbs
- Risk of damage to bulbs and the bulb housing
→ Switch off ignition and remove ignition key.
→ Switch off the relevant loads when changing bulbs.
→ Only use bulbs listed in the bulb table.
→ Only install clean bulbs that are free of grease.
→ Always use a cloth or soft paper when working with bulbs.
→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.
→ In certain states, it is compulsory to carry spare light bulbs.
- Switch off position lights.
- Switch off ignition and pull remote control out of ignition lock.

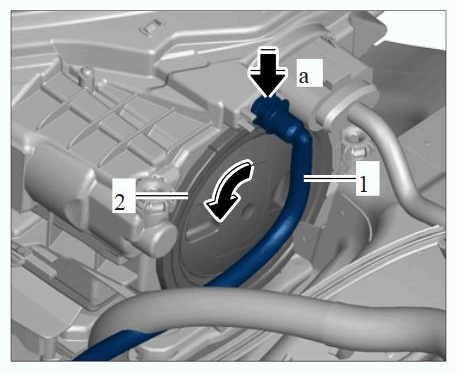

- Release hose connection for the breather hose -1- (-a- ) and pull it off the headlight.
- Turn the rear cover -2-
in direction of arrow and remove it.
Removing rear cover

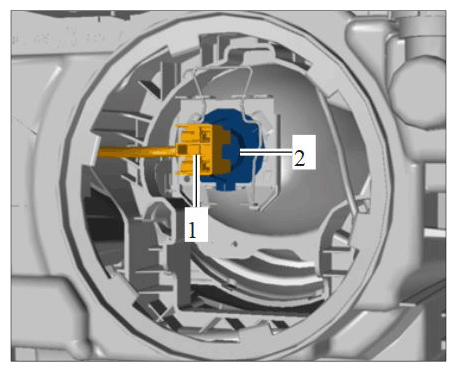

- Pull electric plug connection -1-
off the halogen bulb -2-
.
Disconnecting electric plug connection

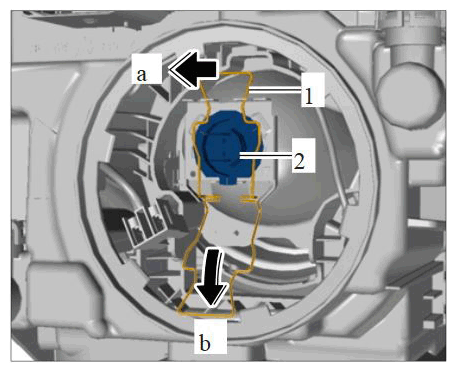

- Press clip -1- at the top forward, unhook at the sides -a- and bend it down -b- .
- Remove halogen bulb -2-
from the headlight.
Removing halogen bulb
