Installing Positive Crankcase Ventilation Valve

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install positive crankcase ventilation valve -1-  .
    1. 1.1. Check sealing rings -4-  and -5-  replace them if necessary.
    2. 1.2. Position positive crankcase ventilation valve -1-  on the cylinder head cover.
    3. 1.3. Screw in screw -6-  and tighten it
    4. 1.4. Secure line -2-  .

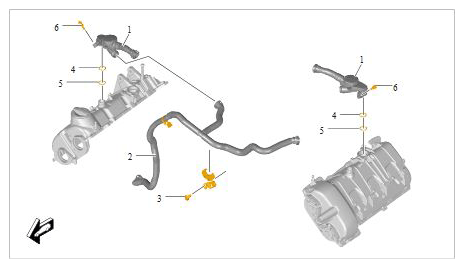

    G11980318

    Positive crankcase ventilation
