Removing Porsche Doppelkupplung (PDK)

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The pictures shown in this document may differ from the original.

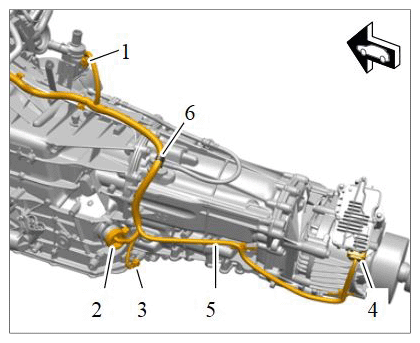

Disconnect electric plug connections -1...4- , release holder -6- and place wire harness -5- on the engine.

Transmission wire harness

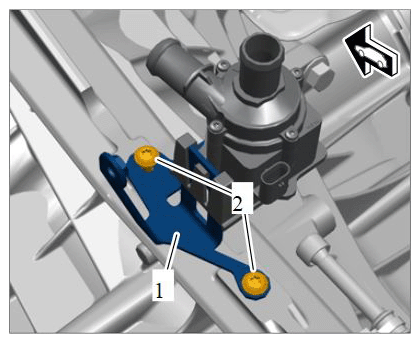

Unscrew fastening screws -2- and disconnect holder -1 - with auxiliary pump from the transmission.

Auxiliary pump holder

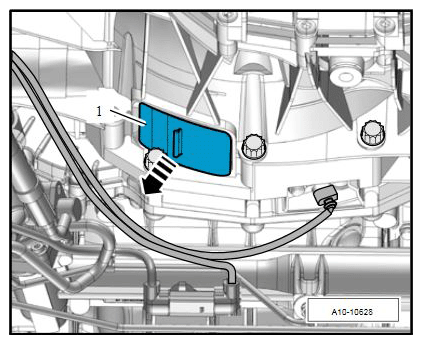

Pull off cover on drive plate -arrow- at the underside of the transmission.

Cover on drive plate

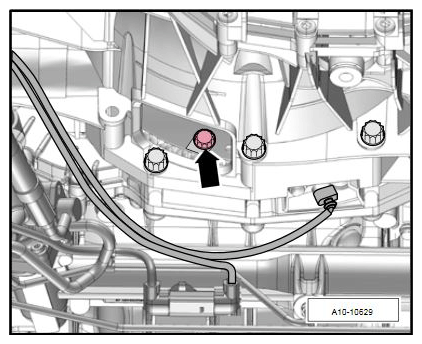

Loosen dual-mass flywheel from the drive plate.
1. 4.1. Unscrew fastening screw -arrow- .
  Counter at the crankshaft when loosening the screws.
2. 4.2. For the next screw, turn the crankshaft a further 60° in direction of rotation of the engine .

  Dual-mass flywheel

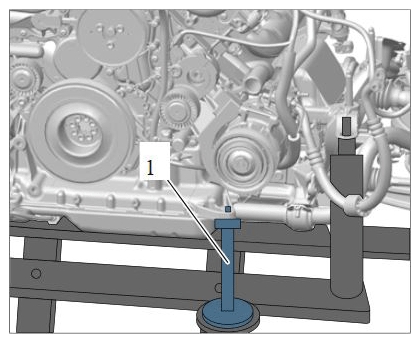

Secure the engine to prevent it from slipping using support from assembly fixture - Panamera WE 1367 -1- .

Supporting the engine
NOTE:
Engine/transmission is supported on the oil pan.
- Leaks at the oil pan
→ Use prescribed tools and aids.

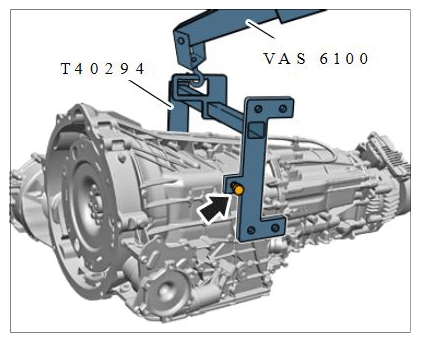

Use hook and support tool T40294 to secure the transmission to the workshop crane WE 1188 .
1. 6.1. Hook and support tool T40294 must be engaged in the housing bores on the right.
2. 6.2. Fit knurled screw -arrow- at the left on the transmission.

  Transmission on retaining device T40294

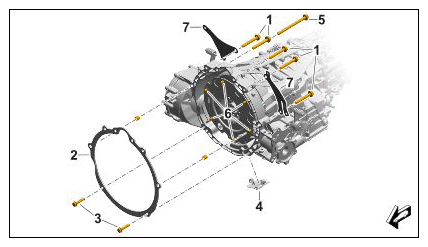

Loosen fastening screws -1 and 5- and remove transmission.
Check clearance during removal.
1. 7.1. Remove spacer -2- from the dowel sleeves.
