Securing Porsche Doppelkupplung (PDK) to Mounting Bracket

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

→ Secure components to prevent them from falling down.

  1. Hook and support tool T40294  must be engaged in the housing bores at the right side of the transmission and secured using the knurled screw -arrow-  at the left side of the transmission.

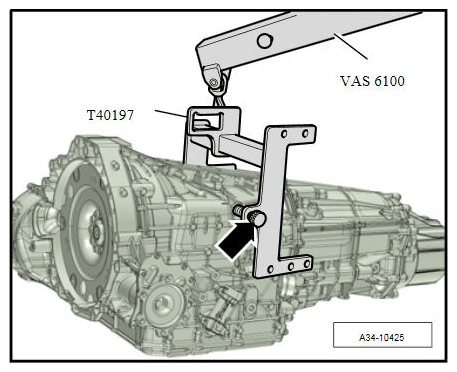

    G11983488

    Hook and support tool T40294

  2. Support plate VW309A  must be screwed to the hook and support tool T40294  .
    1. 2.1.

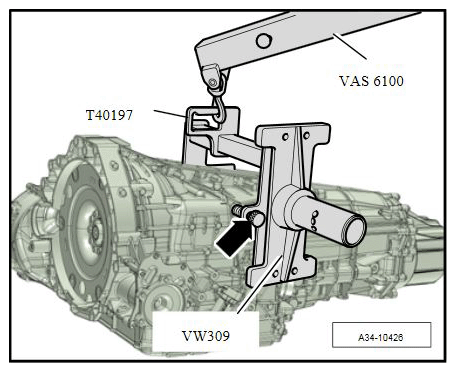

      G11983489

      Securing hook and support tool to Porsche Doppelkupplung (PDK)

  3. Use the workshop crane WE 1188  to fit the transmission into the engine and gearbox support WE 1323  .

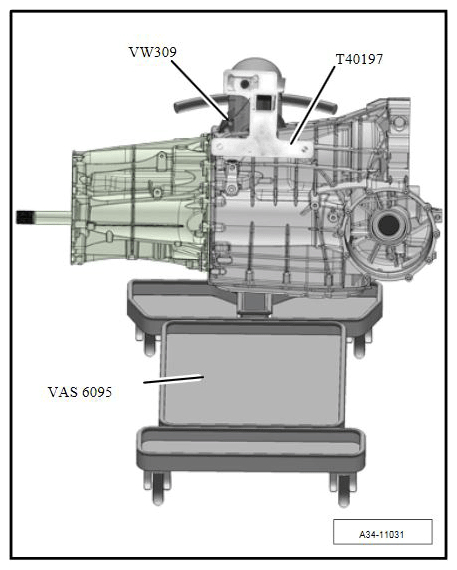

    G11983490

    Mounting bracket for transmission
