Removing Covering Frame For Centre Console

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Move front seats to the very front position.
  2. Unclip covering frame -1-  in the upper area -arrows-  on the center console -2-  and guide it out.
  3. Unclip covering frame -1-  at all fixing clips and remove from the center console -2-.

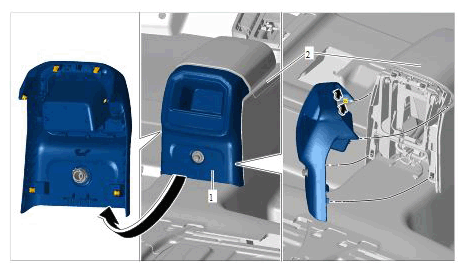

    G11981505

    Mounting for covering frame for center console

  4. Release electric plug connection -1-  for the 12 V socket and disconnect it.
  5. Release and disconnect electric plug connections -2-  at the rear seat heating controls.
  6. Release electric plug connection -3-  for KESSY antenna and disconnect it.
  7. Remove covering frame -4-.

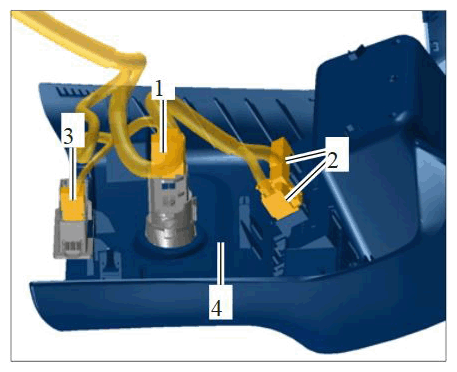

    G11981506

    Electric plug connections for covering frame
