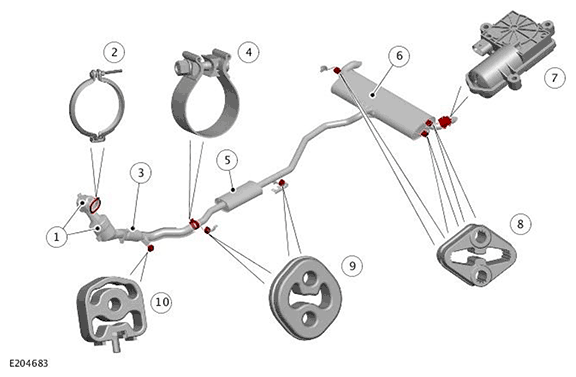

Component Location - 1 Of 2 - All Variant Vehicles
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
Catalytic converter |
| 2 |
Flange locking ring - Exhaust system to turbocharger |
| 3 |
Flexible coupling |
| 4 |
Clamp |
| 5 |
Center silencer |
| 6 |
Rear silencer |
| 7 |
Active exhaust actuator |
| 8 |
Mounting rubber (3 off) |
| 9 |
Mounting rubber (2 off) |
| 10 |
Hanger bracket mounting rubber |
