WM 4661IN Position Of Electric Parking Brake (EPB) Components (Except PANAMERA Executive, PANAMERA GTS, PANAMERA Turbo S, PANAMERA 4 Executive, PANAMERA Platinum Ed., PANAMERA 4 Platinum Ed.): Information
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
An electric parking brake is fitted on the rear axle of the Panamera models.

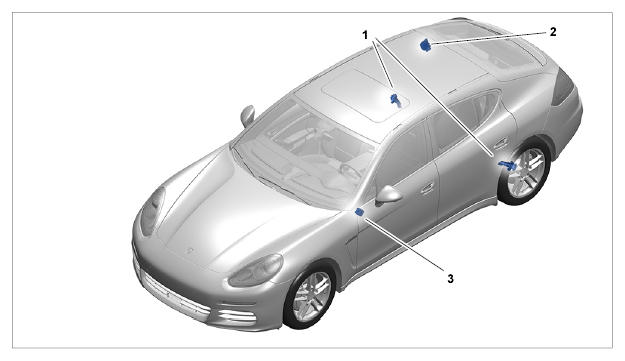

This transfers the driver's intent from the switch (actuator) -3- , via the control unit -2- and directly to the two actuators -1- at the rear axle.
| No. | Description of component | Number | Position |
|---|---|---|---|
| -1- | Actuator, one each on right/left | 1 each on right/left | Rear-axle wheel bearing housing, on right/left |
| -2- | Electric parking brake control unit | 1 | Luggage compartment, right |
| -3- | Switch (actuator) | 1 | Driver's side, on left below steering wheel |
