Removing upper part of center console cover

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
• Some steps must be carried out automatically  .
• Some of the repair illustrations show only one side of the vehicle  .

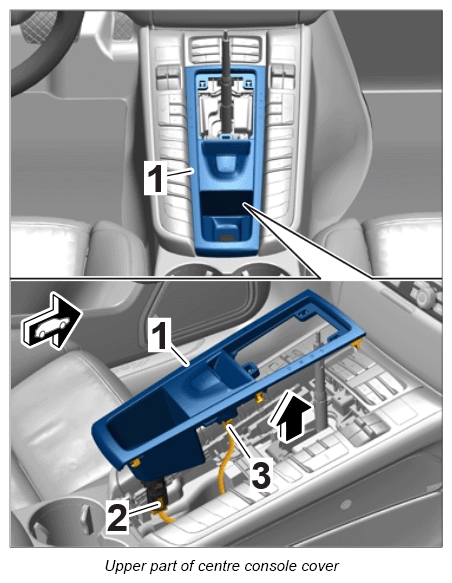

1. Unclip cover by pulling it up off the center console.
2. Release electric plug connection at the 12 V socket and disconnect it.
3. Release and disconnect electric plug connection on the parking brake controls.
4. Remove cover.
