Removing Centre Side Member

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

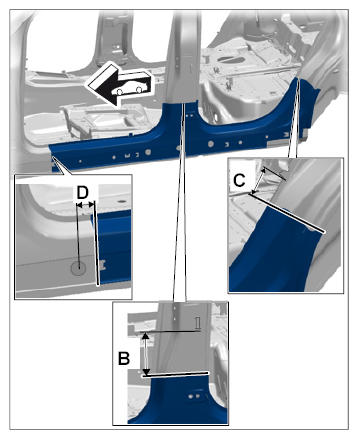

Mark cuts B, C and D  in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Fig 1: Identifying Centre Side Member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

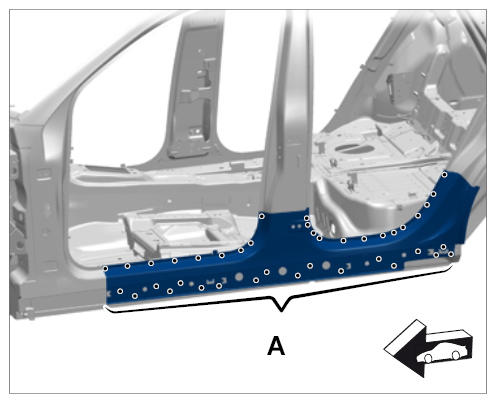

1. Drill out spotwelds using spotweld drill  .
   Fig 2: Identifying Centre Side Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Heat bonding areas.
   1. 2.1. Bend up edge of wheel arch -A-  .
   2. 2.2. Remove center side member.

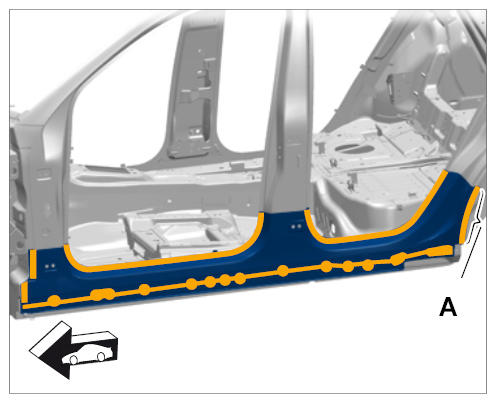

      Fig 3: Identifying Side Member

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
