Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic Value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

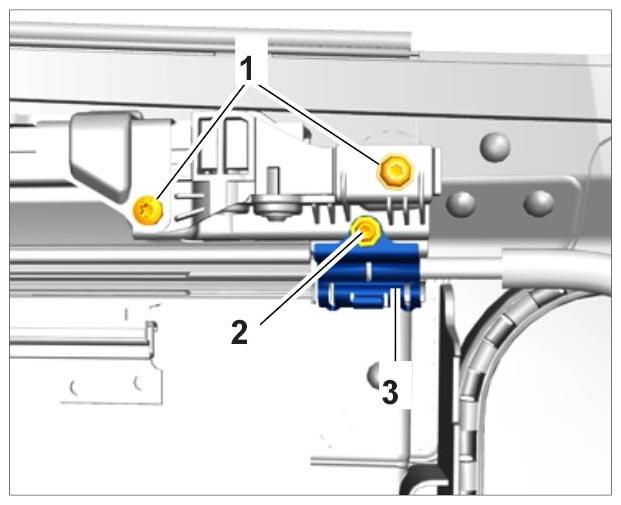

| Fastening Screw For Outer Front Mounting Unit | Item 1 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Front Mounting Unit |
|||||
| Fastening Screw For Inner Front Mounting Unit | Item 2 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Front Mounting Unit |
|||||

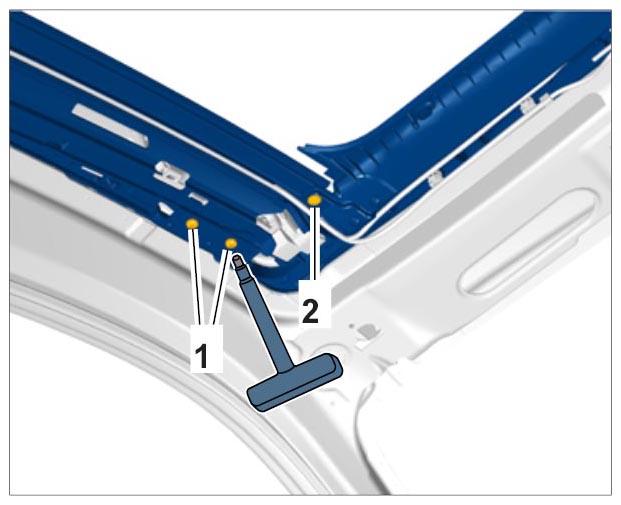

| Fastening Screw For Rear Mounting Unit | Item 1 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Rear Mounting Unit |
|||||
| Fastening Screw Securing Retaining Bracket To Guide Tube | Item 2 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Rear Mounting Unit |
|||||

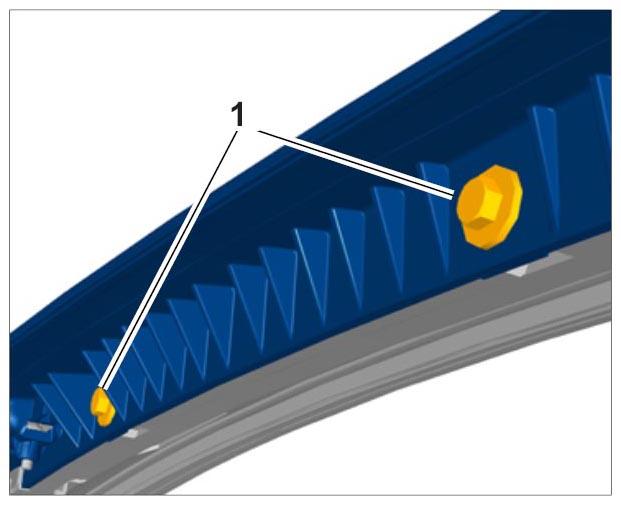

| Fastening Screw Securing Mounting Unit To Assembly Frame | Item 1 | Tightening Torque | 3 Nm (2 ft. lbs.) | ||
|
Assembly Frame Mounting |
|||||
