Adjusting The Vehicle Height/Correcting Wheel Load Differences

The effects of the high turning forces of the stabilizers can falsify the measurement.

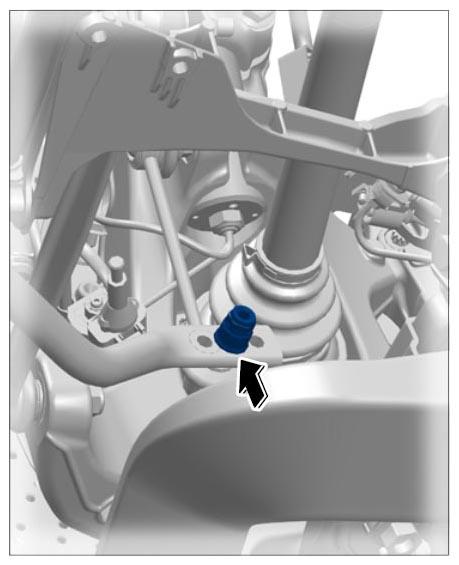

Fig 1: Locating Suspension/Stabilizer On Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Lock nut
2. Adjusting nut

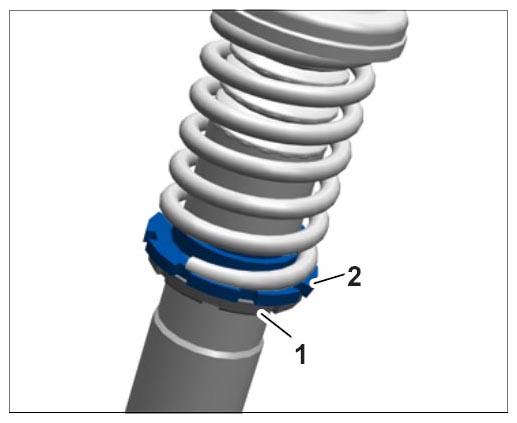

Fig 2: Identifying Adjusting Nut And Lock Nut (Front)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Loosen lock nut -1-  . Use a hook wrench or special tool hook wrench 9647  (hook wrench insert) for this purpose.
2. 2.2. Raise the vehicle at the jacking points until the wheels can turn freely.
3. 2.3. Turn adjusting nut -2-  to the right = vehicle higher - turn to the left = vehicle lower.
4. 2.4. Lower the vehicle onto its wheels (remove pit lifter).
5. 2.5. Compress (pull down) vehicle once and allow it to spring back freely. Then check the vehicle height and wheel loads.
6. 2.6. After you have adjusted the lock nut(s) -1-  on the front and rear axle, tighten with special tool hook wrench 9647  together with a torque wrench. Tightening torque = 50 Nm (37 ftlb).

1. Lock nut
2. Adjusting nut

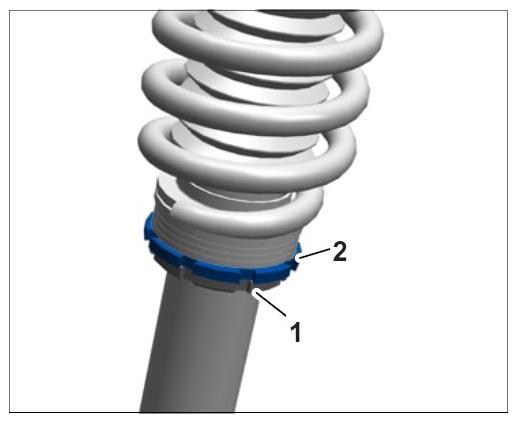

Fig 3: Identifying Adjusting Nut And Lock Nut (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Loosen lock nut -1-  . Use a hook wrench or special tool hook wrench 9647  (hook wrench insert) for this purpose.
2. 3.2. Raise the vehicle at the jacking points until the wheels can turn freely.
3. 3.3. Turn adjusting nut -2-  to the right = vehicle higher - turn to the left = vehicle lower.
4. 3.4. Lower the vehicle onto its wheels (remove pit lifter).
5. 3.5. Compress (pull down) vehicle once and allow it to spring back freely. Then check the vehicle height and wheel loads.
6. 3.6. After you have adjusted the lock nut(s) -1-  on the front and rear axle, tighten with special tool hook wrench 9647  together with a torque wrench. Tightening torque = 50 Nm (37 ftlb).

To ensure there is no tension, loosen the anti-roll-bar mount and rotate the anti-roll bar accordingly.
